001MA
Vertical Warehouse with Induced Motion for Smart Storage
Modular, automated, always in sync
Perfect for:
- Completely eliminate manual handling of the panels.
- Create an automatic buffer between welding and assembly.
- Manage doors and frames in vertical storage with order and safety.
- Optimising workflow in continuous or asynchronous systems
- Automate the retrieval of items to the workstations.
- Integrating a warehouse with Industry 4.0 principles.
Request the technical brochure now or speak with an expert.
Modular, automated, always in sync
The 001MA vertical warehouse by Graf Synergy is designed to eliminate manual handling of items and create a strategic buffer between production phases. Thanks to the induced motion, each compartment can be moved directly by the shuttle through mechanical coupling, allowing for smooth and controlled movement of the panels.
With 160 mm wide compartments featuring side rollers, inclined backrests at 8-10°, and a tip-over resistant structure, this is the ideal solution for optimising vertical space and managing storage intelligently and neatly.
5 reasons to choose 001MA
- Smart buffer for unsynchronized flows. It compensates for the lag between welding, glazing, and assembly through a modular storage system.
- Induced Motion Handling. Each compartment moves through a gear-pinion and belt coupling, controlled by the shuttle or a dedicated motor.
- Configurable Automatic Recall. Programmable system for retrieving a single frame, specific position, entire order, or complete kit.
- Vertical Protection and Order. Inclined side rails, lateral rollers, and an anti-tip frame ensure the stability and integrity of the panels.
- Highly modular and customizable. Configurable with 160 or 200 mm carpets, bilateral induced motion, or compartments with electric gear motors.
Product Details
The 001MA vertical warehouse by Graf Synergy is designed to eliminate manual handling of items and create a strategic buffer between production phases. Thanks to the induced motion, each compartment can be moved directly by the shuttle through mechanical coupling, allowing for smooth and controlled movement of the panels.
Sizes
Length: 4,300 mm
Width: 2,400 mm
Height: 3,400 mm
Weight: 2.400 kg
Performance
Required operators: 1
Working frame length: 2800 mm
Working width: 1400 mm
POWER SUPPLY and Consumption
Installed power: 3 kW
Power Supply: 400 V
Air consumption: not applicable
Operating pressure: not required
Supported features and processes
- Vertical storage of doors, frames, and windows
- Automatic retrieval of frames based on kit or location
- Mechanical coupling with shuttle for handling
Structure composed of:

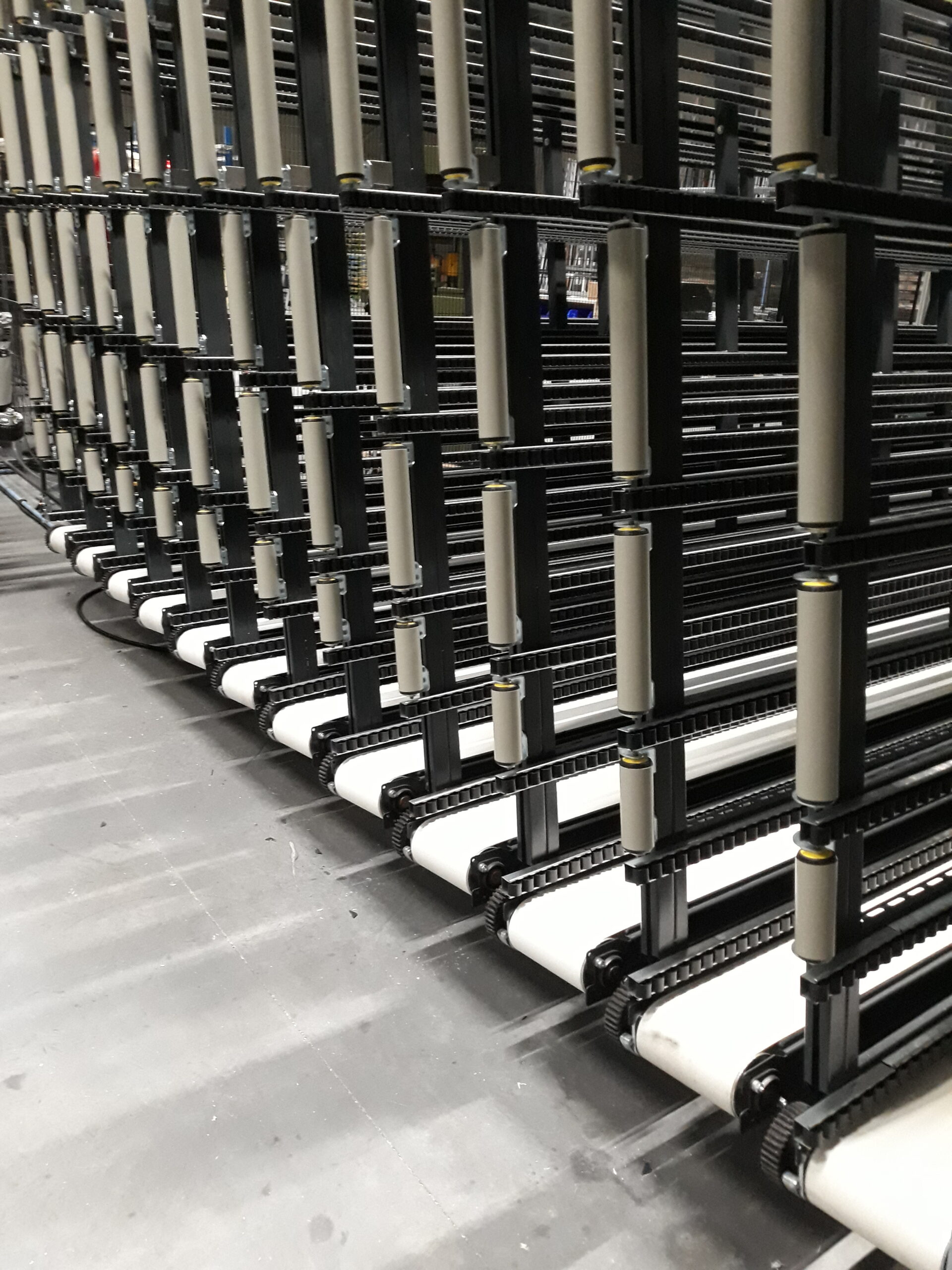

- 160 mm rooms with side rollers
- Anti-tip frame in the first compartment
- Inclined vertical wall bars at 8-10°
- Arms with brushes for safe driving
Optional features and available configurations
- Compartment with a 200 mm carpet
- Induced motion on both sides of the module
- Single compartment with carpet and electric gear motor with inverter (160 or 200 mm)
These configurations allow the warehouse to be adapted for high-volume operations and complex layouts.
TECHNOLOGY AND AUTOMATION
The 001MA system utilises mechanical coupling between the shuttle and module through a pinion and gear to activate the induced motion. With inverter control capabilities, line supervisor management, and integration with ERP systems, it is a key component for Industry 4.0 lines. It enables predictive and just-in-time management of storage, reducing bottlenecks and increasing efficiency.
Contact us to find out if the 001MA is the right solution for your production.
