001SP
Roller conveyor with vertical backrest for logistics and window frame storage
Simple, modular, essential
Perfect if:
- Integrating a roller conveyor into an automated or manual line.
- Manage finished doors and frames vertically
- Reduce costs with a simple and robust solution.
- Improve production flow with intermediate stations.
- Customize the roller step and the backrest according to the layout.
- Have a ready-to-use structure that is easy to install.
Request the technical brochure now or speak with an expert.
Simple, modular, essential
The 001SP roller conveyor is the ideal foundation for any logistics line or production facility that requires the orderly movement and management of doors, frames, or finished windows. With its painted steel structure, vertical backrest with swivel wheels, and 200 mm rollers, it ensures stability and smooth operation while taking up minimal space.
Modular and customizable, it is perfect as a collection point, transit area, or intermediate storage.
5 reasons to choose 001SP
- Simple, efficient, cost-effective structure. Made from welded and painted steel, it ensures long-lasting durability and requires no maintenance.
- Total modularity. Available in lengths from 1 to 3 meters, with heights from 2 to 3 meters. Easy to adapt to your setup.
- Vertical wall bars with protective features. Equipped with 5 slats with swivel wheels and corner protection profile: your pictures will always stay aligned and protected.
- Optional for every need. Reduced roller pitch, extra rollers of 200/500 mm, manual/automatic rotation, anti-fall system.
- Also available with motorisation. Version with rubber rollers and autonomous movement on tracks: perfect for advanced systems.
Product Details
001SP is designed for the smooth movement and storage of windows, frames, or doors.
Sizes
Length: from 1,000 to 3,000 mm*
Width: 750 mm
Height: from 2,000 to 3,000 mm*
Weight: from 70 to 140 kg*
(*based on the selected version)
Performance
Operators required: 1
Working Length: 2800 mm
Working width: 1500 mm
POWER SUPPLY and Consumption
Installed power: not required
Nutrition: not included
Air Consumption: not applicable
Operating pressure: not required
Supported features and processes
- 200 mm steel roller base
- Vertical wall bars with caster wheels
- Corner edge protectors
Optional available
- Reduction of the spacing between rollers to 100 mm

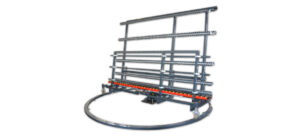

- Manual/Automatic Wall Bar Rotation Kit
- Rail translation kit
- Fall protection system for panels
- Additional roll available in 200 or 500 mm
Available variants:
- 001SP30: 3,000 x 2,800 mm
- 001SP36: 3,600 x 2,800 mm
- 001SP40: 4,000 x 2,800 mm
- 001SP50: 5,000 x 2,800 mm
- Motorized version with rubber rollers and a 3-meter track
TECHNOLOGY AND AUTOMATION
The basic version is completely passive and does not require power. However, in the motorized version, the 001SP can be integrated into automated lines with autonomous movement and logical controls. It is also an ideal solution for Industry 4.0 lines that require dynamic buffers or motorized intermediate stations.
Contact us to find out if the 001SP is the right solution for your production.
