004NV
Motorized Vertical Shuttle for Glazing and Assembly Lines
Maximum speed, minimum complexity
Perfect if:
- Automate the vertical movement of window frames.
- Minimise clutter while maintaining efficiency.
- Optimize the workflow between glazing and hardware installation.
- Minimise maintenance with a simple structure.
- Enhancing operational safety during transportation
- Easily integrate the system into existing layouts.
Request the technical brochure now or speak with an expert.
Maximum speed, minimum complexity
The 004NV shuttle is a high-performance solution for the vertical handling of single or paired panels and frames within automated systems. Designed to optimise the transfer of elements between glazing and assembly stations, it combines a compact structure with a high mission speed of up to 2 m/s, thanks to its brushless system with crown/chain transmission.
Its fixed 8° tilt ensures load stability during transport, while the simplified design reduces management and maintenance costs.
5 Reasons to Choose 004NV
- Superior speed in tight spaces. Brushless system with direct mechanical transmission that enables quick and precise movements (up to 2 m/s).
- Always Active Safety. Front anti-fall protections and vertical side rollers ensure a safe passage even in the event of an emergency stop.
- Low Operating Costs. Essential mechanical design and efficient engines for economical and sustainable management.
- Smooth and Stable Movement. Wheeled surface and an 8° inclined structure for optimal support of the elements.
- Maximum format adaptability. Available in various versions (up to 5,000 mm in square length) to meet every production requirement.
Product Details
004NV is designed to safely move doors and frames within automated lines, ensuring stability and precision.
Sizes
Length: 1,900 mm
Width: 3,600 mm
Height: 3,000 mm
Weight: 900 kg
Performance
Average cycle time (loading + transport + unloading): 30 sec*
Translation Speed: up to 2 m/s
Operators required: 1
(depends on the line length)
POWER SUPPLY and Consumption
Installed power: 9 kW
Voltage: 400 V
Air consumption per cycle: 50 NI/min
Operating pressure: 7 bar
Manageable profiles (frame sizes)
Maximum length: 1,400 mm
Max width: 2,800 mm
Max thickness: 130 mm
Supported features and processes
- Conveyor belt with inverter for dynamic adjustment
- High-capacity surface with crazy wheels
- 4 wheels on floor tracks for linear movement
- Vertical rollers for centering
- Front protection barriers to prevent falls
Optional features and available configurations
The 002NV is highly customizable based on production layout and handling requirements. Among the options available:

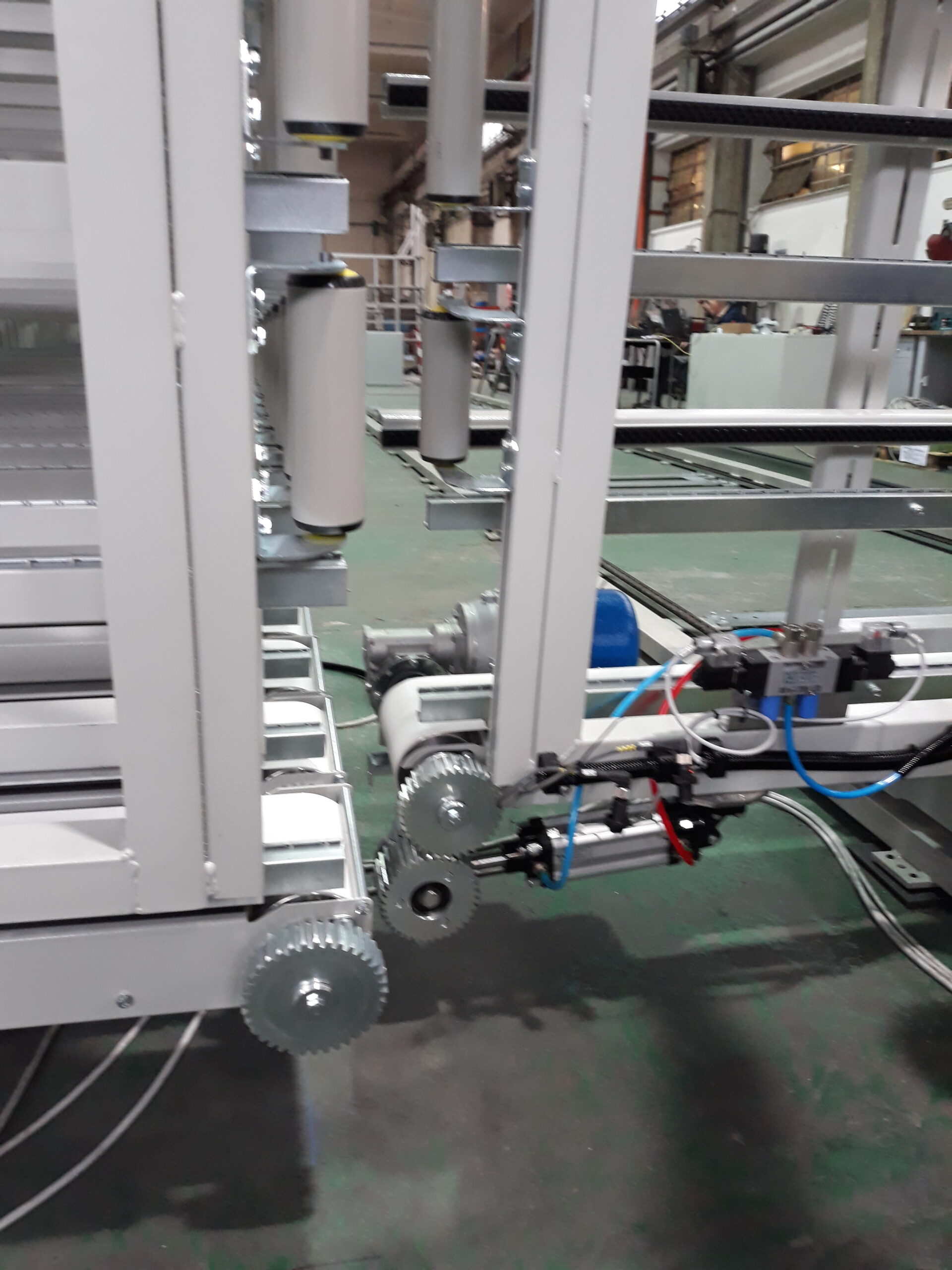

- Rack and pinion system for driving the warehouse conveyors
- Integrated panel handling straps
- Alternative versions of useful format:
- 004NV36: 2,800 x 3,600 mm
- 004NV40: 3,200 x 4,000 mm
- 004NV50: 3,200 x 5,000 mm
These variants make the shuttle suitable for complex systems or non-standard handling requirements.
TECHNOLOGY AND AUTOMATION
Thanks to its optimised mechanical architecture, the 004NV offers a robust and straightforward solution for automated vertical handling. The asynchronous motors with inverters allow for precise speed adjustments, making the system compatible with Industry 4.0 standards. The system can be integrated with line management and supervision software for real-time production tracking and coordination.
Contact us to find out if the 004NV is the right solution for your production.
