ASG-E
Automatic work and screwing centre for reinforced PVC profiles
Maximum precision and automation in reinforcement processing: the only CNC centre designed for PVC profiles with pre-inserted metal reinforcement.
Perfect if…
- You need to work with PVC profiles that already have metal reinforcement installed.
- Do you want to eliminate manual fastening errors?
- You need a compact machine that can be integrated into a production line.
- Are you looking for complete control over fastening parameters?
- Do you want to minimise machine downtime caused by chips?
- Do you want to increase the number of pieces per shift while maintaining maximum accuracy?
Request the technical brochure now or speak with an expert.
Maximum precision and automation in reinforcement processing: the only CNC centre designed for PVC profiles with pre-inserted metal reinforcement.
ASG-E is the first CNC machining centre on the market capable of performing screw fastening and drilling on PVC profiles with pre-inserted metal reinforcement, offering an unprecedented level of automation, precision, and versatility.
Designed to drastically reduce labour and increase efficiency, it integrates fully configurable smart modules for screwing and drilling.
Thanks to its compatibility with GRAF Synergy lines, it fits perfectly into both standalone productions and automated workflows. It’s ideal for those looking to eliminate rework, avoid human errors, and boost productivity with just one operator.
5 Reasons to Choose ASG-E
- Total precision, even with reinforcements already in place. The only machine designed to work with pre-reinforced profiles, without compromising on quality.
- Comprehensive Digital Control of Screw Driving. Automatic management of position, depth, torque, and speed: zero errors, zero rework.
- High-Performance Brushless Screwdrivers. Fast, quiet, and energy-efficient: they operate alternately or simultaneously to optimise every cycle.
- Integrated chip-breaking system. Prevents jams and machine stoppages: smoother operation, less waste, maximum operational continuity.
- Flexible integration in every production line. Usable both in standalone mode and connected to any GRAF Synergy cutting/work centre.
Product Details
The ASG-E offers a comprehensive range of processing for reinforced PVC profiles, featuring fully automated cycles thanks to separate modules and independent movements on the X and Y axes. The brushless screwdriver ensures precise insertions, while the high-speed chucks perform flawless drilling.
Sizes
Length: 2,400 mm
Width: 9,300 mm
Height: 2,000 mm
Weight: 1.450 kg
Performance
Productivity: up to 200 square meters / 8 hours (depending on profile and processing)
Operators required: 1
POWER SUPPLY and Consumption
Installed power: 5 kW
Power supply voltage: 400 V
Minimum pressure: 7 bar
Air consumption per cycle: 800 Nl/min
Workable profiles
Length: 300 / 3,500 mm (up to 6,000 mm available upon request)
Width: 40 / 130 mm
Height: 40 / 130 mm (up to 180 mm upon request)
Supported features and processes
Main Processes:

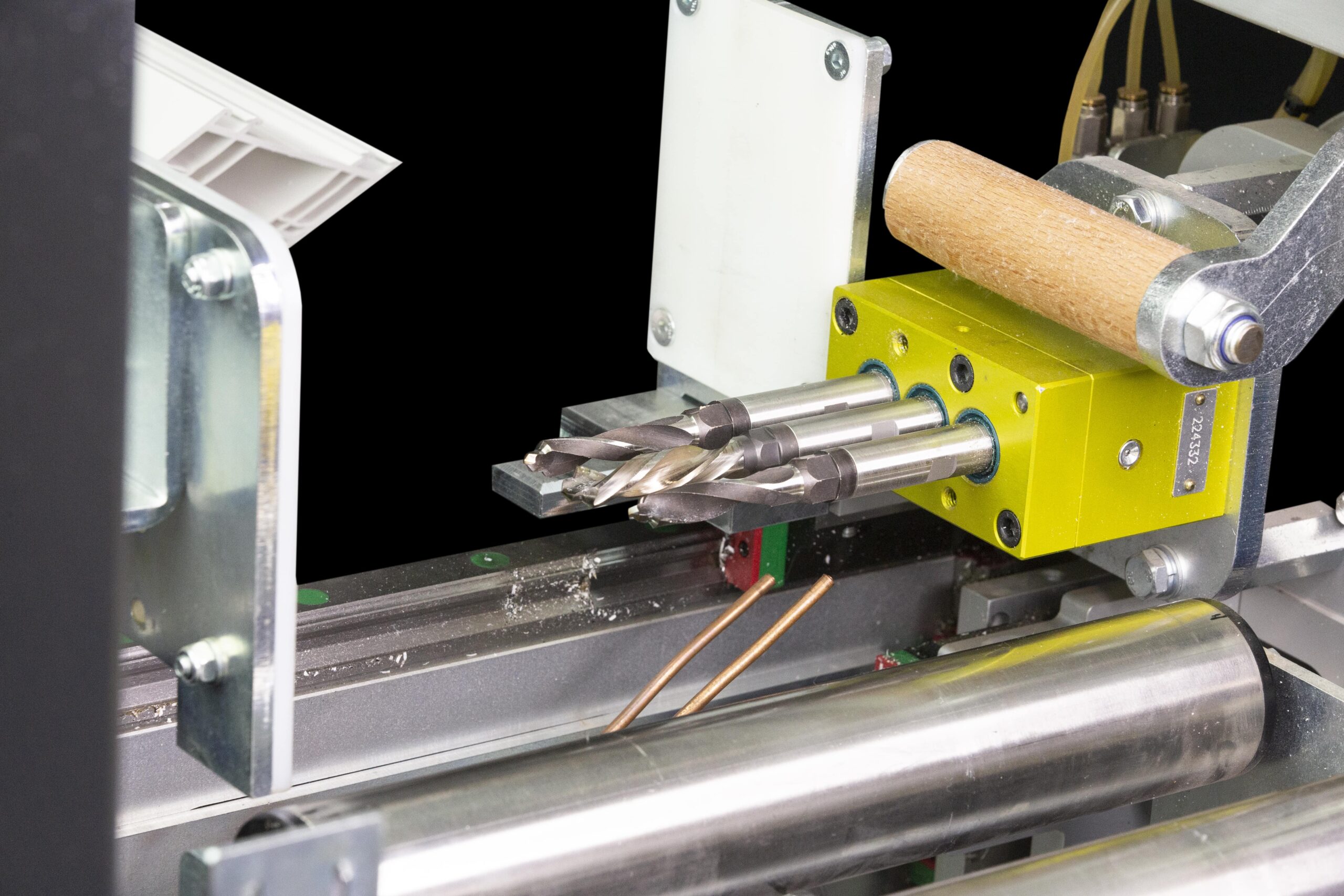

- Triple hole handle in standalone mode or can be integrated into a GRAF Synergy automated line.
- Reinforcement fastening
- Wall mounting holes
- Cross holes
Optional and configurations
The ASG-E is designed to meet every production need. Upon request, it can be equipped with:
- Connection to automatic tables and Barcode Reader
- 2 additional screwdrivers with automatic distance adjustment
- Motorized unloading table with output on the opposite side
- Single drill for wall/through holes
- Misaligned vertical tools for angled holes
- Tool with a triple hole revolver handle
- Hinge hole tool
- Extension length up to 6,000 mm, height up to 180 mm.
Advanced technology and automation
ASG-E integrates an intelligent control system through proprietary software, allowing the operator to intuitively and securely manage every parameter. The positioning of the profiles is ensured by prismatic guides with centesimal magnetic reading.
The entire line is compatible with Industry 4.0 and equipped for remote assistance and IoT connections.
