BFB 1000 S
Multi-functional workbench for mounting hardware on PVC, Wood-Aluminium, and Aluminium frames.
Maximum efficiency in hardware assembly: precise, versatile, intuitive
Perfect if you want…
- Reduce the installation time of hardware on any fixture.
- Accurately drill hinge holes, handle holes, and make Italian-style cuts.
- Working in ergonomics through the tilt of the work surface.
- Avoid scratches and wear on profiles during processing.
- Integrate specific options to enhance efficiency and productivity.
Request the technical brochure now or speak with an expert.
Maximum efficiency in hardware assembly: precise, versatile, intuitive

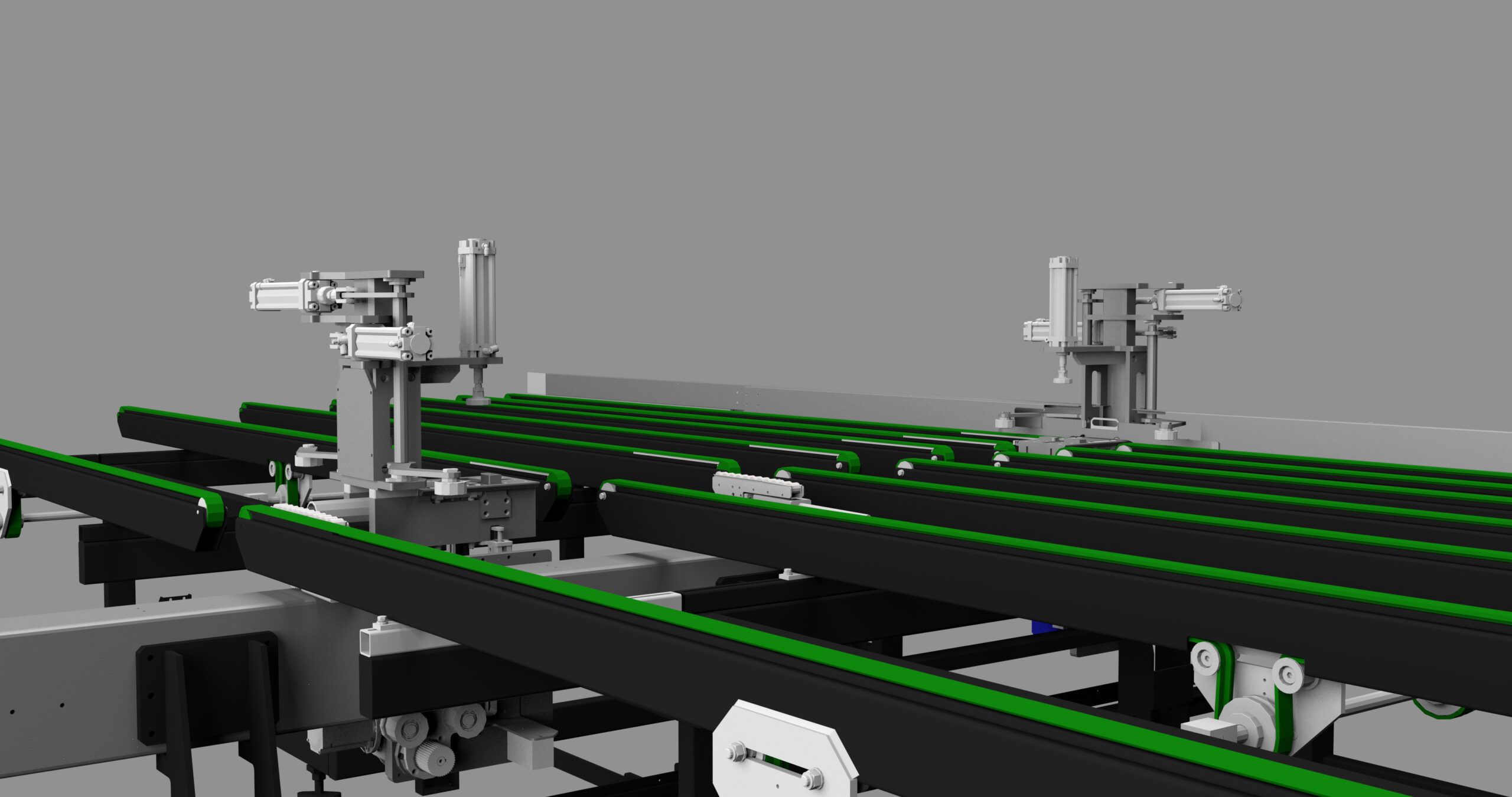

The BFB 1000 S is the multifunctional assembly bench by GRAF Synergy, designed to optimise the complete assembly of perimeter hardware on PVC, Aluminium, and Wood-Aluminium frames. With its robust steel structure, pneumatic leaf locking, and a scratch-resistant work surface, it enables quick, safe, and repeatable operations.
The bench features pneumatic tilt adjustable from 0° to -14°, a direct measurement system for cutting tools and equipment on linear guides with ball recirculation, ensuring high precision for all operations: hinge holes, handle holes, and Cremonese cuts. Customisable with numerous options, it is perfectly suited for both craft workshops and industrial settings.
5 Reasons to Choose BFB 1000 S
- Maximum operational versatility. Suitable for PVC, Aluminium, and Wood-Aluminium frames, with configurable tools for every production requirement.
- Quick and error-free assembly. Pneumatic locking, reinforced rotary stops, and high-precision linear guides for repeatable results.
- Pneumatically adjustable incline. Adjustment from 0° to -14° to enhance ergonomics and accessibility during assembly.

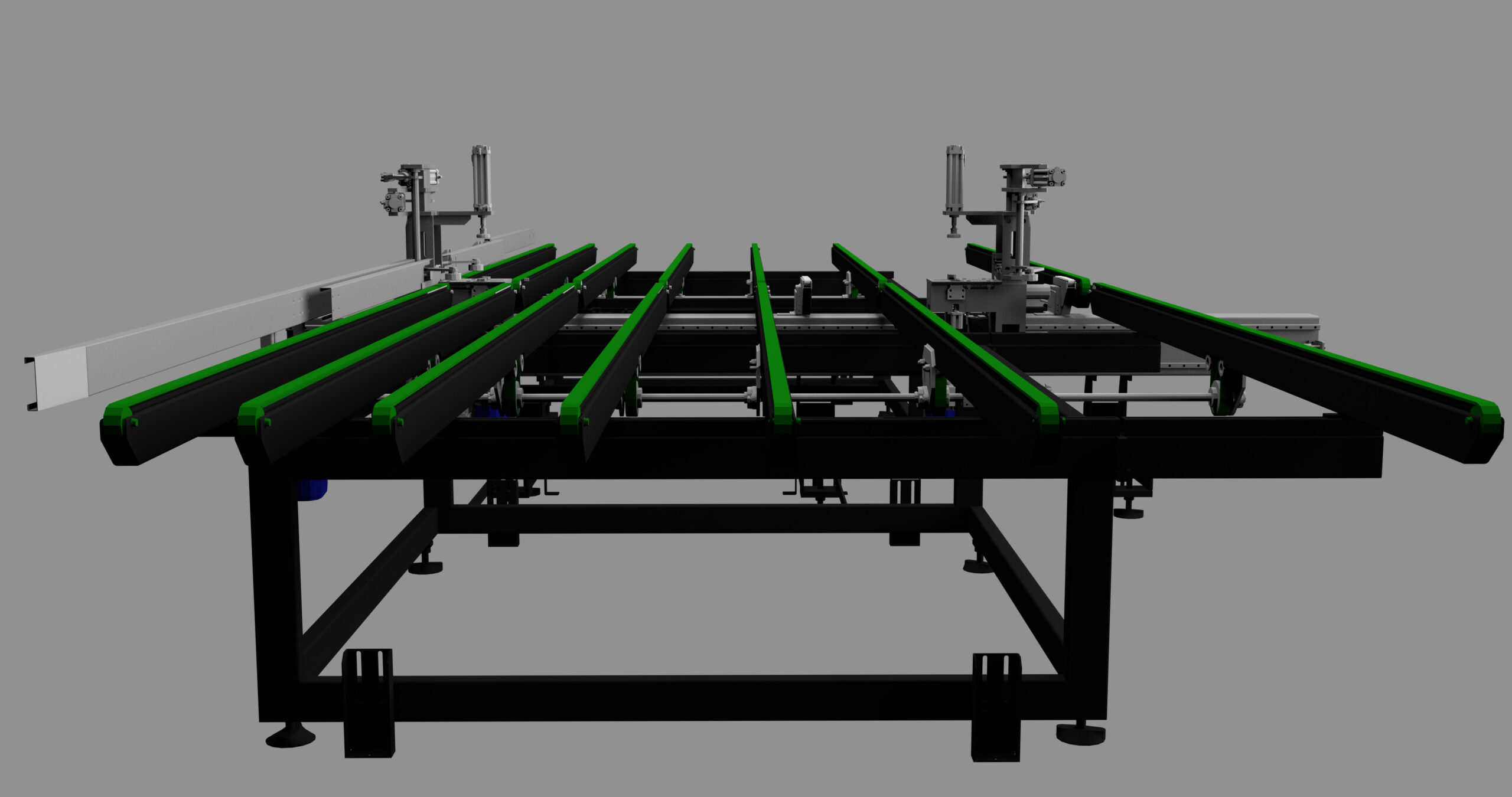

- Sturdy structure and scratch-resistant surface. Welded bar top coated with wear-resistant material, perfect for heavy-duty tasks.
- Compact yet highly efficient. At just 3.27 meters long, it delivers high performance even in limited production spaces.
Product Details
The BFB 1000 S quickly and accurately performs all the necessary operations for installing perimeter hardware.
Sizes
Length: 3.275 mm
Width: 1,670 mm
Height (adjustable): 920 to 1,020 mm
Weight: 380 kg
Performance
Required Operators: 1
Operation: Assisted manual
Usable frame sizes:
Min: 400 x 400 mm
Max: 98.4 x 98.4 inches
POWER SUPPLY and Consumption
Installed power: 0.2 kW
Voltage: 230 V (only with the glass stop measurement kit)
Minimum operating pressure: 7 bar
Air consumption per cycle: 14 Nl/min
Supported features and processes
- Three-point handle drilling
- Hinge mounting holes, both vertical and angled
- Tool Cutting (Cremonese)
- Adjustment of Position and Hole Spacing
Optional features and available configurations
To meet every production requirement, the workbench can be equipped with:
- Hydraulic Pneumatic Punching Machine for Tool Cutting
- Automatic screwdrivers with laser pointer (manual or automatic lifting)
- Two-Pin Hinge Drilling Unit
- Integrable Tool Warehouse
- Glazing Measurement Kit
