CUT 3B
CNC cutting center with 3 blades for PVC windows
Maximum productivity and precision in a single industrial cutting machine
Perfect for:
- Window manufacturers producing up to 500 windows a day
- Who wants to optimise every cut bar with advanced software?
- Production departments seeking speed without compromising quality
- Companies that work with profiles featuring complex or non-standard sections
- Who aims for full automation of the cutting cycle?
Request the technical brochure now or speak with an expert.
The power of three synchronized blades for continuous and precise cuts.
The CUT 3B is a 6-axis CNC cutting centre designed to ensure extremely high levels of productivity when processing PVC profiles, including those with seals.

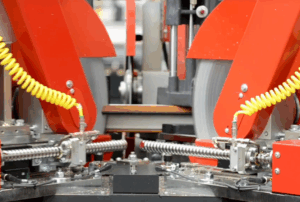

Equipped with a cutting module featuring three independent and synchronized blades of Ø 550 mm, it ensures precise cuts at -45° / 90° / +45°.
The system consists of an automatic loading warehouse (up to 8 bars) with a CNC clamp featuring linear motors and precise centesimal position reading.
The discharge module is belt-driven with a safety photocell and has a capacity of up to 15/20 pieces.
Why choose the CUT 3B?
- Extreme speed and total synchronization. Three independent blades powered by brushless motors for a continuous and fast cutting cycle.
- Advanced precision on every profile. Automatic alignment system for bars and CNC clamps with hundredth-of-a-millimetre reading on magnetic tape.
- Real savings with every cycle. The GRAF Synergy software optimises lists by reducing material waste and increasing efficiency.
- Total automation of the flow. From the warehouse to the unloading table, every stage is automated to eliminate downtime and delays.
- User-friendly and customizable interface. The system is designed for intuitive and quick use, with options for customization and 4.0 integration.
Product Details
The CUT 3B performs quick and precise cuts on PVC profiles, including those with seals, at angles ranging from -45° to +45°.
The 6-axis CNC system ensures maximum control over cutting geometry, even on complex sections.
The automatic linearization of the bars enhances the quality of the final result.
Sizes
Length: 16,000 mm
Width: 3,000 mm
Height: 2,400 mm
Weight: 2.500 kg
Performance
Up to 500 windows in 8 hours (1 panel)
Strongly required operators: 1
POWER SUPPLY and Consumption
Installed power: 14 kW
Voltage: 400 V
Minimum pressure: 7 bar
Air Consumption: 200 Nl/min
Workable profiles
Length: 700 to 6,500 mm (minimum 400 mm available upon request)
Width: 40 to 130 mm
Height: 40 to 180 mm
Optional features and available configurations
The cutting centre can be enhanced with a range of accessories and advanced software:
- Fly Optimizer: bar waste optimization for reducing scrap
- STATS: production data analysis for continuous monitoring
- Recover Option: reinsert incorrect items into new lists
- Soundproof Booth: custom-made for noise reduction
- Motorized unloading table with opposite side outlet
- Automatic or manual labeler
- Laser for marking profiles (single or double)
- NRT 500 / NRT-CP Chip Conveyor
- 2-Bag Vacuum Cleaner, 4 Outputs Ø 100 (Model D4)
- Preparation for connection with ASG-E screw fastening centres
- Customizations upon request for non-standard profiles
Advanced software and Industry 4.0 integration
The CUT 3B management software allows for the automatic import of cutting lists and cycle optimisation. Integratable into smart factory systems, it supports statistical analysis, waste reuse, error management, and customisation for different profile types.
Maximise every bar, automate every cut: request a demo or technical consultation for the CUT 3B now.
