CUT 500
Compact and versatile automatic CNC cutting center
Quick, precise, and fully automatic cutting, even in tight spaces.
Perfect for:
- Companies looking to automate cutting with minimal investment.
- Productions that seek reliability and precision in every bar.
- Joiners who work with PVC profiles, including those with seals.
- For those who want a compact yet comprehensive system.
- Departments focused on digitalization and production control
Request the technical brochure now or speak with an expert
Maximum autonomy for an optimized cut
The CUT 500 is a compact CNC cutting centre with 1 or 2 controlled axes (depending on the configuration), designed to autonomously perform all cutting operations on PVC profiles: loading, alignment, cutting, and unloading.

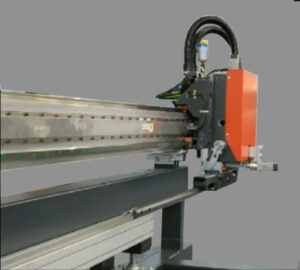

Thanks to an upward blade with a diameter of 500 mm, a brushless motor pusher on a rack, and advanced optimisation software, the system ensures consistent precision and smooth management of production lists.
Why choose the CUT 500?
- Compact yet comprehensive. It takes up little space but includes all the functions of an advanced cutting centre.
- Smart Optimization. Reduces waste with GRAF Synergy software and the Fly Optimizer option.
- Guaranteed Precision. Automatic alignment system to straighten bars that are not perfectly straight.
- Intuitive Interface. Easy cycle management through software with a user-friendly menu.
- High resale value. Thanks to its sturdy construction and cutting-edge technologies.
Product Details

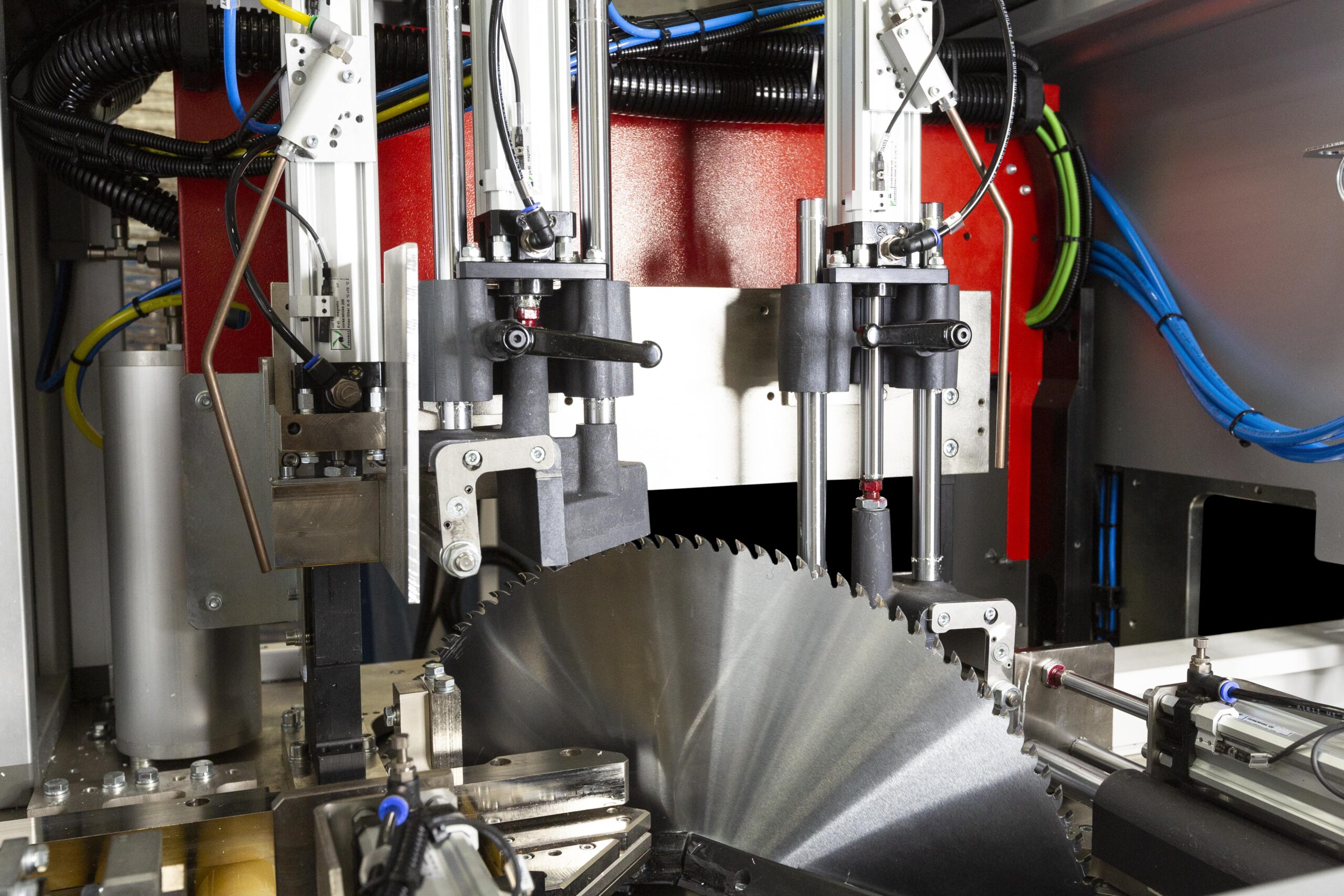

Quick and clean cuts at -45° / 90° / +45° on PVC profiles, even with seals, thanks to the high-precision upward blade.
The process is fully automated: loading bars, pushing, cutting, and unloading.
Sizes
Length: 13,000 mm
Width: 2,800 mm
Height: 2,000 mm
Weight: 2,000 kg
Performance
Up to 300 windows/8h (1 panel)
Operators required: 1
POWER SUPPLY and Consumption
Installed power: 7 kW
Voltage: 400 V
Minimum pressure: 7 bar
Air consumption: 200 Nl/min
Workable profiles
Length: 500 to 6,500 mm (optional from 400 mm)
Width: 40 to 130 mm
Height: 40 to 135 mm
Optional features and available configurations
The CUT 500 can be configured with various accessories to meet specific production needs:
- Fly Optimizer: automatic reuse of offcuts
- Blade Ø 550 mm with pressure kit for profiles up to 180 mm
- Brushless motor for blade rotation with intermediate angles
- Manual Labeler
- Width and Height Profile Control Sensors
- Horizontal Morse system for sections up to 230 mm
- Chip conveyor and vacuum with 2 bags
- Discharge Plan Extension
- Connection setup for 1 or 2 ASG-E
- Bar loading system from 400 to 700 mm
Accessible technology and digital control
The CUT 500 management software enables complete control of the cycle and optimises the lists. The system is ready for the digitalisation of the production department, offering efficiency, savings, and traceability.
Make profile cutting a smooth and automated process: contact us now for a demo of the CUT 500.
