Dynamic table
Automated connection unit for PVC window frame lines with metal reinforcement
Maximise productivity, eliminate waiting times, and synchronise machines.
Perfect if:
- Do you want to automate the connection between multiple machines with independent power supply?
- You must insert metal reinforcements without any errors or omissions.
- You need to optimize the space and work in a U or Z configuration.
- Are you looking for a solution that manages bidirectional loading and unloading?
- Do you want to integrate smart buffers to prevent machine downtime?
Request the technical brochure now or speak with an expert.
Optimize the space and productivity of your line with an intelligent bar handling system, perfect for the continuous feeding of the screw driving centre.

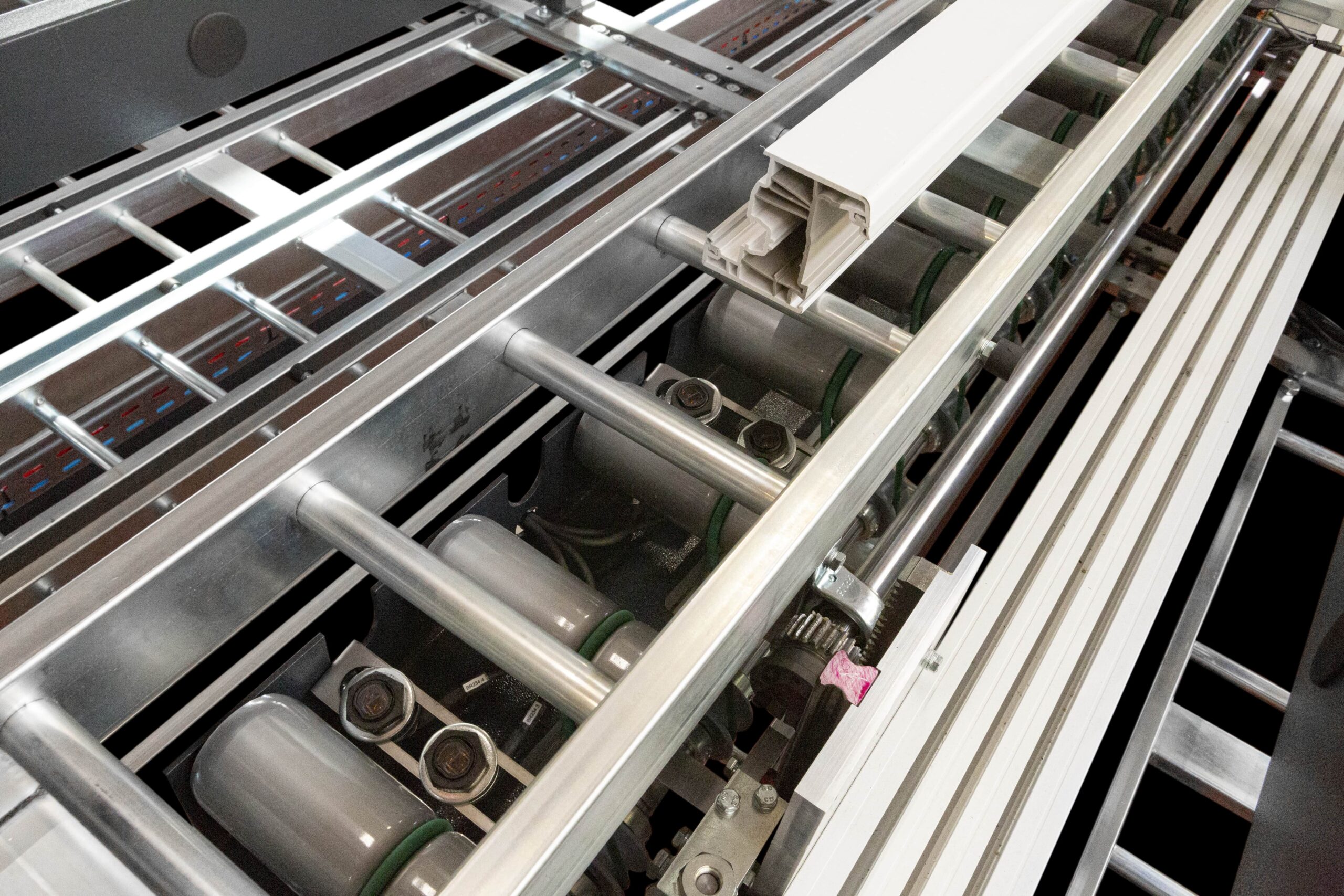

The Dynamic Table is a modular connection unit designed to fully automate the advancement of profiles towards the ASG-E screw fastening centre. Thanks to the system with autonomous handling trays, each bar advances only when completed, ensuring a constant and uninterrupted flow.
Ideal for production lines that work with PVC and iron in parallel, the Dynamic Table also serves as a buffer, synchronising multiple machines in U or Z configurations without dependency constraints.
The ideal solution for those looking to eliminate bottlenecks in the production process, maintain high productivity, and reduce machine downtime.
5 reasons to choose the Dynamic Table
- Dual function: buffer + docking station. Each bar moves independently only when ready: no more empty spaces, maximum efficiency between connected machines.

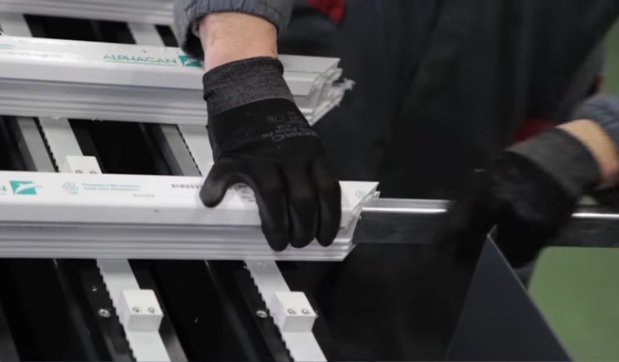

- Smart Reinforcement Detection. The system identifies whether metal reinforcement is necessary, indicates its size and code, and halts progress until the correct installation is completed.
- Connection Versatility. It can connect multiple machines, even with exhausts in opposite directions and custom layouts (U-shaped or Z-shaped).
- Completely customisable. Adjustable in length, width, number, and type of trays to meet any production requirement.
- Continuous Efficiency. It reduces downtime between phases, prevents stoppages, improves flow, and perfectly synchronises the rhythms of the line.
Product Details
Optimize the space and productivity of your line with an intelligent bar handling system, perfect for the continuous feeding of the screw fastening centre.
Sizes
Length: 8,000 mm (extendable up to 14,000 mm with optional modules)
Width: 2,500 mm (also available in a 4,000 mm version)
Height: 800 – 1,000 mm (adjustable)
Weight: 3.200 kg
Performance
Productivity: it depends on connected machines
Operators required: 1
power supply and Consumption
Installed power: 2.2 kW
Voltage: 400 V
Air consumption per cycle: 180 Nl/min
Minimum operating pressure: 7 bar
Workable profiles
Length: from 500 to 5,000 mm
Height: from 130 to 180 mm (varies depending on the type)
Supported features and processes

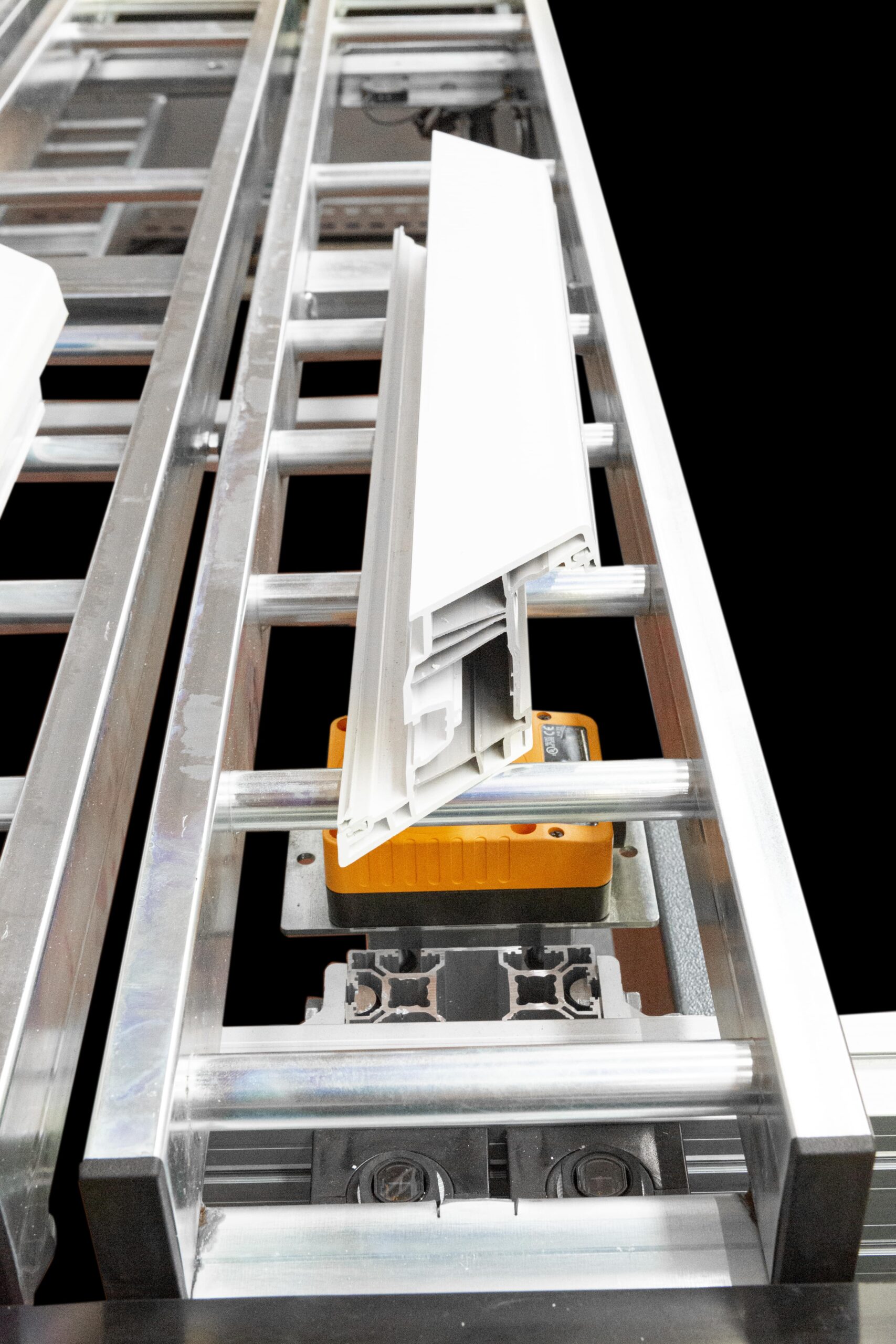

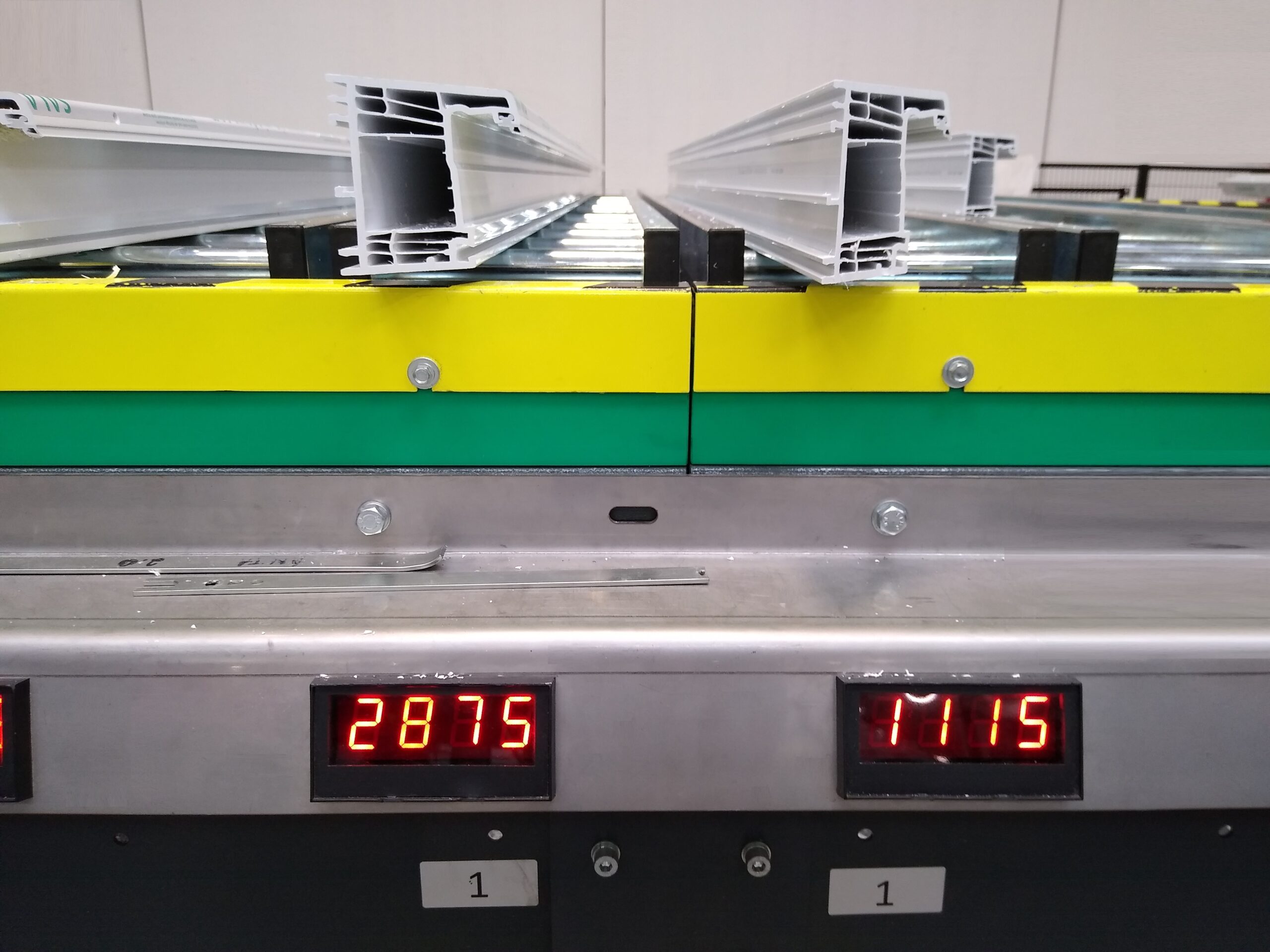

The Dynamic Table stands out for its operational intelligence in managing the advancement of the bars based on the actual state of processing. Each tray is equipped with autonomous movement, a dedicated display, and detection sensors for the presence and size of the metal reinforcement.
Main Processes
- Single bar automatic advancement
- Presence detection reinforcement
- Progress block in the absence of reinforcement
- Identification of size and iron code
- Bar residue management
Optional and configurations
Extremely modular, the Dynamic Table adapts to any production layout, offering a wide range of customizations:
- Additional modules from 2,000 mm for extension up to 14,000 mm
- 200 mm Steel Trays (available in both widths: 2,500 mm and 4,000 mm)
- Width configuration 4,000 mm for higher load requirements
- Integration with automated rollers for aligning and restocking bars
TECHNOLOGY AND AUTOMATION
Equipped with smart sensors and dedicated displays, the Dynamic Table represents a fully integrable system within an automated line. Ideal for feeding the ASG-E centre, it synchronises with the speed of the line, preventing machinery jams in case of misalignment.
Compatible with the principles of Industry 4.0, it can be equipped with systems for remote monitoring and interfacing with management software.
Contact us to find out if the dynamic table is the right solution for your production.
