F 16
Automatic drilling machine for hinges on PVC frames
Precise post-welding drilling with automatic internal reference
Perfect if…
- You need to punch frames of various sizes quickly and accurately.
- Do you want to automate the hinge assembly phase?
- You have limited space available in the workshop.
- Are you looking for a counter that requires only one operator?
- Do you want to reduce errors and rework after welding?
Request the technical brochure now or speak with an expert.
Automatic internal reference for precise post-welding drilling
The F 16 from GRAF Synergy is an automatic machine designed to optimise the drilling phase of PVC frames, making it the ideal solution for companies seeking consistent precision, automatic cycles, and ease of operation.
Designed for processing frames of any size, it automatically drills hinge holes after welding, utilising an innovative measuring system for the glass stop groove to ensure perfect alignments.
Equipped with automatic depth adjustment and cycle end zeroing, the bench ensures consistent results on PVC+Steel profiles.
Its compact design, combined with a user-friendly interface and pneumatic clamp, makes it a reliable tool even in tight spaces.
5 reasons to choose the F-16
- Sturdy and Compact Structure. This workbench is made from electro-welded steel, designed to withstand the test of time and fit into production environments with limited space.
- Fully Automatic Drilling Cycle. The entire process is automated: from the positioning of the drilling heads to depth management, all the way to zeroing at the end of the operation.
- Precision on every frame thanks to the internal reference. Intelligent automatic measuring system for the glass stop groove, ensuring accurate drilling for any profile size.
- Quick and Intuitive Program Change. User-friendly digital management for swiftly adjusting drilling settings, reducing setup times.
- Spacious workbench and simplified maintenance. A large work surface ideal for hinge assembly and a structure that requires minimal maintenance.
Product Details
The F 16 bench is specifically designed for drilling PVC frames, creating holes for hinges after welding, fully compatible with steel-reinforced profiles.

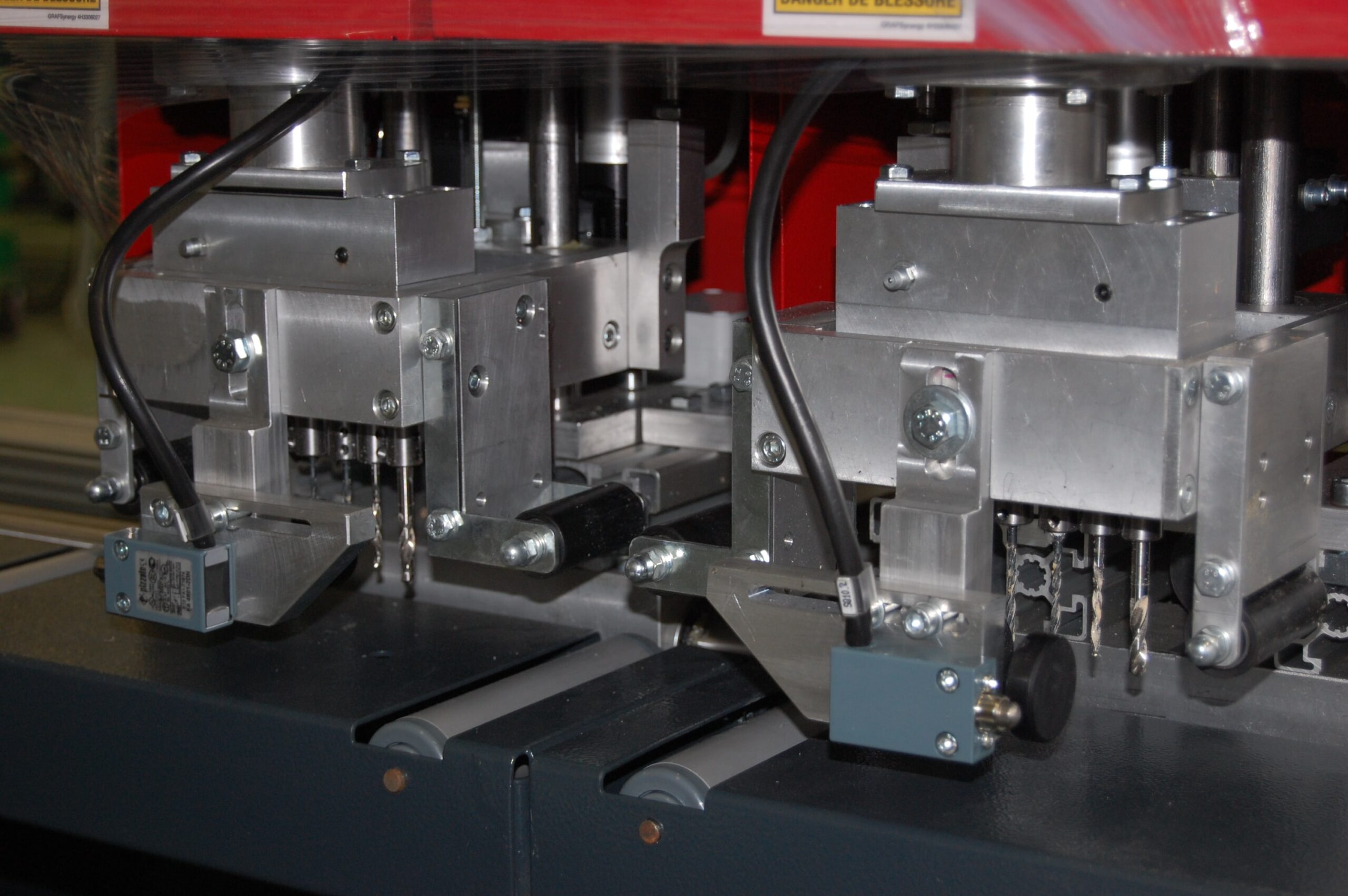

The two oil-pneumatic drop drilling heads, mounted on double ground bars, ensure maximum precision. The frame is secured using high-clamping pneumatic vices, providing stability during operation.
Sizes
Length: 3,150 mm
Width: 1,700 mm
Height: 1,200 mm
Weight: 400 kg
Performance
Operation: Manual
Operators required: 1
Workable frames per day: based on manual productivity
POWER SUPPLY and Consumption
Installed power: 1.2 kW
Voltage: 400 V
Air consumption: 15 Nl/min
Minimum operating pressure: 7 bar
Workable profiles
Minimum frame size: 450 mm
Maximum frame size: 2,740 mm
Supported features and processes
Supported Processes:
- Automatic drilling on PVC+Steel profiles
- Angle positioning guided by internal reference
Optional features and available configurations
The car comes in a fully equipped standard configuration, with no additional options. Every essential feature is already integrated to ensure maximum ease of use and reduced maintenance.
Technology and automation
Although it is a compact and straightforward machine, the F 16 incorporates advanced automation:
- Automatic drilling depth regulator
- Automatic reset cycle
- Intuitive interface with a simplified control panel
Pneumatic tightening for safety and repeatability
Want to find out if the F-16 is suitable for your production?
Request the detailed brochure now or contact us for a personalised quote. Our team is available to discuss how to integrate the F 16 into your production line.
