F 164
Automatic milling machine for condensate drainage on PVC and aluminium profiles
Fast and precise milling in three directions for door and frame profiles
Perfect if:
- You need to create condensate drain holes quickly and in a standardized way.
- You work with both door profiles and frames and want a single machine for both.
- Are you looking for a compact solution that can easily fit into small spaces?
- Do you want to enhance operator safety with a two-hand control?
- You need to make quick changes between internal and external cycles.
- Do you prefer equipment that is reliable and requires no regular maintenance on the engines?
Request the technical brochure now or speak with an expert.

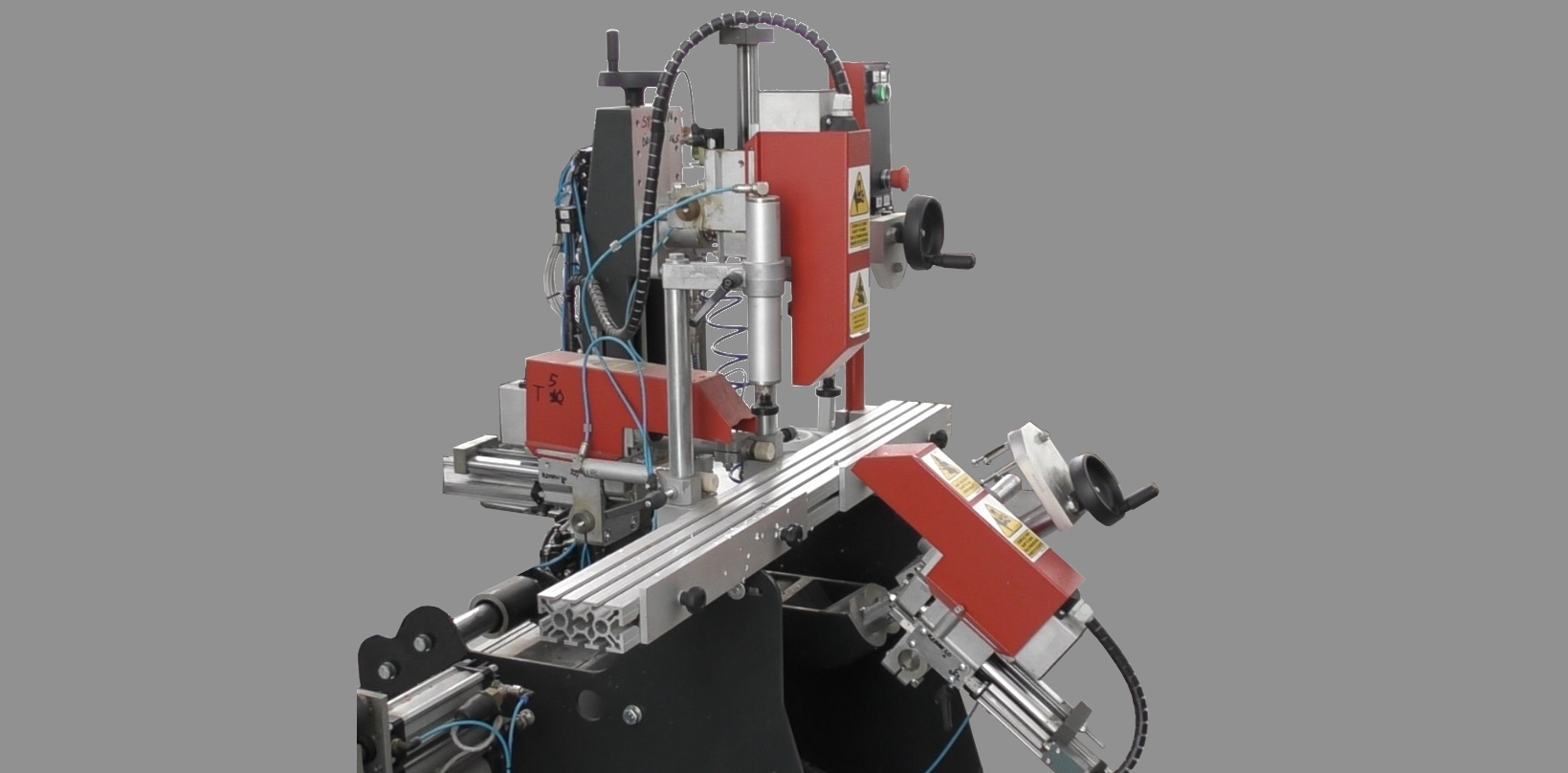

The F 164 milling machine is the compact and automatic solution for precisely creating condensate drain slots without interruptions.
Designed to meet the needs of those working with PVC and aluminium profiles, this automatic machine ensures maximum efficiency thanks to its 3 high-frequency electro-spindles with pneumatic movement.
Ideal for both repetitive cycles and small batches, it features a two-hand safety control, integrated pneumatic clamps, and simple, reliable mechanical adjustment systems.
With the option to select different processing cycles directly from the panel, the F 164 can adapt to specific processing needs for doors or frames, ensuring speed, precision, and a reduction in operator errors.
5 reasons to choose F 164
- Zero maintenance motors. Equipped with high-frequency electrospindles, it ensures long-lasting performance without the need for regular maintenance.
- Maximum cycle speed. The automatic cycle completes each operation in extremely short times, boosting daily productivity.
- Simplified internal/external transition. Automatic condensate drain switching, with panel selection for door/frame cycles or left/right.

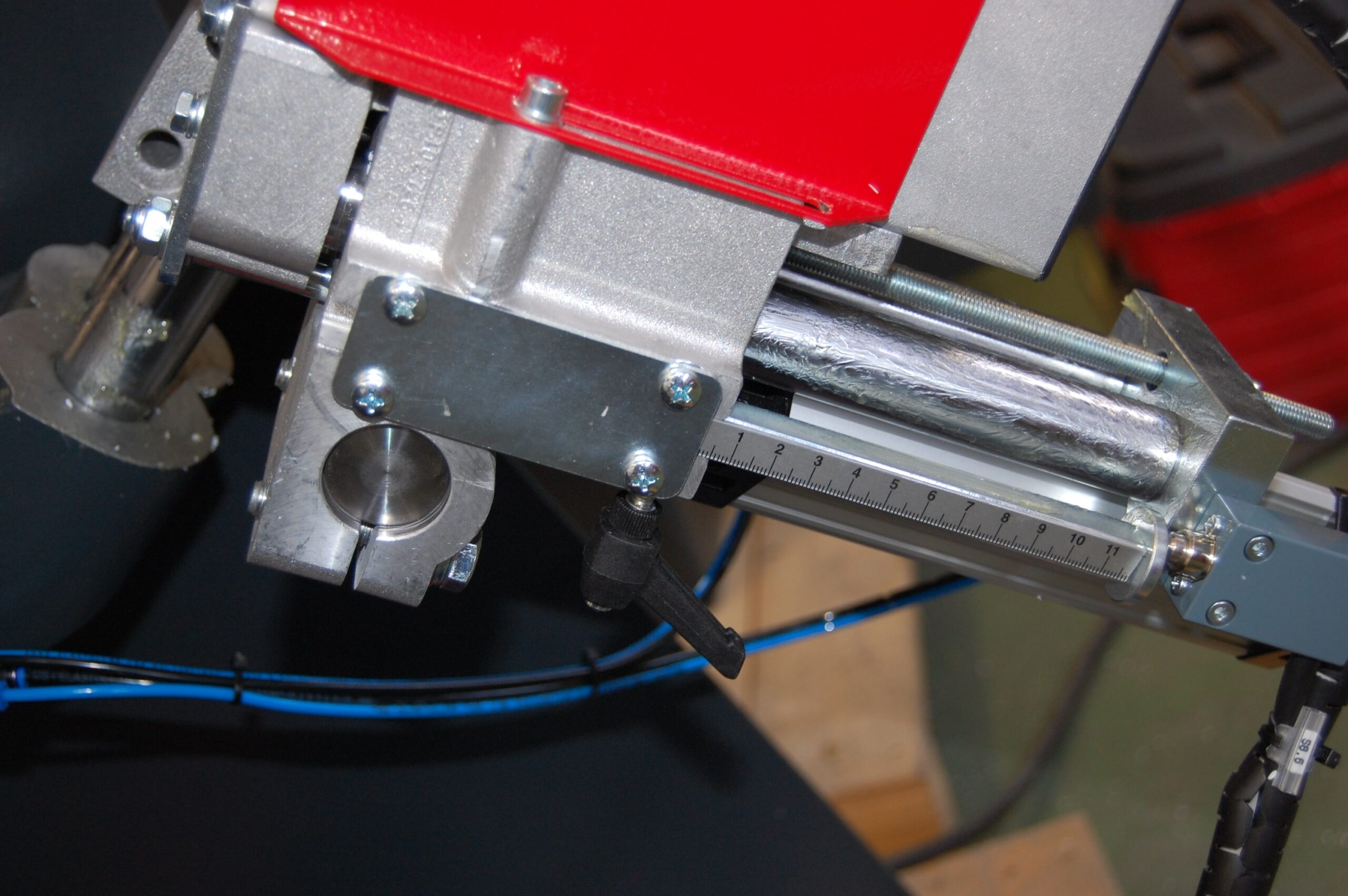

- Intuitive adjustments. Knobs and mechanical stops allow for quick parameter settings, even for inexperienced operators.
- Precise and secure profile locking. Two pairs of pneumatic clamps and retractable references ensure stability and repeatability in the machining process.
Product Details
The F 164 is designed to perform condensate drain slots on PVC and aluminium profiles, with automatic configurations for different types of processing.
Sizes
Length: 1,300 mm
Width: 1,200 mm
Height: 1,900 mm
Weight: 235 kg
Performance
Operation: manual with automatic cycle
Operators required: 1
POWER SUPPLY and consumption
Installed power: 1.5 kW
Power Supply: 230 V – Single Phase
Minimum operating pressure: 7 bar
Air consumption: 15 Nl/min per cycle
Workable profiles
Profile Width: 40 to 120 mm
Profile height: 40 to 180 mm
Length: dependent on the bar used
Supported features and processes
Thanks to the pneumatic movement of the three electro-spindles, the machine can mill in three combined directions – selectable based on whether processing is done on a door leaf or frame – providing high versatility and adaptability in the production line.
Available Services:
- Condensate drain holes
- Different modes for door/frame
- Selectable SX/DX cycles from the panel
Optional and configurations
To further enhance practicality and flexibility in the workshop, the F 164 can be customised with:
- SX+DX Side Supports measuring 1,500 mm to facilitate the loading and unloading of longer profiles.
- Adaptable configurations for the production layout
Each configuration is designed to seamlessly integrate into the client’s operational workflow.
Technology and automation
Despite its compact size, the F 164 incorporates advanced technical solutions:
- Cycle control via integrated panel
- Quick selection of predefined programs for door/frame
Fast and Synchronized Pneumatic Movements
The machine is designed for efficient operation, even in environments where speed of execution and ease of use are essential.
