F 164 ALU
Automatic milling machine for condensate drainage on aluminium profiles
Maximum precision in condensate drainage operations
Perfect if:
- Minimise cycle times in milling operations
- Milling condensation drains on doors and frames with a single machine.
- Avoid rework by using precise reference points.
- Use an intuitive machine, even with untrained operators.
- Quickly switch between working on different profiles.
- Maintain order and safety thanks to the compact and efficient design.
Request the technical brochure now or speak with an expert
Maximum precision in condensate drainage operations

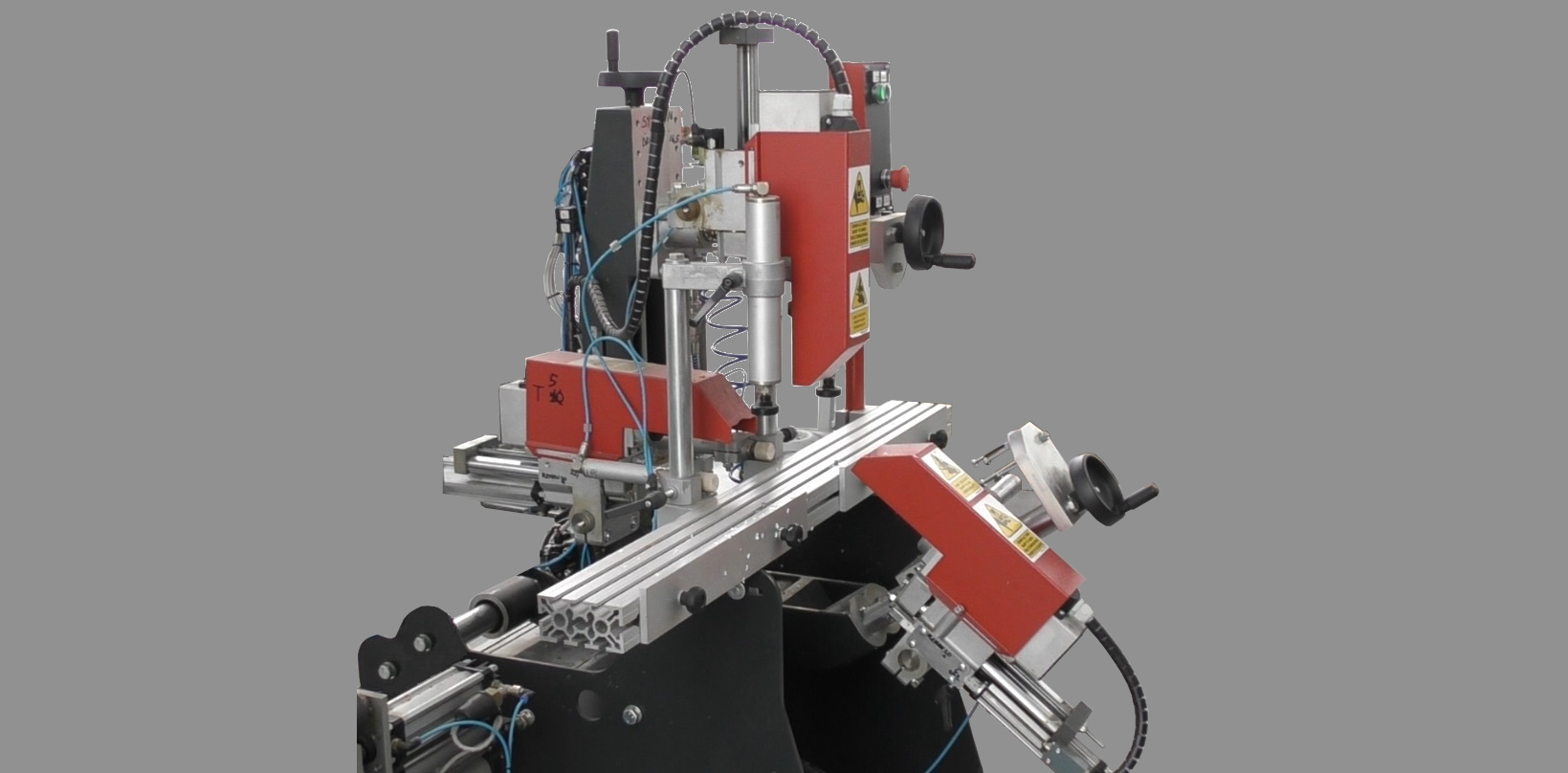

Designed to ensure speed, ease of use, and zero rework, the F 164 ALU is the automatic milling machine dedicated to creating drainage slots on aluminium profiles. With its compact structure and three oil-pneumatic spindles, it is ideal for those looking for an efficient machine that is easy to adjust and suitable for flexible production.
Perfect for companies that work with both panels and frames, the F 164 allows for combined processing in three directions, which can be selected directly from the panel. The cycle is fully automatic, activated safely via a two-hand control, while the retractable stop references ensure speed and repeatability of operations.
5 reasons to choose the F 164 ALU
- Super Fast Cycles. Milling takes place in extremely short times thanks to the three high-frequency electrospindles.
- No maintenance on spindles. HF motors do not require regular servicing, reducing machine downtime and operating costs.
- Maximum operational flexibility. Automatic management of the exchange between internal and external discharges, with quick selection from the panel.

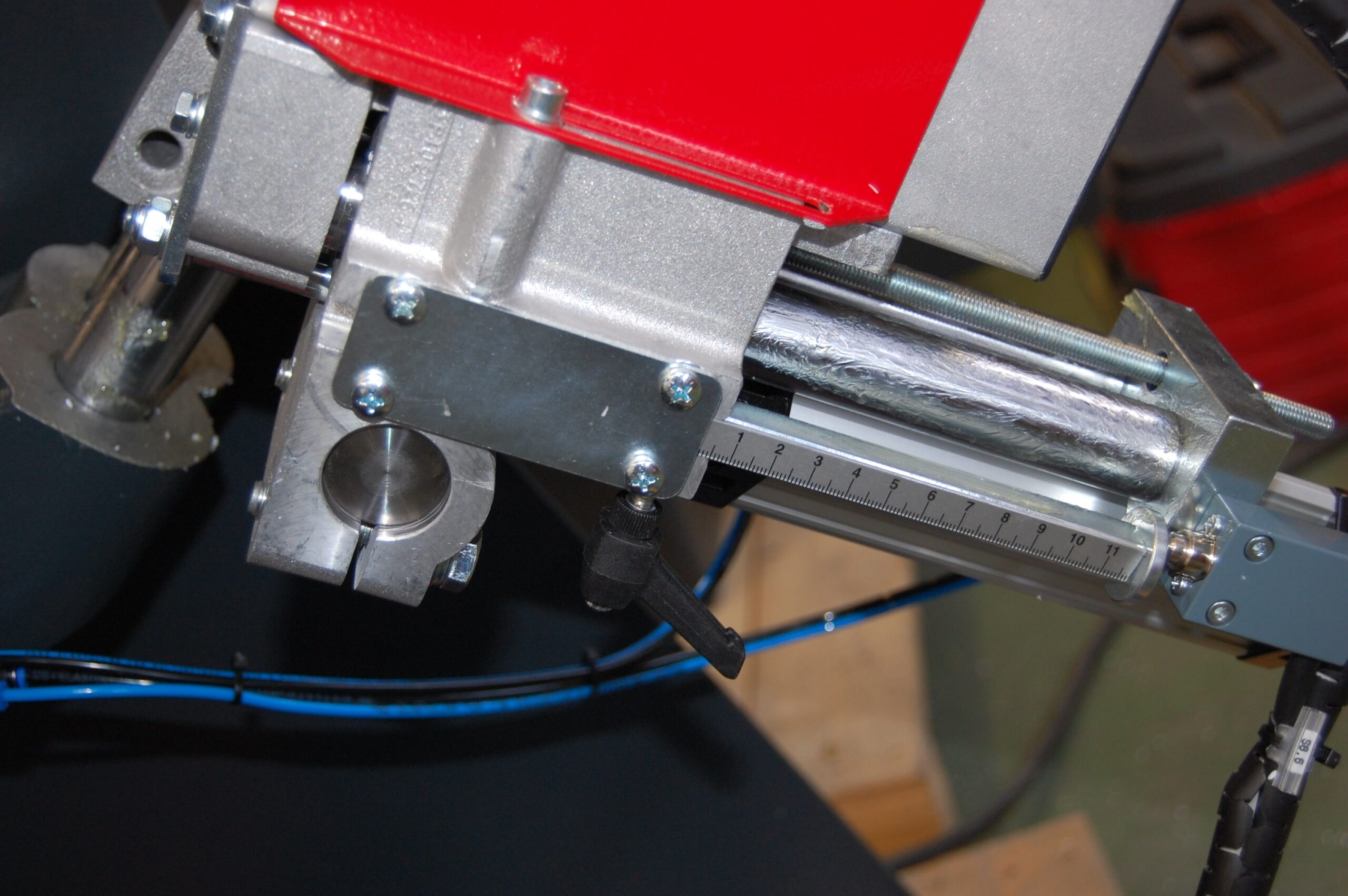

- Quick and Intuitive Adjustments. Knobs and mechanical stops allow the operator to set cycles in just a few seconds.
- Secure and precise workpiece clamping. Pneumatic horizontal and vertical vices ensure stability during every machining operation.
Product Details
The F 164 is specifically designed for milling drainage slots, featuring automatic positioning and the selection of processing type (leaf or frame) directly from the panel. The system allows operation in three different directions, combined in pairs, ensuring maximum versatility in managing drainage geometries. Thanks to the pneumatic movement of the electro-spindles and its compact configuration, the cycle remains stable, precise, and repeatable, even for medium-small batches.
Sizes
Length: 1,300 mm
Width: 1,200 mm
Height: 1,900 mm
Weight: 235 kg
Performance
Operator required: 1
Mode: automatic cycle with dual activation
Productivity: variable depending on manual organisation
POWER SUPPLY and Consumption
Installed power: 1.5 kW
Voltage: 230 V single-phase
Air consumption per cycle: 15 Nl/min
Minimum operating pressure: 7 bar
Workable profiles
Width: from 40 to 120 mm
Height: from 40 to 180 mm
Length: depends on the bar used
Supported features and processes
The F 164 is specifically designed for milling drain slots, featuring automatic positioning and selection of the machining type (leaf or frame) directly from the panel. The system allows operation in three different directions, combined in pairs, ensuring maximum versatility in managing drain geometries.
Thanks to the pneumatic handling of the electrospindles and the compact design, the cycle is stable, precise, and repeatable, even for medium-small batches.
Optional and configurations
To accommodate various layout needs, the F 164 ALU can be equipped, upon request, with:
- SX+DX Side Supports 1,500 mm, useful for supporting long profiles and improving load ergonomics.
This optional configuration allows for better management of production flows even in limited spaces, optimising setup times.
TECHNOLOGY AND AUTOMATION
The control panel allows for simplified cycle management, with quick selection between door and frame modes. The flush-mounted reference stops and mechanical controls (knobs and stops) enable precise and fast adjustments.
The machine is compatible with flexible production logic and can be easily integrated into semi-automatic settings or incorporated into larger production lines.
