FAB CUT 3BS
High productivity CNC cutting and machining centre for PVC windows
The integrated solution for the automatic cutting and processing of PVC profiles: maximum speed, hundredth precision, and resource optimisation
Perfect if you want:
- Dramatically increase production by reducing downtime and waste.
- Working on complex profiles or with non-standard sections
- Optimize the use of raw materials with smart software.
- Automating the production workflow with a 4.0 perspective
- Rely on an intuitive interface that’s suitable for even inexperienced users.
Request the technical brochure now or speak with an expert.
The integrated solution for the automated cutting and processing of PVC profiles: maximum speed, hundredth precision, and resource optimisation.
The FAB CUT 3BS is a CNC cutting and working centre with 12 controlled axes, designed for window manufacturers aiming for maximum productivity, achieving up to 250 single-pane windows in 8 hours, without compromising on precision, reliability, and operational continuity.

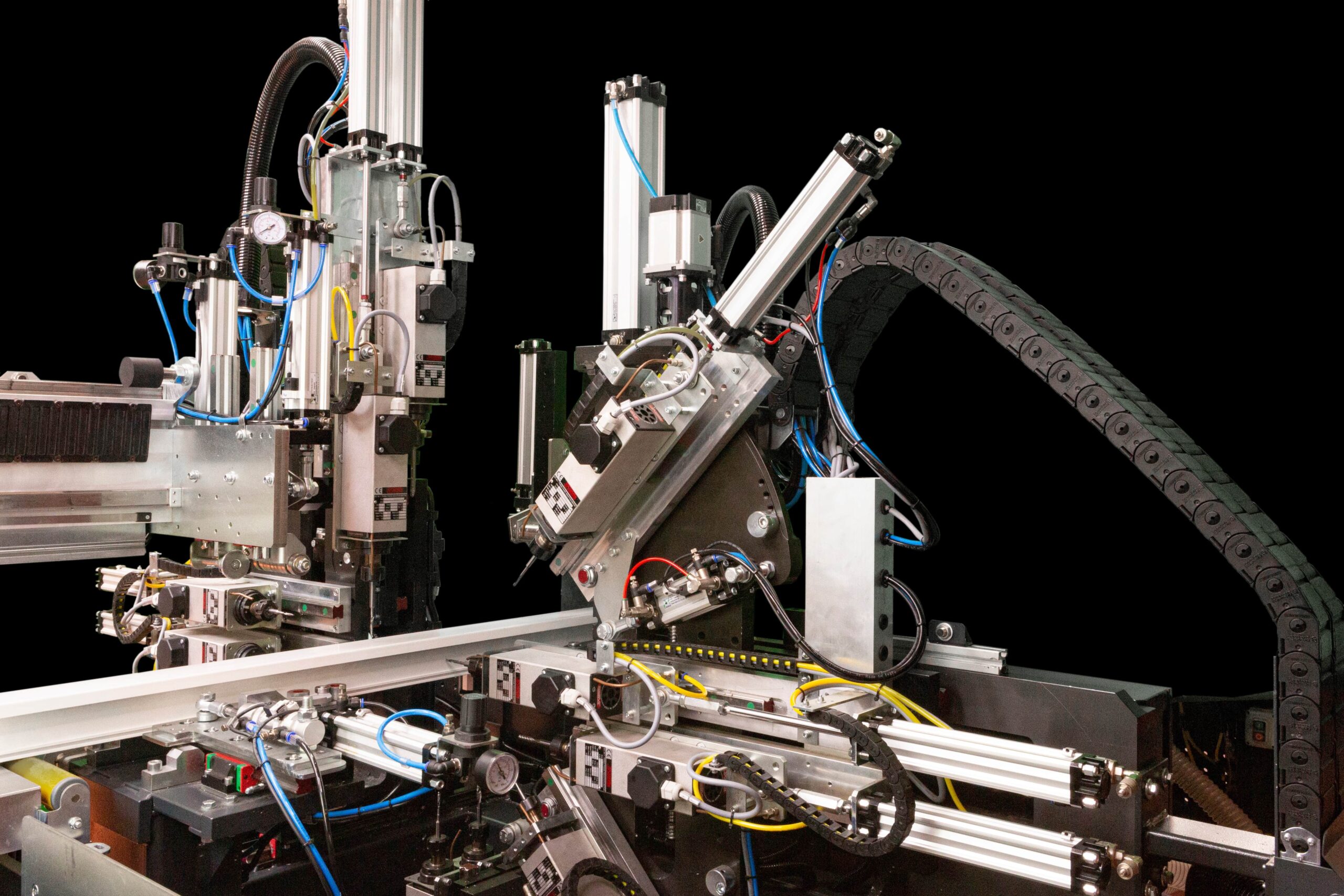

The setup consists of an automatic loading warehouse (8 bars), a CNC gripper with 2 axes controlled by a linear motor and hundredth reading, two independent work modules with 11 High Speed spindles on a split centre, and a horizontal cutting module with 3 synchronized blades Ø550 mm.
Thanks to the integrated management software, the system optimizes the use of bars and records every machine activity. The plant is equipped for Industry 4.0, featuring remote monitoring and complete management integration.
5 Reasons to Choose FAB CUT 3BS
- Maximum Speed and Operational Continuity
Two independent work modules with 11 High-Speed spindles, plus a cutting module with 3 synchronized blades, ensure consistent performance even on complex cycles. - Guaranteed Centimetre Precision
Automatic alignment system and CNC clamp with position reading on magnetic tape: perfect machining even on non-straight bars. - Waste and Cost Reduction
The GRAF Synergy software optimises production lists, reducing the number of bars required. - Wide versatility and profile compatibility
Automatically processes profiles ranging from 500 to 6,500 mm, with sections up to 130×180 mm. All required PVC operations are supported. - Simplified and Connected Management
Intuitive software, comprehensive operational monitoring, and readiness for Industry 4.0 connected to management systems.
Product Details
The FAB CUT 3BS performs all standard and special operations in the PVC window frame sector, featuring two independent working modules equipped with a total of 11 High Speed spindles. The horizontal cutting module with 3 blades Ø550 mm allows for cuts at -45° / 90° / +45°, even on profiles with seals.
Sizes
Length: 15,250 mm
Width: 3,400 mm
Height: 2,800 mm
Weight: 4.500 kg
Performance
Cycle time: Up to 250 frames/8h* (depending on profiles and processing)
Operators needed: 1
POWER SUPPLY and Consumption
Installed power: 22 kW
Power Supply: 400 V
Air consumption: 180 Nl/min
Minimum pressure: 7 bar
Workable profiles
Profile length: 500 – 6,500 mm
Profile width: 40 – 130 mm
Height: 40 – 180 mm
Supported features and processes
Main processes:
- Handle holes, cylinder, hinge, ventilation
- Condensate drain holes
- Lock picks
- Feedback marking
- Corner cuts on PVC profiles
Optional features and custom configurations
The FAB CUT 3BS is customizable with a wide range of options to meet any production needs.
- Additional chuck (12°)
- Laser for tool breakage control
- STATS: software for production data analysis (daily, weekly, monthly, yearly)
- Fly Optimizer: automatic detection of leftover bars and list optimization
- Option ‘Recover’: reinserting defective parts with a new list
- Custom solutions for special profiles (subject to technical analysis)
- Motorized unloading table on the opposite side
- Chip conveyor (1,000 or 2,000 mm)
- Vacuum cleaner with 2 bags
- Labeling machine (manual or automatic with applicator)
- Single or double laser for profile marking
- Custom soundproof booth
- Provision for connection to 1 or 2 ASG-E Centres
Integrated technology and automation
The FAB CUT 3BS combines 12-axis CNC management, intuitive proprietary software, and automatic alignment system to deliver the highest levels of precision,
efficiency, and control.
- Automatic import of cutting lists
- Real-time bar optimization
- Comprehensive monitoring of machine cycles
- Connection to management systems
- Compatibility Industry 4.0
Want to find out how FAB CUT 3BS can enhance your production?
Request the complete brochure or a personalised consultation with our experts.
