FAB CUT F1
CNC Cutting and Machining Centre for PVC Profiles
Automate the cutting and processing of profiles with maximum precision, saving both time and materials.
Perfect if you want:
- Significantly reduce bar waste through software optimization.
- Achieve perfect machining even on non-linear bars.
- Boost productivity with just one operator
- Automate the entire cutting and drilling cycle in a compact space.
- Integrating sensors, modules, and analytics software in the context of Industry 4.0.
Request the technical brochure now or speak with an expert.
Automate the cutting and processing of profiles with maximum precision, saving both time and materials.
The FAB CUT F1 is a 5 or 6-axis CNC machining centre that represents the most advanced solution for cutting and processing PVC profiles. Equipped with the latest innovative technologies, it integrates cutting, drilling, milling, and marking functions into a single system, automatically managing the entire process with consistent precision over time.
Ideal for companies looking to automate and optimise production, it is compact, high-performing, and easily integrable into modern Industry 4.0 workflows. Intelligent management of cutting lists reduces material waste and machine downtime, ensuring a quick and measurable ROI.
5 reasons to choose the FAB CUT F1
- Total optimisation of production lists. The GRAF Synergy software allows you to use the minimum number of bars possible, reducing waste and maximising yield.
- High-Precision Cutting and Drilling. The CNC clamp with hundredth reading and the automatic alignment system ensure consistent results even with warped bars.
- High Processing Speed. Module with 6 (expandable to 12) High Speed spindles and an upward blade with a diameter of 500 mm for clean and quick cuts.
- Intuitive use, even for inexperienced operators. A simple interface and automated cycle management reduce the training required and speed up the startup process.
- Integration with Industry 4.0. Compatible with management systems, data analysis, and remote control: ready for the future.
Product Details
The FAB CUT F1 is designed to fully automate the main processes required for the production of PVC windows.
Sizes
Length: 14,900 mm
Width: 3,400 mm
Height: 2,500 mm
Weight: 3,000 kg
POWER SUPPLY and Consumption
Installed Power: 14 kW
Voltage: 400 V
Air Consumption: 120 Nl/min
Minimum Pressure: 7 bar
Performance
Up to 180 single-pane windows in 8 hours*
*Depends on the type of profile and required processing
Operators needed: 1
Workable profiles
Length: 700 / 6,500 mm
Width: 40 / 130 mm
Height: 40 / 130 mm
Supported features and processes
The FAB CUT F1 is designed to fully automate the main processes required for the production of PVC windows. The high-speed working module supports:
- Handle holes, cylinder, hinge
- Condensate drain holes
- Feedback marking
- Ventilation holes
- Lock picks
- All custom processing requested on PVC profiles

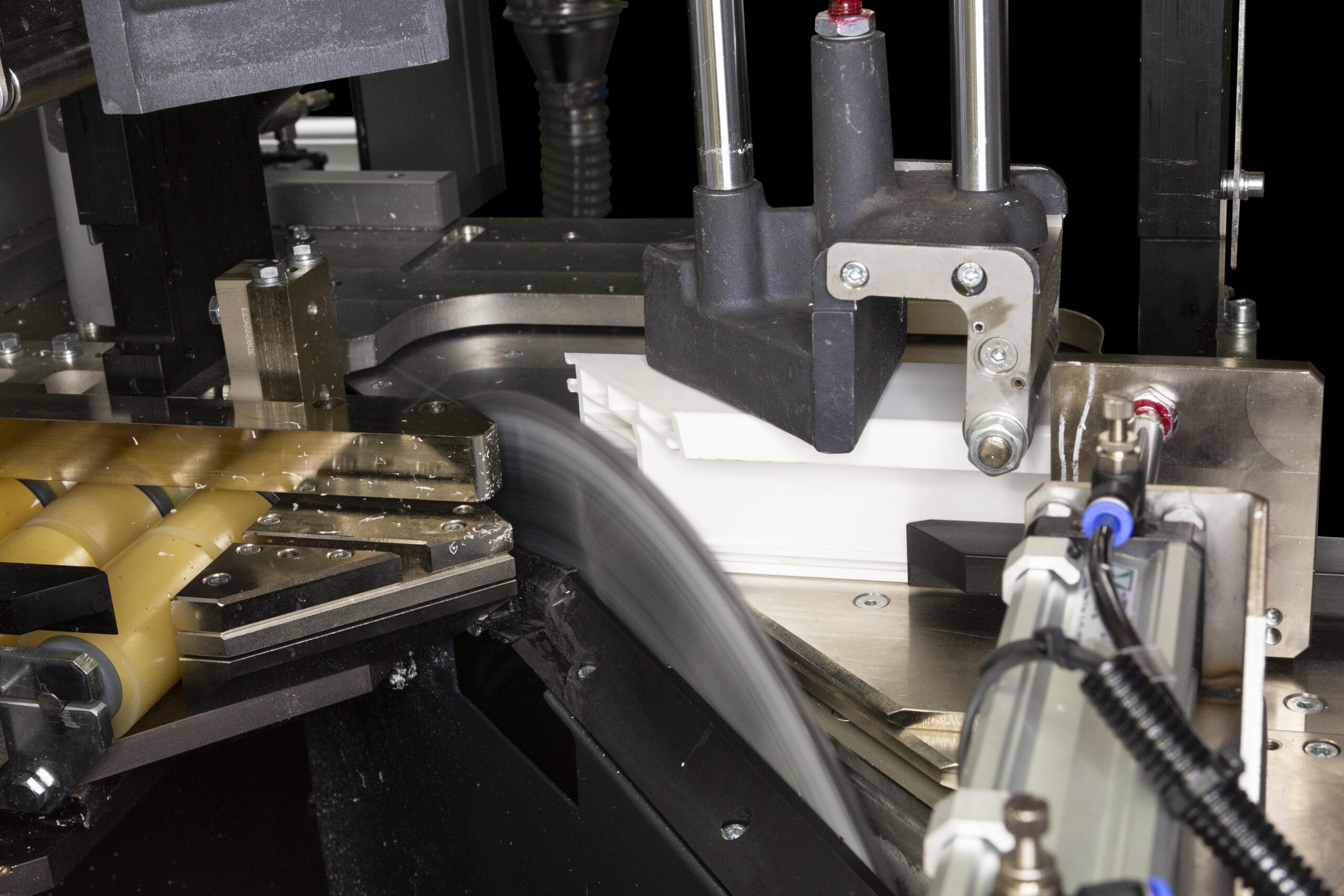

The cutting module features an upward blade with a diameter of Ø 500 mm (optional Ø 550 mm) for precise cuts at -45° / 90° / +45°, even on profiles with seals.
Optional and configurations
- The FAB CUT F1 perfectly adapts to various production needs thanks to a comprehensive range of options.
- 12-spindle configuration
- Brushless blade rotation for intermediate angled cuts
- CNC bar gripping system with a clamp on prismatic guides
- Loading short bars of 400 mm
- Discharge module with outlet on the opposite side of the load.
- Chip conveyor, vacuum system, soundproof booth
- Connection to 1 or 2 ASG-E Screw Driving Centers
- Manual or automatic labeler
- Height/width profile sensors for error monitoring
- Aluminium processing version, header cross members, V-Notch
Technology and automation
The entire architecture of the FAB CUT F1 is designed to ensure efficiency, precision, and control. The management software allows you to:
- Automatically import and optimize cutting lists.
- Analyze production data with the STATS module.
- Retrieve items using the ‘Recover’ option.
- Measure and reuse waste with Fly Optimizer.
The smart sensors and CNC architecture make it fully integrable into Industry 4.0 processes, featuring remote control, performance analysis, and predictive maintenance.
Contact us now to receive the full brochure or to request a personalised demo.
