FAB CUT PLASMA
Metal reinforcement cutting and processing centre
Combined plasma + blade technology for enhanced productivity
Perfect for:
- Production departments working on metal reinforcements
- Workshops looking to automate all cutting and processing operations.
- Companies looking to synchronize metal/PVC production
- Companies looking to reduce cycle times and increase efficiency.
- Intensive production with high versatility requirements
Request the technical brochure now or speak with an expert.
Cutting and processing, all in one facility

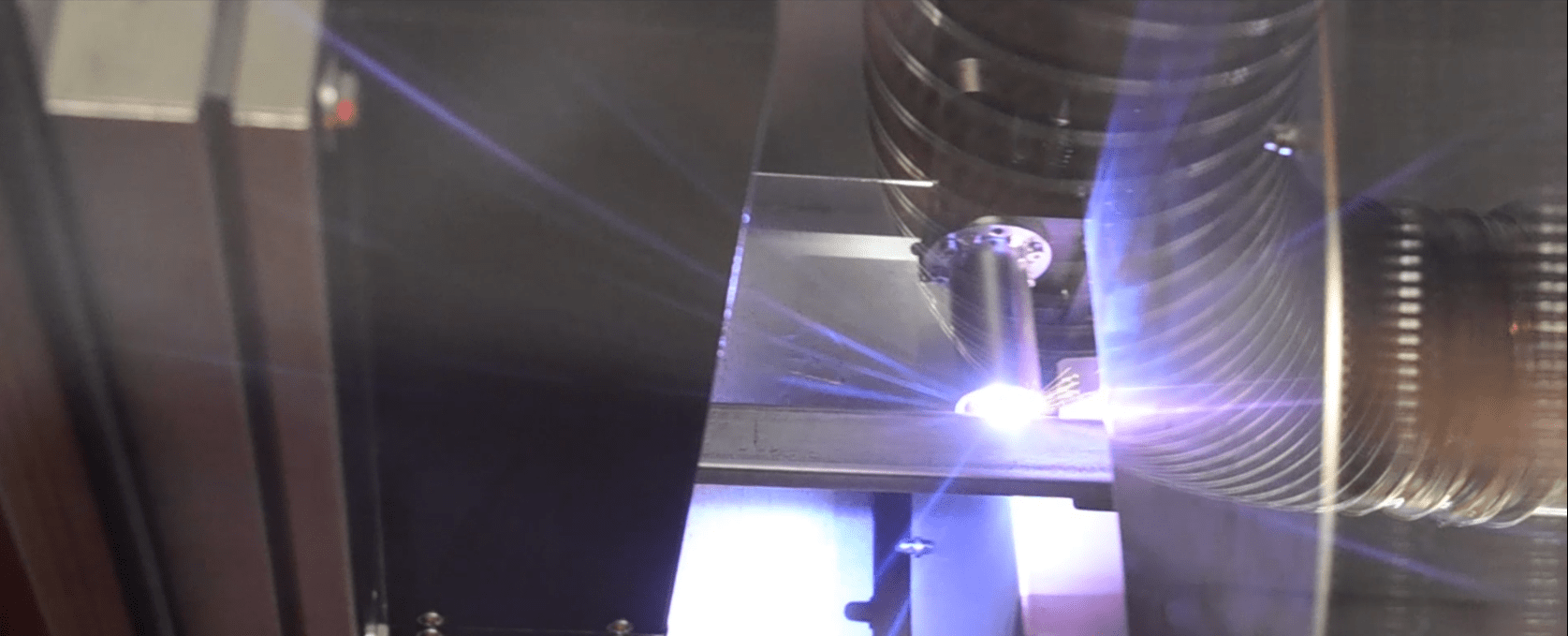

FAB CUT PLASMA is a CNC cutting centre that combines descending blade cutting with plasma technology, integrating all necessary processes on metal reinforcements: slots, holes, notches, and cutting.
Managed by a 4-axis CNC system, it allows for high precision and automation.
The system can be configured to perfectly synchronise with the GRAF Synergy PVC centres, optimising the entire production flow.
The advanced software allows for the automatic import of production lists and includes intelligent systems for managing cutting and leftovers.
Why choose FAB CUT PLASMA?
- Unique Combined System. Integrated processing and cutting in a single automated solution.
- Reduced Execution Times. Simplify and speed up reinforcement operations.
- Synchronous PVC/metal production. Aligned with the workflows of PVC cutting centres for more streamlined cycles.
- Continuous Optimization. Fly Optimizer for waste reuse and waste minimization.
- Long-lasting Reliability. Electronic monitoring of blade wear and a sturdy structure.
Product Details
FAB CUT PLASMA is a CNC cutting centre that combines descending blade cutting with plasma technology, integrating all necessary processes for metal reinforcements: slots, holes, notches, and cutting.
Managed by a 4-axis CNC system, it allows for high precision and automation.
Machine dimensions
Length: 14.525 mm
Width: 3,400 mm
Height: 2,800 mm
Weight: 2.850 kg
POWER SUPPLY and consumption
Installed power: 13 kW
Voltage: 400 V
Air consumption: 1,200 Nl/min
Minimum pressure: 7 bar
Performance and operators
- Up to 240 windows/8h (1 panel)*
- Operators Required: 1
(*depending on the type and section of the metal)
Workable profiles
Length: 700 – 6,500 mm
Width: 20 – 80 mm
Height: 20 – 60 mm
Operational Forms
Work Form
- 4-axis CNC rotary plasma structure
- Processing: holes, slots, cutouts on metal profiles
Cutting Form
- Structure: 1 Blade Ø 350 mm
- Movement: Descending
- Angle: Fixed cut at 90°
Loading Form
- Maximum warehouse capacity: 9 bars
- Brushless motor spinner with rack
- Loading via straps
Discharge Form
- Discharge with pneumatic extractor
- Belt table with safety photocells
- Maximum capacity: 10 pieces
Optional available
- Optional plasma unit
- Controlled axis vice locking
- Controlled axis blade descent
- Inverter blade rotation for current control
- Second discharge clamp on controlled axis
- Automatic unloading table (5,000 mm)
- Steel mat for collecting downloaded profiles
- Setup for cutting only with a blade (simplified version)
One machine for complete processing of metal reinforcements. Contact us for a technical demo of the FAB CUT PLASMA.
