FAB CUT V
CNC cutting and machining centre for custom PVC fittings
Complete Automation for Special Productions: extreme cuts, high-precision processing, maximum efficiency
Perfect if:
- Produce special fittings with complex angles and custom cuts.
- Do you want to fully automate bar management?
- Do you often work with warped profiles and are looking for a system that can automatically correct them?
- You need high productivity with just one operator.
- Are you looking for a system ready for Industry 4.0 that can be integrated with your management software?
- Do you want a customizable solution tailored to your needs, even for aluminum profiles?
Request the technical brochure now or speak with an expert.
Complete Automation for Special Productions: extreme cuts, high-precision machining, maximum efficiency
The FAB CUT V is a 4-axis CNC cutting and machining centre designed to automate production in the Special Productions department. With a fully automated system and the integration of advanced technologies, it combines the versatility of angular cutting with the efficiency of multiple machining processes on PVC profiles.

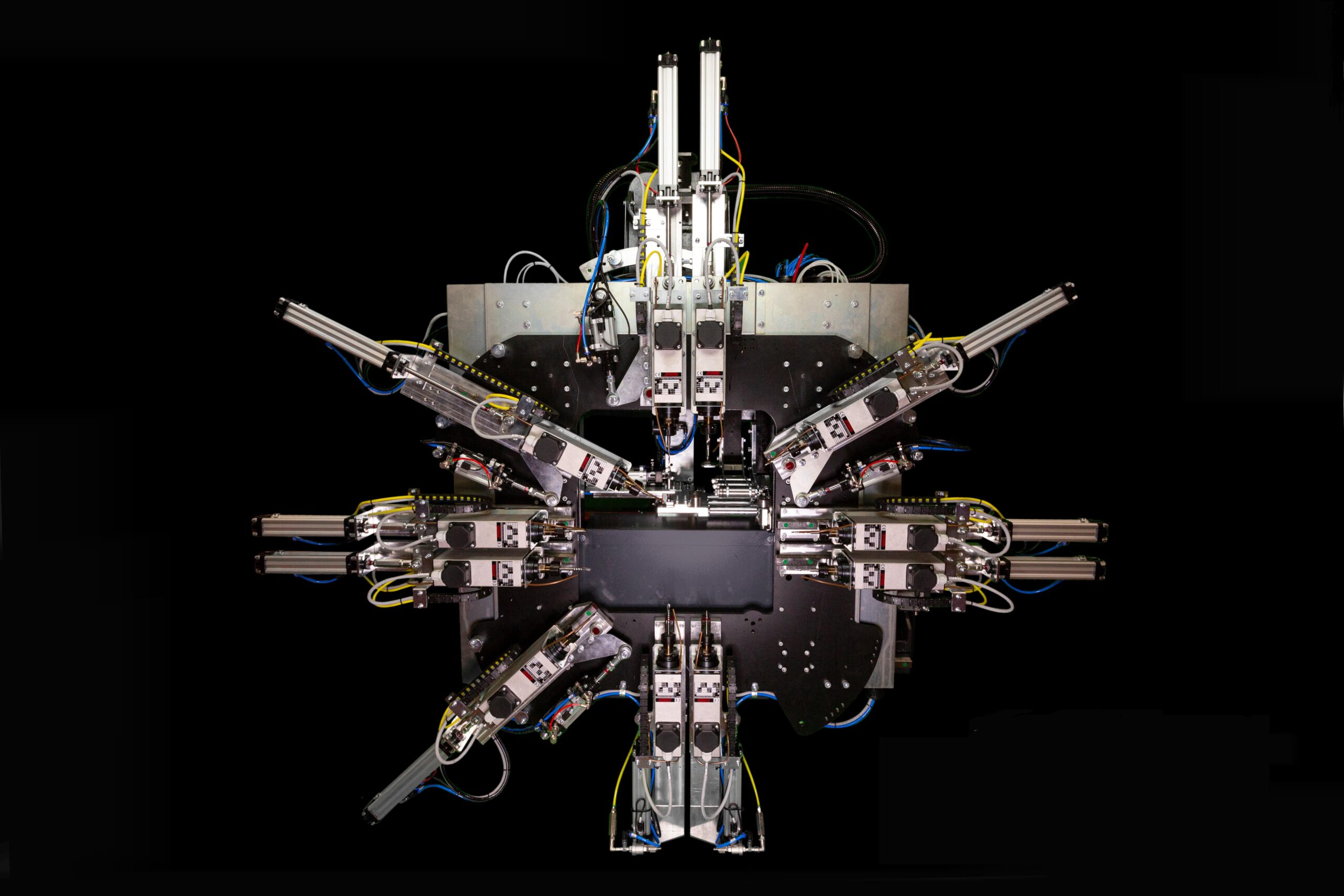

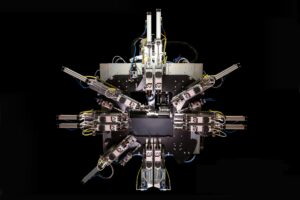

The machine consists of an automatic loading magazine (capacity of up to 10 bars), a CNC gripper with 2 axes controlled on prismatic guides featuring a linear motor and magnetic strip, and a configurable working module with 6 or 12 High Speed spindles. The cutting module integrates a Ø550 mm blade with an upward movement, brushless rotation, and centesimal reading for angles ranging from -22.5° to +22.5°.
An automatic alignment system straightens profiles that are not perfectly straight, ensuring maximum precision. The integrated software autonomously manages the cutting lists, optimising the bars used. The operator is limited to loading and unloading the pieces.
5 Reasons to Choose FAB CUT V
- Designed to automate the Special Productions department. Optimises the most complex processes with reliability and consistent precision over time.
- Extreme and intermediate cuts with maximum precision
Cutting module with a Ø550 mm blade, brushless motorized rotation, and magnetic band reading: sharp angles from -22.5° to +22.5°. - Automatic alignment of rebar
An intelligent system straightens out bent bars to ensure millimetre-precise processing. - Integrated list management software
Automatically imports and optimizes production lists, keeping track of operations (daily, weekly, monthly, yearly). - Modularity and scalability
Configurable with up to 12 High Speed spindles, featuring a wide range of options and connectivity to 1 or 2 ASG-E Centers.
Product Details
The FAB CUT V performs all essential operations for PVC profiles in a single station, thanks to its work module equipped with 6 High Speed spindles (expandable to 12).
Sizes
Length: 15,520 mm
Width: 3,400 mm
Height: 2,800 mm
Weight: 3.600 kg
Performance
Cycle time: Up to 150 frames/8h* (depending on profiles and processes)
Operators required: 1
power supply and consumption
Installed power: 14 kW
Power Supply: 400 V
Air consumption: 180 Nl/min
Minimum operating pressure: 7 bar
Workable profiles
Length: 500 – 6,500 mm
Profile width: 40 – 130 mm
Height: 40 – 180 mm
Supported features and processes
- Condensate drain holes
- Handle holes, hinge, cylinder
- Lock picks
- Feedback marking
- Ventilation holes
- Special processing available upon request
The cutting module, featuring a Ø550 mm blade, allows for angled cuts from -22.5° to +22.5°, even on profiles with seals, ensuring clean and precise cuts over time.
Optional features and custom configurations
The FAB CUT V is a flexible platform that can be configured to meet specific production needs.
- High Speed 12 Spindle Extension
- Motorized bevel for cuts from -15° to +15°
- Fly Optimizer for automatic reuse of leftover bars
- The ‘Recover’ option for re-entering incorrect items.
- STATS software for production cycle analysis
- Discharge table with outlet on the opposite side of the load
- Tool breakage sensors
- Vacuum cleaner with 2 bags, chip conveyors (1,000/2,000 mm)
- Manual or automatic labeler
- Custom soundproof booth
- Setup for automatic connection to 1 or 2 ASG-E Centers
- Special setup for processing aluminum profiles
Advanced technology and automation
The FAB CUT V centre integrates the most advanced technologies for control and traceability.

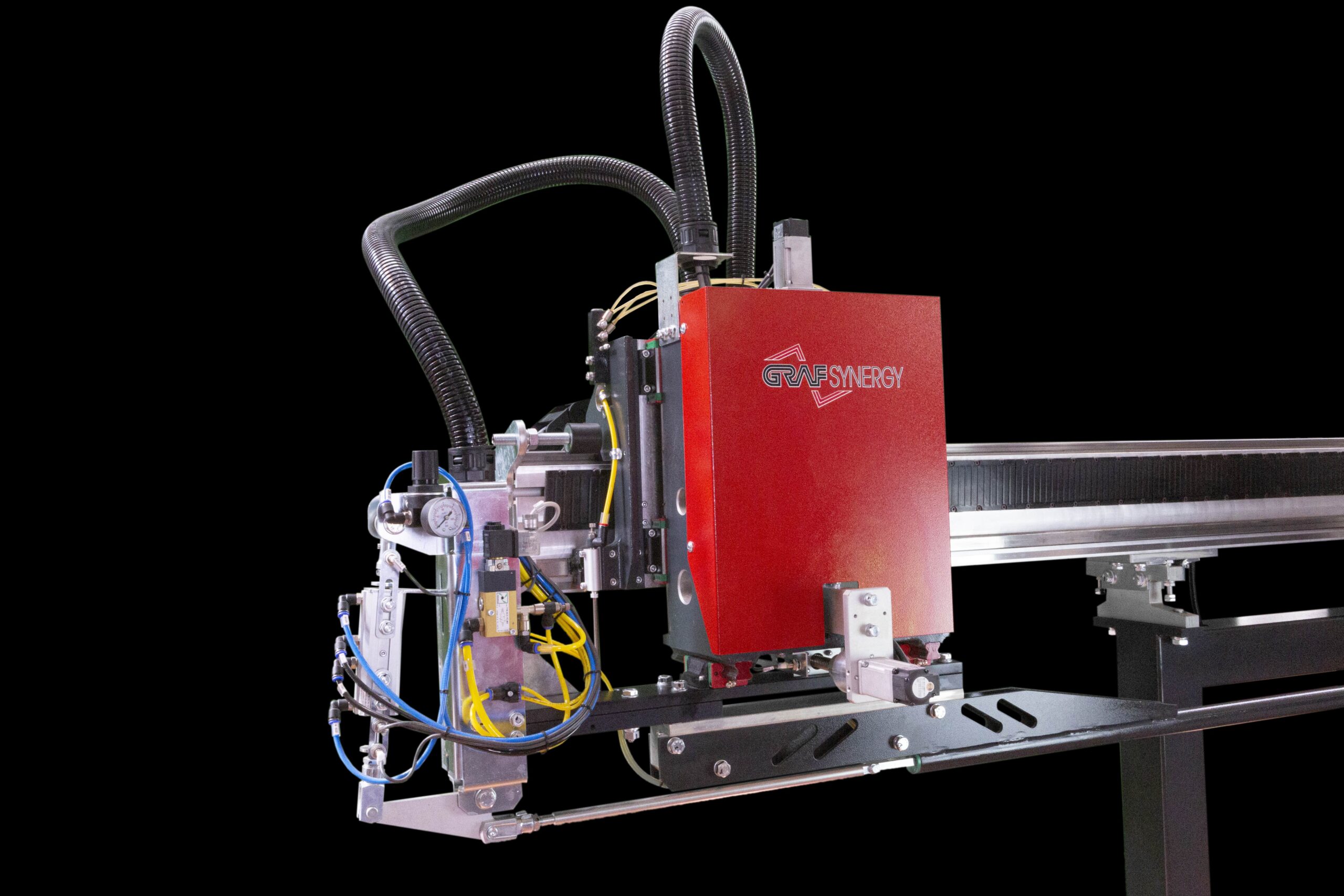

- CNC clamp with 2 controlled axes, featuring a linear motor and prismatic guide.
- Reading position on the centesimal magnetic band
- Software interface for optimized import and management of lists
- Comprehensive monitoring: daily, weekly, monthly, and annual activities
- Compatibility with business management systems
- Fully ready for Industry 4.0
