FAZ III
Automatic Machine for Mounting Hardware on PVC Doors
Maximize efficiency in hardware assembly: automate, accelerate, optimize.
Perfect if…
- Do you want to automate the hardware assembly on PVC doors, reducing errors and rework?
- Are you looking for a machine that maintains high productivity even with just one operator?
- You need to integrate the workstation into an existing automated line.
- You need to work with a variety of hardware and screws, using smart management.
- You need versatility in formats (from 350×500 mm to 2700×1200 mm).
- Do you want to reduce the screwing time to less than 65 seconds per door?
Request the technical brochure now or speak with an expert.
Maximize efficiency in hardware assembly: automate, accelerate, optimize.
The FAZ III is a CNC bench designed for the automatic assembly and screwing of hardware onto PVC doors, seamlessly integrating into an automated production line.
Equipped with one or two preparation stations and a high-speed screw-driving portal, it significantly reduces cycle times and the required labour.
Thanks to its smart design and automatic management of screws and driving depth, it allows you to complete a door in just 60 seconds, ensuring consistent precision, continuous production, and versatility in formats.
Ideal for companies aiming for high-volume PVC window production without compromising on quality or increasing operational costs.
5 Reasons to Choose FAZ III
- Continuous Production. Thanks to the overlapping cycle logic, while one fitting is being screwed in, the next door can already be pre-assembled, optimising the flow.
- Integration with Automated Lines. Compatible with automated packaging and transport systems for seamless integration into existing layouts.
- Intuitive Interface. The software guides the operator step-by-step, even without prior experience, indicating the position and type of tool to be installed.
- Extraordinary cycle speed. A panel completes every 60-65 seconds, with automatic management of screw type and driving depth.
- Versatility and configurability. Modular with 2 or 3 stations, dedicated options for special tools, handling profiles from 50 to 130 mm in width.
Product Details
The FAZ III workbench automates the entire hardware assembly cycle: from preparation to fastening. Its modular station architecture allows for a logical separation between phases, enhancing productivity and operational safety.
Overall dimensions (bench + screw portal)
Length: 7,950 mm
Width: 2,480 mm
Height: 2,510 mm
Weight: 7.130 Kg
Additional bench (optional)
Length: 3,000 mm
Width: 2,000 mm
Height: 2,510 mm
Weight: 1.580 Kg
Performance
Cycle time: up to 65 sec/shot*
Operators required: 1-2
*Indicative values: depend on profile, size, and hardware.
POWER SUPPLY and consumption
Installed power: 8 kW
Power Supply: 400 V
Minimum pressure: 7 bar
Air consumption: 500 Nl/min
Workable profiles
Max door size: 2700 x 1200 mm
Minimum door size: 350 x 500 mm
Profile Width: from 50 to 130 mm
Supported features and processes
FAZ III is available in a custom version to suit divers.
Main Processes
- Hardware positioning
- Custom tool cutting
- Automatic screwing on 4 sides
Operational Modes
- Pre-assembly of the “recess swap” door
- High-speed double screw driving on a mobile portal.
Optional and configurations
The FAZ III is available in a customised version to meet various production needs. Optional configurations include:
- Tool programming based on the type of window
- Version with just one High Speed screwdriver for tight spaces
- Support for special screws or those of varying lengths
- Exit with horizontal station or automatic verticalization
Each element is designed to provide maximum flexibility and support the scalability of the system.
Technology and automation

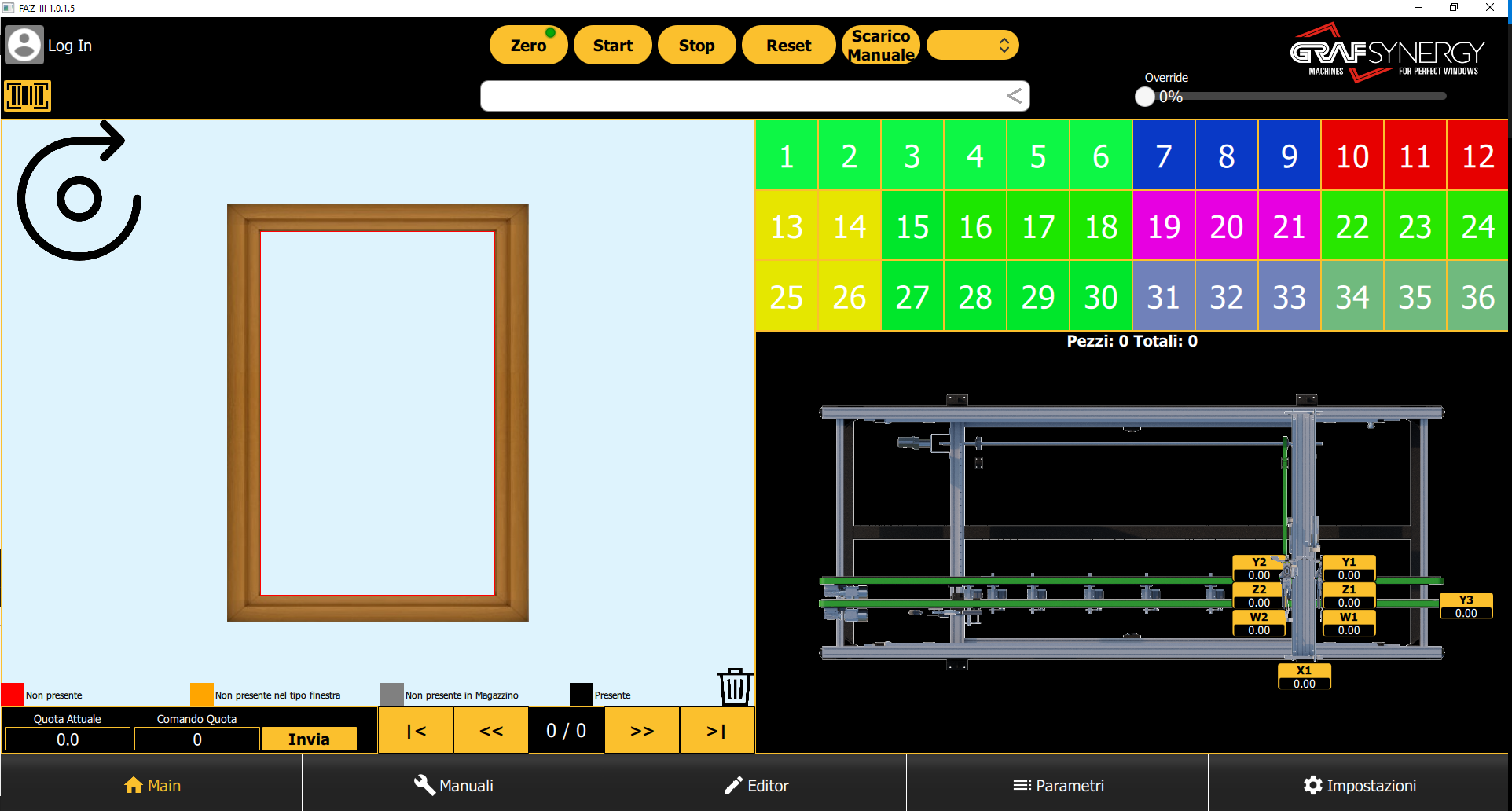

Equipped with an advanced CNC logic and a simplified graphical interface, the FAZ III bench automatically recognises the type of fastener, selects the correct screw, and precisely adjusts the screw-in depth.
Software and Controls
- Automatic screw type selection
- Electronic depth control regulator
- Guided user interface for operators
Integration and Industry 4.0
- Compatible with custom layouts and business management systems.
- Industry 4.0 readiness for interconnection, monitoring, and remote assistance.
Download the complete brochure now or request a personalised quote for FAZ III.
