GC3-SL
End milling machine for PVC/Aluminium profile seals
Maximum precision in door frame closures. Say goodbye to forced fittings.
Perfect if you want…
- Eliminate the strain caused by the curb under the seal.
- Achieve precise and flawless angles in your fittings.
- Work with profiles that have a central seal (triple seal).
- Reduce downtime before welding
- Automate profile preparation, even in small batches.
- Operate safely and easily, even with inexperienced staff.
Request the technical brochure now or speak with an expert.
Maximum precision in frame door closures. Say goodbye to forced fittings.
The GC3-SL is the milling machine designed to tackle one of the most common and insidious problems in the welding of profiles for fixtures: the accumulation of molten material beneath the seal. If left unaddressed, this defect leads to forcing and difficulties in fitting the glass, compromising the quality of the finished frame.
The GC3-SL allows for the quick and precise removal of excess material, both internal and external, ensuring clean and perfect surfaces for subsequent welding. It is ideal for companies working with PVC profiles, with or without a central gasket, guaranteeing a flawless door-to-frame closure.
The simultaneous processing of two pieces, millimetric mechanical adjustments, and maintenance-free high-frequency motors make this machine an essential tool for those seeking efficiency, precision, and zero rework.
5 Reasons to Choose GC3-SL
- Say goodbye to glass installation issues. Prevent material buildup under the seal that hardens and hinders the insertion of the glass.
- Perfect door closure on the frame. The precise milling ensures the correct fitting of the profiles, eliminating gaps or misalignments.
- Maximum versatility. Also suitable for profiles with a central seal, ensuring an optimal seal in every configuration.
- Zero maintenance for engines. High-frequency engines designed to operate without regular servicing.
- Fast and Repeatable Processing. Precise mechanical adjustments and manual selectors for quick and secure setup on various profile shapes.
Product Details
The GC3-SL is designed to ensure the precise removal of excess material at the ends of profiles, preventing distortions and issues during the welding process.
Machine dimensions
Length: 1300 mm
Width: 1300 mm
Height: 1100 mm
Weight: 235 kg
Performance
Operation: manual
Operators required: 1
Work Cycle: simultaneous processing of 2 pieces
POWER SUPPLY and Consumption
Installed power: 1.5 kW
Power Supply Voltage: 230 V – Single Phase
Air consumption: 100 Nl/min
Minimum operating pressure: 7 bar
Workable profiles
Profile width: from 40 to 130 mm
Profile height: from 40 to 180 mm
Supported features and processes

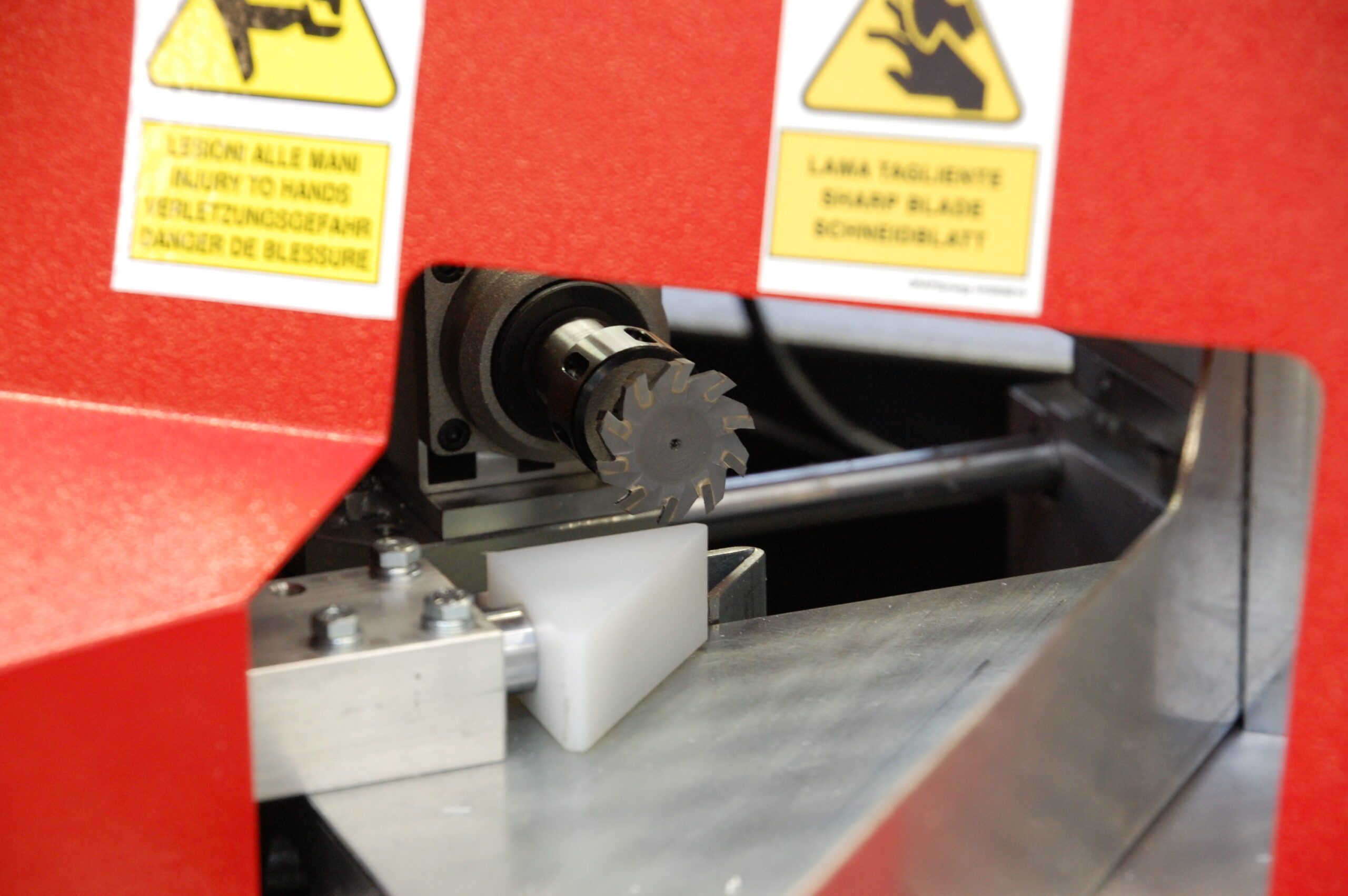

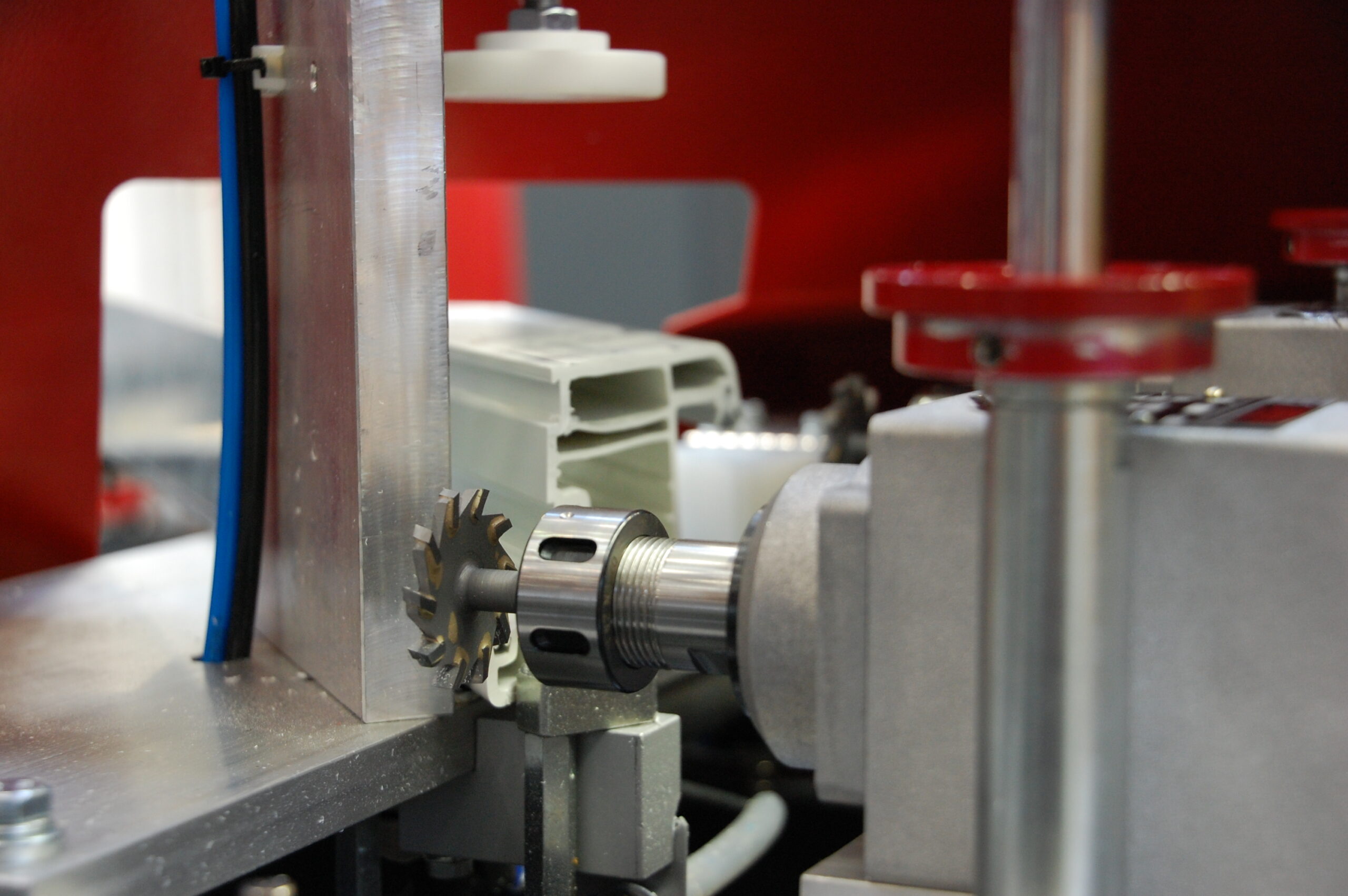

The two adjustable milling groups allow for both the internal and external sealing to be processed in a single cycle, reducing time and ensuring perfect repeatability.
Main processes:
- Milling of the internal and external gasket
- Preparation of the profile end for welding
- Contemporary processing of two pieces
Optional and available variants
The car is offered in a full version, also compatible with central seal profiles.
The GC-SL variant is available upon request, specifically designed for profiles without a central seal, catering to those seeking a targeted and simplified solution.
No additional options or accessories are included.
