GS 225 A
Compact single-head cutting machine for PVC glass stops
Simple, precise, reliable: the essential choice for quality cuts
Perfect for:
- Craft workshops or small workshops requiring high precision
- Who is looking for an intuitive and safe solution for cutting glass stops?
- Facilities that operate on small batches or custom orders
- Productions that require flexibility in the measurement system
- Environments where operational space is limited
Request the technical brochure now or speak with an expert.
Double cut on a compact and reliable structure
The GS 225 A is a single-head cutting machine designed for the simultaneous cutting of two PVC glazing beads of the same length.
With pneumatic blade advancement and dual-hand control, it ensures safety and ease of operation.

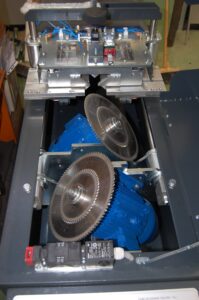

Thanks to a cutting set with 2 main blades of Ø 225 mm and 2 secondary blades of Ø 103 mm, it also performs precise trimming of the fastening foot.
The cutting cart is fixed at a 45° angle, and the machine is stabilized by universal counter-templates and vertical pneumatic clamps.
5 reasons to choose the GS 225 A
- Compactness and simplicity. Lightweight structure (190 kg) and compact dimensions, ideal for any production environment.
- Double cutting in a single cycle. Optimize your time by working on two glass stops simultaneously with perfect synchronization.
- Consistent Precision Over Time. High-quality blades and pneumatic clamps with a low-pressure device ensure reliable cuts.
- Versatile Length Measurement System. Compatible with manual calipers or electronic rollers to fit the customer’s layout.
- Safety and Ease of Use. The two-handed controls and ergonomic design ensure immediate and safe operation.
Product Details
The GS 225 A performs precise and refined cutting of PVC glazing beads. The dual main and secondary blades allow for clean operations, while the universal counter profiles ensure compatibility with most profiles.
Sizes
Length: 1,200 mm
Width: 700 mm
Height: 1,300 mm
Weight: 190 kg
Performance
Operations: manual
Operator required: 1
Frames produced/8h: varies depending on the measurement system used
POWER SUPPLY and Consumption
Installed power: 1.2 kW
Voltage: 400 V
Minimum Pressure: 7 bar
Air consumption: 60 Nl/min
Workable profiles
Minimum length: 250 mm
Maximum length: based on the corresponding measurement system
Optional features and available configurations
The machine can be enhanced with functional accessories based on operational needs:
- Glass Presence Simulator
- Measuring gauge (2,000 or 3,000 mm)
- MSS/V side support for gauge (compatible with MS 3.000)
- Custom-made countershapes (pair)
- Specific chip vacuum for glass cutters
- Bar loading roller conveyor
Operational simplicity and adaptability
The GS 225 A model combines ease of use with adaptability to various line configurations. It can be integrated into both manual and automatic measurement systems, consistently maintaining a high cutting quality.
Choose a compact yet comprehensive solution: request your quote or a demonstration of the GS 225 A today.
