HDMV
Automatic station for hinge assembly on PVC and aluminium frames
Automate hinge assembly and boost productivity without compromising on precision and space
Perfect if you want:
- Significantly reduce hinge assembly times.
- Automate drilling, insertion, and screwing in a single cycle.
- Working with consistent precision even on already welded frames.
- Seamlessly integrate the process into an automated line.
- Save space and labour
Request the technical brochure now or speak with an expert.
Automate hinge assembly and boost productivity without compromising on precision and space
HDMV is a multi-axis CNC workstation designed to fully automate the drilling, insertion, and screwing of hinges onto PVC or aluminium frames, including intermediate posts.
Thanks to its electro-welded steel structure and a system of horizontal and vertical pneumatic clamps, it offers absolute stability and millimetric precision in every operation.

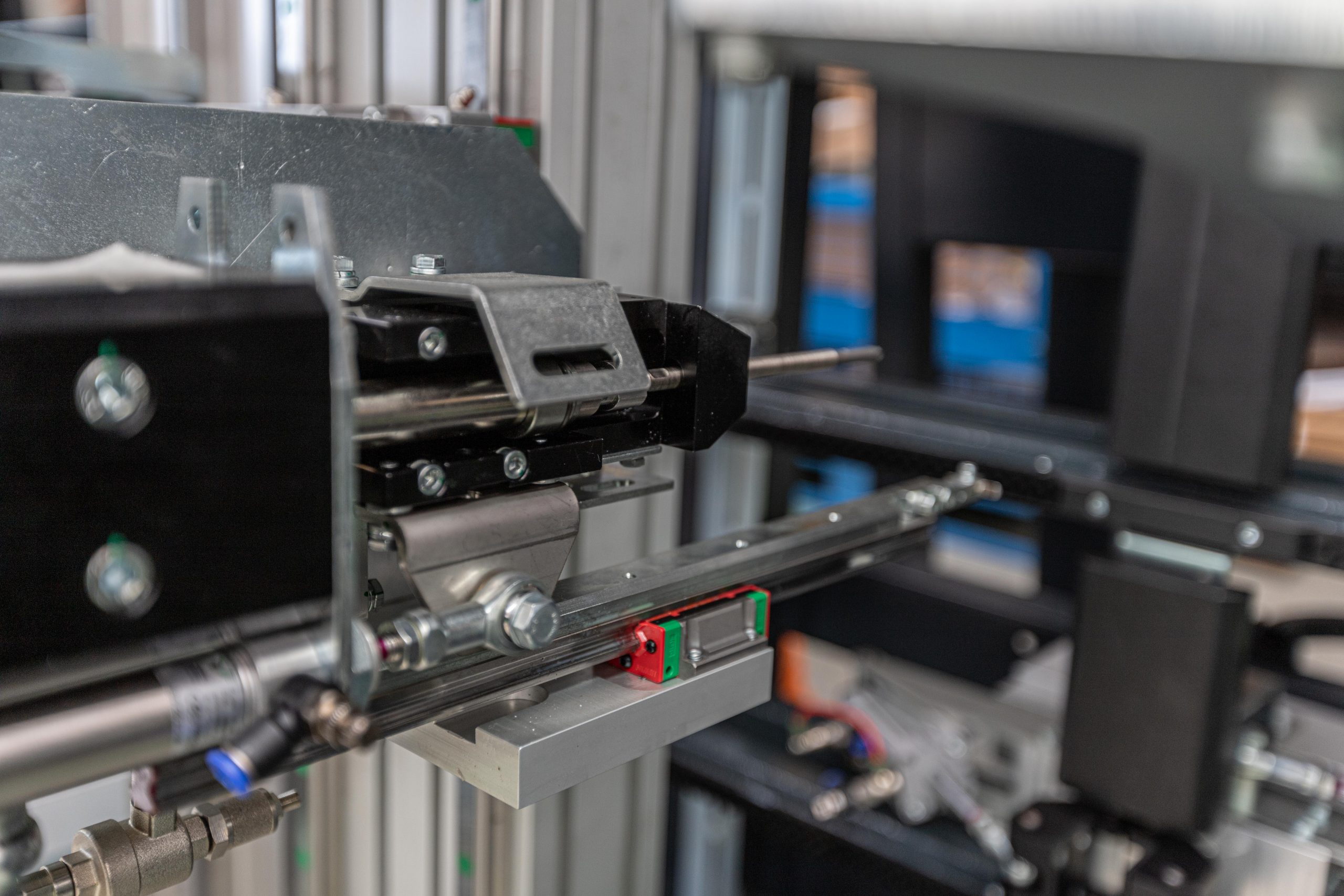

The workbench is equipped with a multi-head system for simultaneous drilling, hinge storage, automated gripping hands, and screwdrivers with automatic screw loading.
The system autonomously detects the internal width of the glazing bead groove to accurately determine the position of the holes.
An ideal solution for integrating the assembly phase into a fully automated production line.
5 Reasons to Choose HDMV
- Fully Automatic Assembly. It manages every stage without continuous manual intervention: positioning, drilling, inserting, and screwing.
- Guaranteed accuracy through active measurements. The system automatically detects the glass stop groove and perfectly positions each hole.
- Seamless Integration. It easily connects to welding machines and other workstations for a continuous production flow.
- Compact yet comprehensive. A single machine for three complex processes, featuring a space-saving design.
- Intuitive interface and quick setup. The CNC setup is user-friendly, even for operators with little experience.
Product Details
HDMV is a multi-axis CNC workstation designed to fully automate the drilling, insertion, and screwing of hinges onto PVC or aluminium frames, including intermediate posts.
Machine dimensions
Length: 8,200 mm
Width: 4,700 mm
Height: 3,000 mm
Weight: 3.500 kg
Operational Performance
Operators Required: 1 (for loading hinges and screws only)
(*time varies depending on frame type and configuration)
POWER SUPPLY and Consumption
Installed power: 10 kW
Power Supply: 400 V
Minimum operating pressure: 8 bar
Air consumption: 100 Nl/min
Workable profiles
Usable Frame Sizes: up to 3,200 x 2,800 mm (depending on the welding machine’s capacity)
Supported features and processes
HDMV automatically performs all operations of:
- Drilling frames and intermediate studs
- Installation and screwing of hinges
- Automatic detection of the glass stop quarry
- Screwing with automatic depth adjustment
- Automatic reset sequence at the end of the cycle
Optional and configurations
Available upon request for maximum flexibility:
- Loading on the right or left side
- Oversized mat for ‘Dormat Large’ profiles
- Dual heads for various hardware brands
90° rotating heads for drilling transom windows
Technology and automation
HDMV integrates a CNC system with advanced sensors and automation. Every operation is traceable and can be managed remotely. The machine is designed for integration with management systems and Industry 4.0 environments, enabling predictive maintenance.
