LINEAR CUT 500
High-efficiency compact CNC cutting center
Automation, precision, and versatility to optimise every bar
Perfect for:
- Production departments looking to automate the cutting process.
- Locksmiths looking for a precise and easy-to-use machine.
- Workshops focused on high productivity in compact spaces
- Companies looking to maximise the value of every bar with optimisation software.
- Who wants a system with high resale value (Buy Back)?
Request the technical brochure now or speak with an expert.
Smart cutting with complete autonomy
The Linear Cut 500 is a CNC cutting centre with 3 or 4 controlled axes (depending on the configuration), designed to perform all operations autonomously: loading, alignment, cutting, and unloading of PVC profiles.

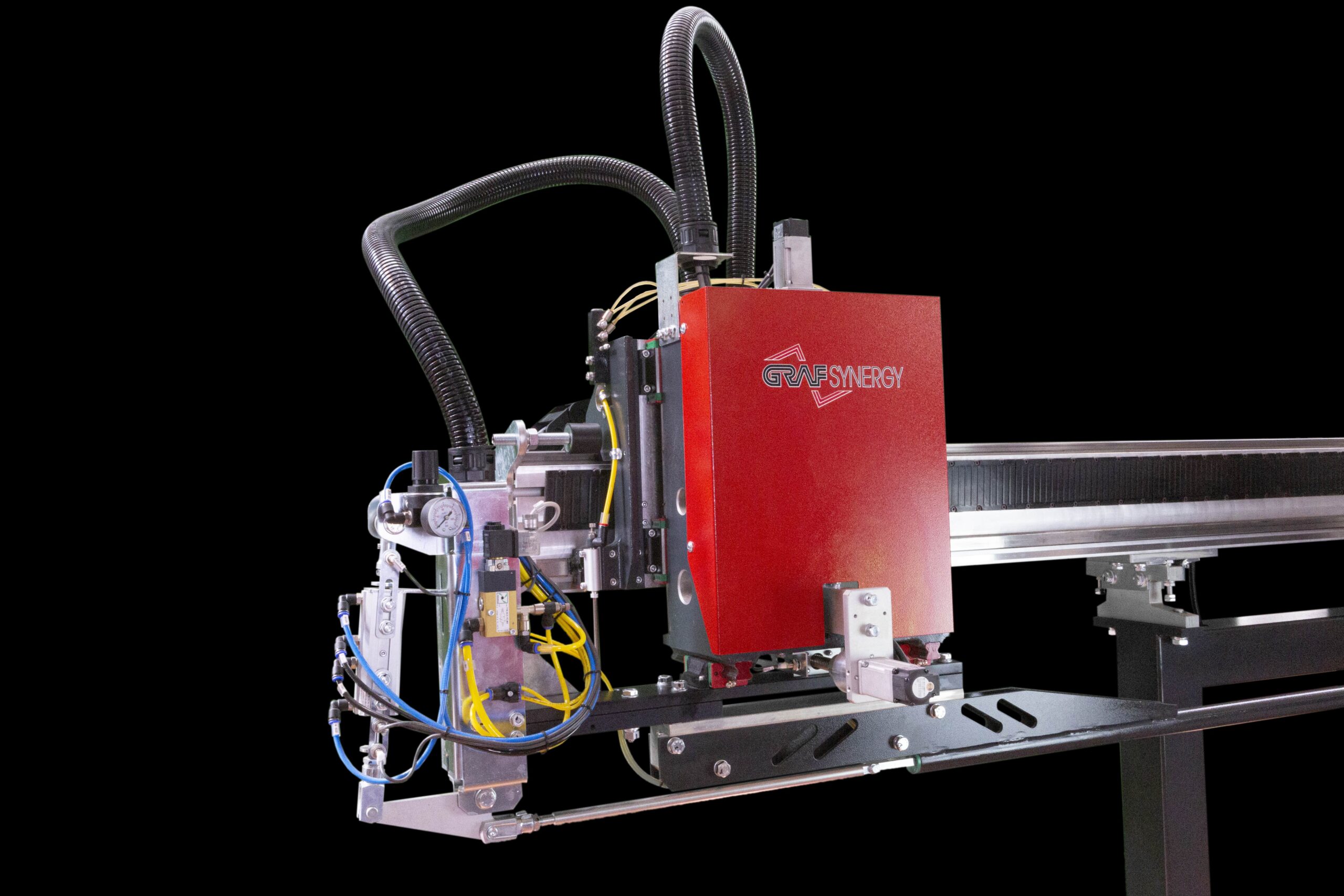

The system includes an 8-bar loading warehouse, a 2-axis CNC clamp on linear guides, and a cutting module with an upward blade of Ø 500 mm, allowing for clean cuts at -45° / 90° / +45°.
The automatic extractor and the unloading warehouse ensure a continuous and safe flow.
Why choose the Linear Cut 500?
- Versatility and Compactness. It adapts to various production layouts, delivering high performance in a small space.
- Production Optimization. The GRAF Synergy software enables waste reduction and optimised management of cutting lists.
- Guaranteed precision over time. Bar alignment system and decimal position reading via magnetic strip.
- Simple and Intuitive Technology. User-friendly interface for clear and quick management of the production cycle.
- High resale value. Built with high-performance materials and technologies, it retains its economic value over time.
Product Details
High-precision angled cutting of PVC profiles (including those with seals), with angles ranging from -45° to +45°.
The entire process is automated and can be integrated into smart factory systems.
Size
Length: 15,000 mm
Width: 2,800 mm
Height: 2,000 mm
Weight: 2.200 kg
Performance
Up to 300 windows/8 hours (1 panel)
Operators required: 1
POWER SUPPLY and Consumption
Installed power: 7 kW
Voltage: 400 V
Minimum pressure: 7 bar
Air Consumption: 200 Nl/min
Workable profiles
Length: 700 to 6,500 mm (optional 400 mm)
Width: 40 to 130 mm
Height: 40 to 135 mm
Optional features and available configurations
The Linear Cut 500 can be configured to further enhance its productivity and adaptability:
- Fly Optimizer: automatic reuse of leftover bars
- Blade Ø 550 mm with clamps for profiles up to 180 mm
- Brushless motor for intermediate angle cuts
- Manual Labeler
- Sensors for Profile Height/Width Control
- Horizontal Morse System for Sections up to 230 mm
- NRT 500 / NRT/CP Chip Conveyors
- 2-Bag Vacuum Cleaner, 4 Outlets Ø 100
- Extended unloading table or opposite side
- Preparation for ASG-E
- V-Notch Cutting Group
Integration 4.0 and advanced management
The software for the Linear Cut 500 allows you to import lists, optimize cycles, and monitor the entire production process. Integrable with ERP and MES systems, it represents a strategic choice for companies focused on digitalization.
Automate the cutting process, maximize your yield: request a consultation for the Linear Cut 500 today.
