LINEAR CUT 500 ALU
CNC Cutting Center for Aluminium Profiles
Maximum productivity, perfect cutting, and complete automation in just 12 meters
Perfect if:
- Do you want to automate the cutting of aluminium profiles while reducing human intervention?
- You need high productivity across three shifts with a reliable machine.
- You work with imperfectly straight profiles and are looking for automatic correction.
- You have limited time to train the operators, and you need user-friendly software.
- Do you want to maximize the yield of the raw material through optimized cutting?
- Are you looking for an Industry 4.0-ready solution to integrate into a complete line?
Request the technical brochure now or speak with an expert.
Maximum productivity, perfect cutting, and complete automation in just 12 meters
The LINEAR CUT 500 ALU is a 3-axis CNC cutting centre designed to autonomously carry out the complete cutting cycle on aluminium profiles. From feeding raw bars to depositing the finished piece, it operates continuously without the need for constant supervision, optimising workflows and reducing waste. It combines hundredth-of-a-millimetre precision, operational flexibility, and an intuitive interface, making it ideal for companies looking to enhance their cutting department with a focus on efficiency and consistent quality.
5 Reasons to Choose the LINEAR CUT 500 ALU
- Guaranteed long-term automatic precision. Thanks to the dynamic alignment system and the CNC clamp with hundredth-millimetre magnetic band, every cut is accurate in relation to the actual linearity of the bar.
- Higher yield on every cut bar. GRAF Synergy software optimises the entire production list, reducing waste and improving material efficiency.
- Simple interface, professional results. The proprietary software with guided menus makes it accessible even for less experienced users, minimising the learning curve.
- Total autonomy of the work cycle. Loading, positioning, cutting, and unloading occur in sequence without the need for supervision, with continuous process monitoring.
- Ready for the evolution of your production department. Compatible with screw fastening modules, labelling systems, advanced sensors, and custom solutions for special profiles.
Product Details

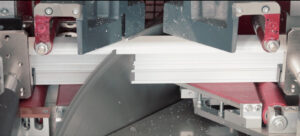

The LINEAR CUT 500 ALU allows for precise cuts on aluminium profiles, including custom angles, across multiple consecutive bars. The complete automation of the process ensures a consistent output without manual errors.
Sizes
Length: 12,500 mm
Width: 2,200 mm
Height: 2,000 mm
Weight: 3.000 kg
POWER SUPPLY and Consumption
Installed power: 7 kW
Power Supply: 400 V
Air consumption per cycle: 100 Nl/min
Minimum operating pressure: 7 bar
Performance
Productivity: up to 300 windows/8h (1 leaf, varying based on the profile)
Required Operators: 1
workable profiles
Length: 500 / 6,500 mm
Width: 40 / 130 mm
Height: 40 / 135 mm
Supported features and processes
Main processes:

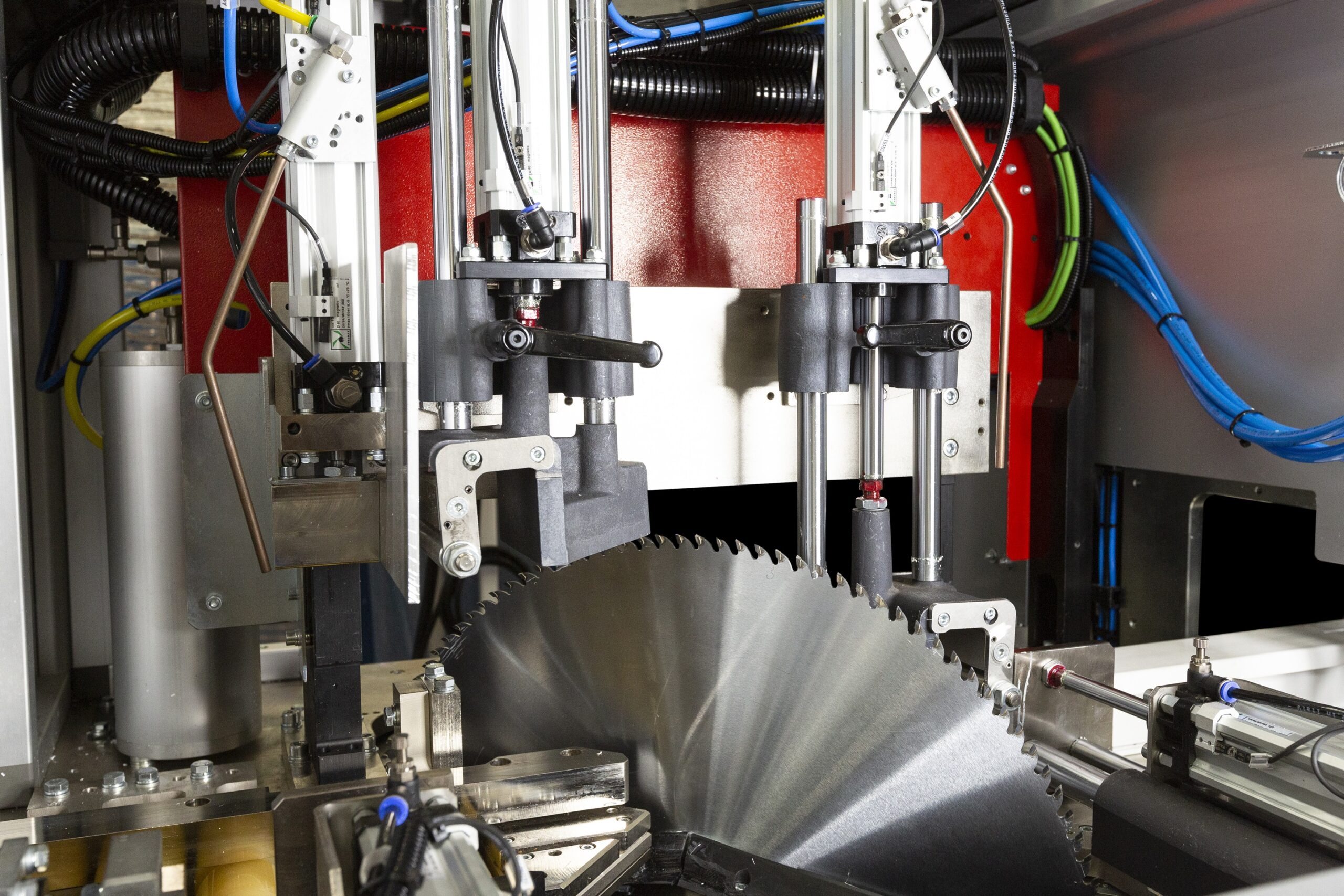

- Cutting with a Ø 500 mm blade
- Angles -45° / 90° / +45°
- Non-linear automatic correction bar
- Automatic unloading with extractor and safety photocells
Optional available
- Loader for bars from 400 to 700 mm
- Blade Ø 550 mm for profiles up to 180 mm
- Additional pressure kits for complex profiles
- Brushless blade rotation for intermediate angles
- Fly Optimizer for automatic reuse of leftovers
- Download extension and profile control sensors
- Manual labeler and chip conveyor
- Integration with ASG-E fastening centers
- Special configurations for sections up to 230 mm
- Preparation for PVC cutting
Each LINEAR CUT 500 ALU can be customised to perfectly meet specific production needs, thanks to a wide range of optional configurations, including:
TECHNOLOGY AND AUTOMATION
The machine is managed by an intuitive proprietary software that allows for quick setup of operations, optimisation of sequences, and real-time monitoring. Integrated smart sensors ensure correct positioning and immediate identification of any loading errors. The CNC gripper on prismatic guides, the optional brushless blade rotation system, and the automatic piece extraction complete a technological ecosystem designed for efficiency, reliability, and Industry 4.0 integration.
Contact us to find out if the LINEAR CUT 500 ALU is the right solution for your production.
