RP BM
Support roller for cutting PVC and aluminium profiles
Stable reference and easy sliding for every cut
Perfect if…
- Use manual cutters for cutting glass stops or profiles.
- You need a stable and adjustable support system.
- You work with PVC or aluminum profiles of various lengths.
- Are you looking for a sturdy, durable, and easy-to-integrate roller conveyor?
- Do you want to ensure accuracy in measurement and ease of material handling?
- Are you short on space and looking for a modular support available in various sizes?
Request the technical brochure now or speak with an expert
Stable reference and easy sliding for every cut

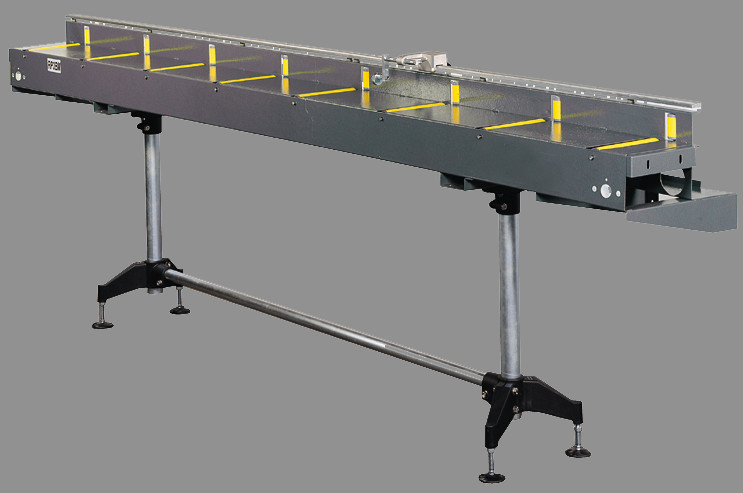

The RP BM roller conveyor by GRAF Synergy is the ideal solution for supporting and aligning profiles during cutting, especially when using manual mitre saws for glass stops or profiles.
Designed to ensure maximum stability and ease of use, it guarantees a smooth and precise workflow in the handling of cut pieces.
Why choose RP BM?
- Sturdy and Durable Structure. Welded steel frame with adjustable and drillable feet for maximum stability even in industrial environments.
- Optimal Profile Sliding. Horizontal and vertical PVC rollers to facilitate the movement of cut pieces, reducing effort and the risk of damage.
- Maximum reference precision. Manual sliding stop with guide and millimetre scale for the precise positioning of workpieces.
- Adaptable to all production needs. Available in 4 lengths (3.6 / 4.6 / 5.6 / 6.6 m), with a load capacity of 18 kg per linear meter and suitable for bilateral use.
- Compatible with GRAF Synergy cutting machines. Available upon request with brackets for direct connection to the most common glass cutting machines in the Graf range.
Product Details
The RP BM roller conveyor from GRAF Synergy is the ideal solution for supporting and guiding profiles during cutting, especially when using manual saws for glass stops or profiles.
Available sizes
Model 3: 3,600 x 500 x 1,200 mm – 120 kg
Model 4: 4,600 x 500 x 1,200 mm – 130 kg
Model 5: 5,600 x 500 x 1,200 mm – 140 kg
Model 6: 6,600 x 500 x 1,200 mm – 150 kg
load capacity
18 kg per linear metre
Usage
Discharge side, on both sides
Positioning
Manual on using a millimetre scale
Structure
Electrowelded steel with adjustable feet
Rollers
Horizontal and vertical PVC
Optional and configurations
The BM RP can be equipped, upon request, with accessories to enhance operational efficiency and integration into the production line. The optional brackets allow for direct anchoring to GRAF Synergy cutting machines, ensuring stability and perfect alignment.
The RPV version is also available, featuring a movable stop with a flyer for positioning and electronic measurement reading, making it ideal for those who require quicker and more precise adjustments.
Request your custom setup now
Contact us for a personalised consultation on the version that best suits your production needs.
Download the technical brochure or request a tailored quote: the GRAF Synergy team is ready to assist you in making your choice.
