RP E S9
Roller with Electronic Positioning for Precise Profile Cutting
The smart reference for every manual cut
Perfect if…
- You work with profiles that need to be cut using manual saws, and you require greater precision.
- Do you want to reduce human errors in measuring lengths?
- You need to integrate cutting lists from management software or external files.
- Are you looking for a solution that is compatible with barcode and wireless scales?
- Do you want to automate positioning while maintaining flexibility of use?
- You have limited space but high efficiency needs.
Request the technical brochure now or speak with an expert.
The smart reference for every manual cut
The RP E S9 roller conveyor is the ideal solution for optimising cutting operations on manual saws.
Thanks to its integrated electronic positioning system, it allows for consistently accurate and repeatable measurements, eliminating manual errors and speeding up the setup process.
Perfect for those working with glass stops and PVC or aluminium profiles, it is available in various lengths up to 6,600 mm and is designed to support and guide the pieces being cut with horizontal and vertical PVC rollers, ensuring smooth operation and stability.
5 Reasons to Choose RP E S9
- High-Precision Electronic Positioning. Direct measurement input from keyboard, barcode reading, lists from USB/network, or reception from wireless gauge.
- Smart mobile cutting tool. It automatically retracts after each cut to make it easier to remove the piece and speed up the operator.
- Operational and Dimensional Versatility. Available in 4 lengths (from 3,600 to 6,600 mm), it supports up to 18 kg/m and can be installed on either side of the mitre saw.
- Up to 495 programmable corrections. Advanced profile management with 99 presets, dynamic corrections, and customisable options based on the type of cut.
- Ready for digital integration. Compatible with radio frequency gauges, barcode readers, and LAN networks for full Industry 4.0 connectivity.
Product Details
The RP E S9 is designed to provide an accurate reference during cutting, reducing setup times and minimising waste. The electronic system allows for the storage of up to 99 different profiles, each of which can include specific adjustments for horizontal or vertical operations.
Available sizes
Model 3: 3,600 x 800 x 1,400 mm – Weight 140 kg
Model 4: 4,600 x 800 x 1,400 mm – Weight 150 kg
Model 5: 5,600 x 800 x 1,400 mm – Weight 160 kg
Model 6: 6,600 x 800 x 1,400 mm – Weight 170 kg
Performance
Load capacity: 18 kg per linear meter
Operation: 1 operator
POWER SUPPLY and Consumption
Installed power: 0.5 kW
Power supply: 230 V single-phase
Supported features and processes

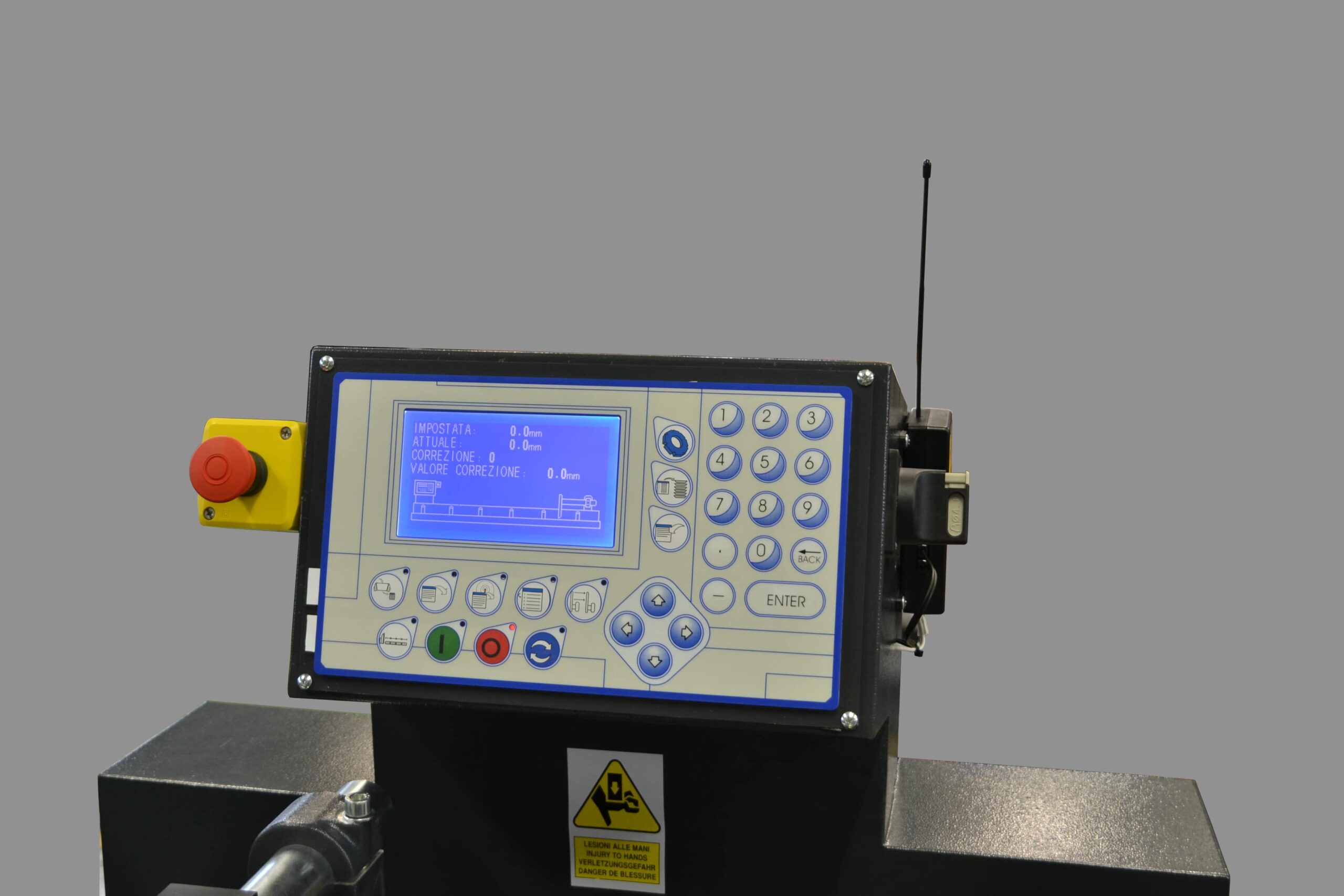

Each cut is supported by a motorized movable blade that automatically repositions itself, ensuring sustained rhythms and a continuous workflow. The 6-inch graphical interface allows for immediate and intuitive control of all settings.
Optional and configurations
To enhance the capabilities of the RP E S9 roller conveyor, various options are available:
- MSK 25 / G233 Kit for radio transmission of gauge readings
- Wireless CCD barcode reader for automatic profile identification
- 10/100 Mb network card for connecting to the business management system.
- Electrical connection for manual saws for complete automation of cutting lists.
Technology and automation
The RP E S9 control system is designed to provide intuitive and scalable automation. In addition to storing and managing custom profiles, it supports:
- Dynamic adjustments based on profile length and type of stroke (up to 495 combinations)
- Receiving quotes via wireless calibration or barcode
- Graphical user interface with visual messages and real-time displayed quota
- Selectable operation between absolute or percentage mode.
Do you want to improve the accuracy of your cutting department?
Download the complete brochure or contact us for a personalised consultation on RP E S9: find out how to integrate it into your production process and immediately boost efficiency and quality.
