SD 500 S7
High-capacity double-head mitre saw for PVC and Aluminium
Quick and precise cuts, even on double profiles with variable angles
Perfect if…
- We produce PVC or Aluminium frames and seek maximum cutting flexibility.
- Do you want to cut two profiles at the same time to boost productivity?
- Are you looking for a precise, stable, and reliable machine that can handle high volumes?
- You need to make quick angle changes without adjusting the lengths.
- Work with the need for intermediate cuts thanks to dedicated mechanical stops.
Request the technical brochure now or speak with an expert.
Quick and precise cuts, even on dual profiles with variable angles

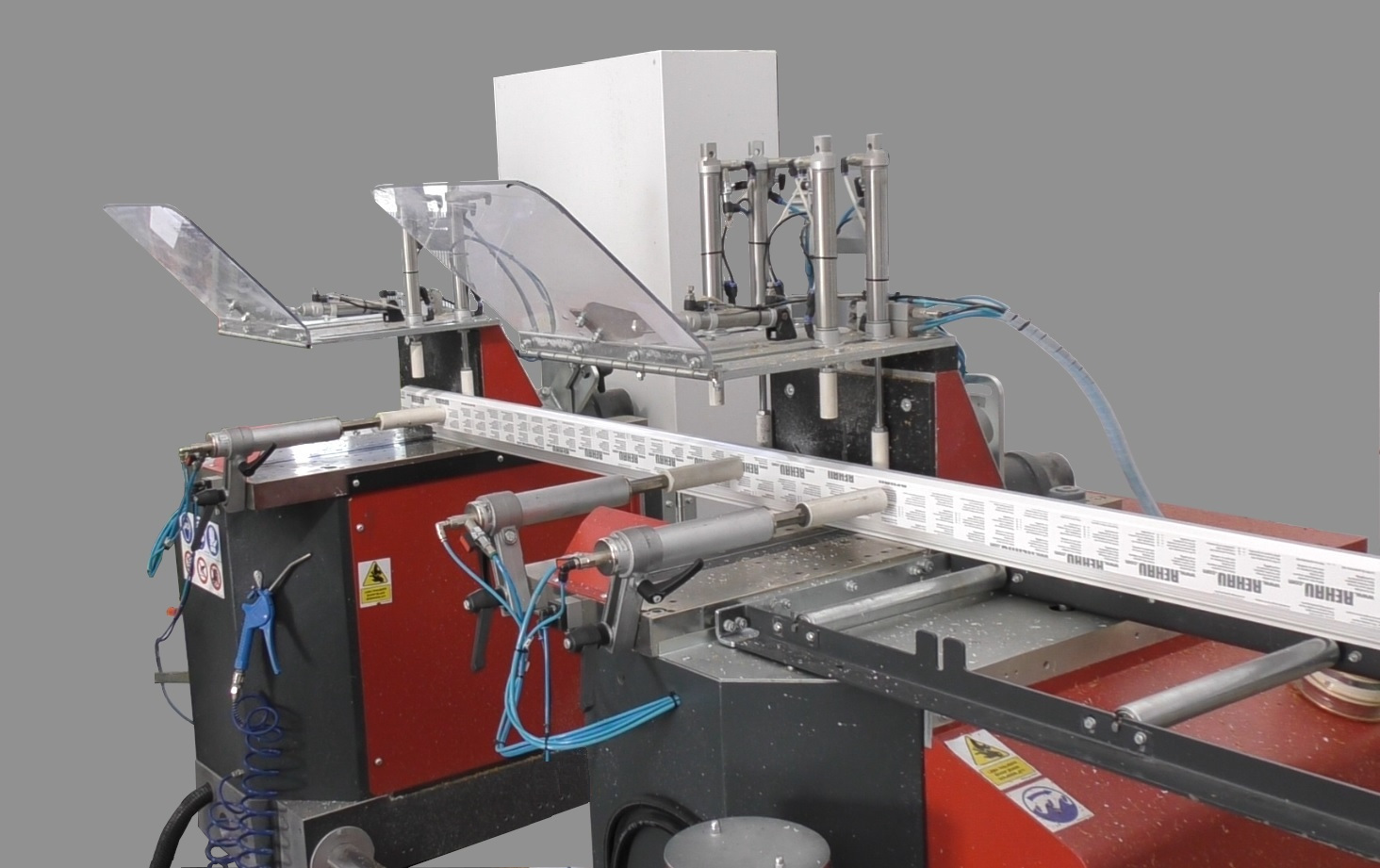

The SD 500 S7 is a double-head, electronically controlled, oil-pneumatic mitre saw designed for the precise and repeatable cutting of PVC and aluminium profiles.
Equipped with a fixed head and a movable head with automatic positioning via a controlled axis, it allows for quick and flexible operations, making it ideal for high-frequency industrial production.
The sturdy steel and aluminium structure ensures stability and long-lasting durability, while the vertical lift system for the 500 mm diameter blades with internal pneumatic tilt (from 90° to 45°) eliminates the need for manual adjustments at angled transitions.
The control is managed by a sliding control panel with dual-handed operation for maximum safety and ergonomics.
5 Reasons to Choose the SD 500 S7
- Ultra-robust structure. Steel and aluminium frame designed for stability and precision even under heavy use.
- Simultaneous cutting on double profile. The Ø 500 mm blades with extended stroke allow for processing two pieces at the same time.
- No measurement correction. Internal pneumatic tilt from 90° to 45°: quick and precise angle changes without manual adjustments.
- Cutting Versatility. It handles Aluminium and PVC profiles, with multiple configurations and intermediate cuts thanks to the mechanical stops.
- Optimised suction and clamps. Equipped with 4 Ø 100 mm openings for chip extraction and vertical/horizontal pneumatic clamps to securely hold profiles.
Product Details
The SD 500 S7 allows for precise and clean cuts on single or double profiles, even with complex angles. The two vertical rising blades and the oleopneumatic system ensure stability and consistent quality. The two-handed control, combined with the sliding control panel, optimises ergonomics for the operator.
Sizes
Length: 4,500 mm
Width: 1,300 mm
Height: 1,650 mm
Weight: 1.050 kg
Operational Performance
Mode: manual or automatic (import cut list via USB or Ethernet network)
Usable cutting length: from 325 mm to 5,300 mm*
Operators required: 1
(*maximum length varies based on the base: 3,300 / 4,300 / 5,300 mm)
POWER SUPPLY and Consumption
Installed power: 6 kW
Voltage: 400 V three-phase
Minimum pressure: 7 bar
Air consumption per cycle: 40 Nl/min
Workable profiles
Materials: PVC and Aluminium
Configurable Cuts: +45°/-45°, +45°/90°, 90°/-45°, 90°/90°
Optional features and available configurations
- Bases of 4,300 or 5,300 mm
- Fixed and movable roller conveyors
- Two-bag vacuum cleaner (4 outlets Ø 100 mm)
- Mechanical stops for short and pointed cuts
- Short pointed cutting group with pneumatic waste disposal
- Manual labeler
- Custom-shaped counter profiles (single or double cut)
- Software for cutting long strips and extra-long profiles
- Fly Optimizer: software for dynamic bar optimization
Technology and automation
Controlled by an advanced electronic system, the SD 500 S7 enables automatic management of the cutting cycle and direct import of production data. It is designed for integration into Industry 4.0 systems with remote assistance, traceability, and digital management.
Contact GRAF Synergy today to receive the detailed brochure and find out how the SD 500 S7 can enhance the productivity of your cutting department.
