SD 500 S7 ALU
Double-miter saw for aluminium and PVC profiles
Fast and precise cuts, even on double profiles. The ideal saw for those seeking productivity, versatility, and zero rework.
Perfect if:
- You need to cut aluminum or PVC profiles with high precision.
- You need to get angled cuts without adjusting the length.
- Do you want to cut two profiles at the same time?
- Are you looking for a simple and reliable system that lasts over time?
- You work on variable contracts and want a flexible machine.
- You have limited space but don’t want to compromise on productivity.
Request the technical brochure now or speak with an expert
Fast and precise cuts, even on double profiles. The ideal saw for those seeking productivity, versatility, and zero rework.

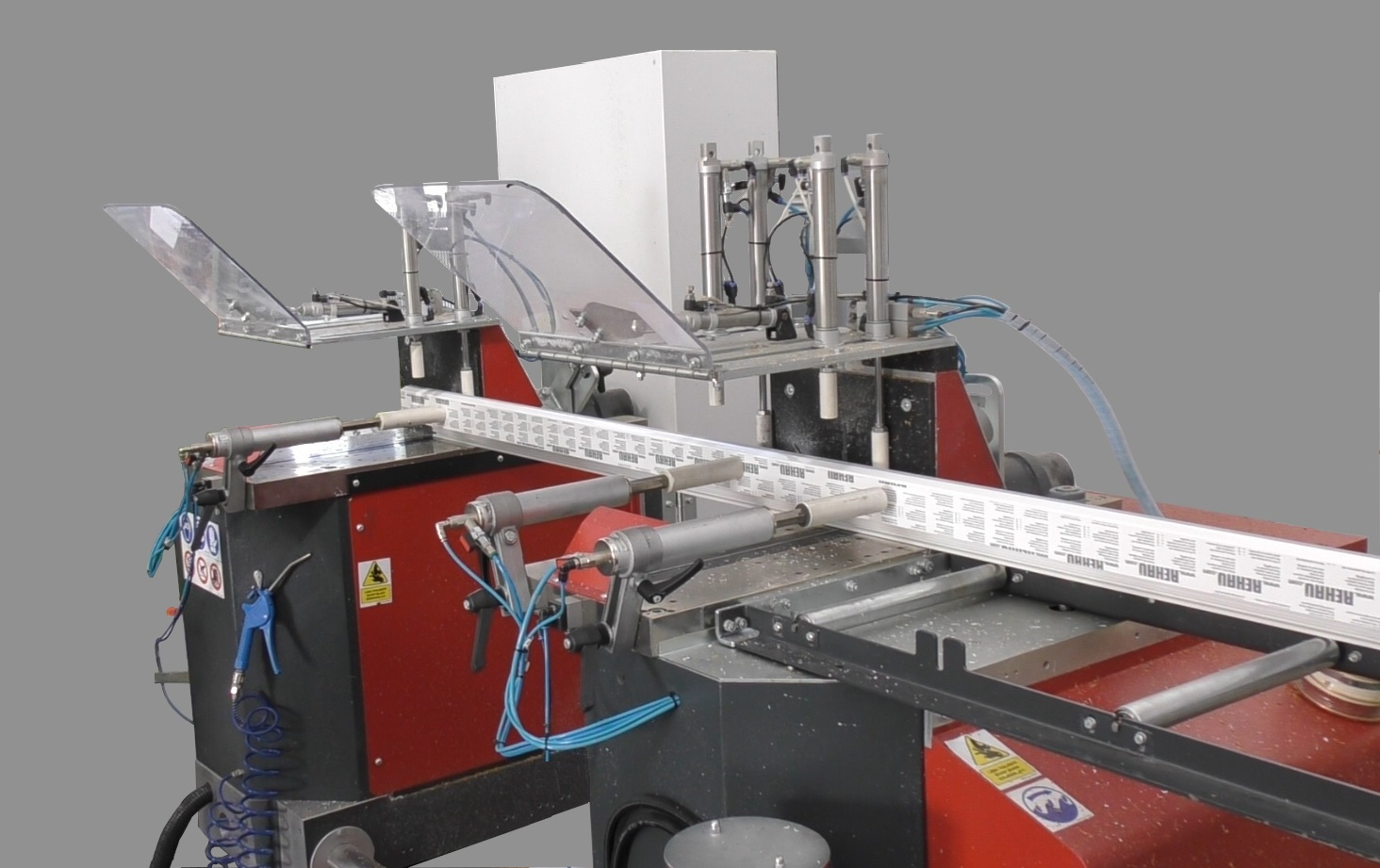

Electronic-controlled double-miter saw with pneumatic operation for cutting aluminium profiles, featuring a fixed head and a movable head with automatic length positioning via a controlled axis.
The system is equipped with two vertical lift blades with a diameter of 500 mm, featuring pneumatic head tilting between 90° and 45° inwards. This allows for smooth cutting without the need for length adjustments when transitioning between different angles.
Thanks to their extended stroke and the cutting capability of the blades, it’s possible to cut two profiles simultaneously.
5 Reasons to Choose the SD 500 S7 ALU
- Ultra-robust structure. Made from steel and aluminium, it ensures stability, durability, and consistent precision over time.
- Simultaneous Double Cutting. Thanks to the two Ø 500 mm blades with an extended stroke, you can cut two profiles in a single cycle, effectively doubling productivity.
- Automatic Pneumatic Tilt. The heads tilt from 90° to 45° inwards without the need for manual adjustments, making angle changes easier.
- Application Versatility. Ideal for aluminium and PVC, even for cuts at intermediate angles using dedicated mechanical stops.
- Intuitive Controls and Advanced Operation. A dual-hand system and a sliding control panel enhance safety and operational comfort. Compatible with automatic cutting lists.
Product Details
The SD 500 S7 is designed to provide maximum flexibility for cutting aluminium and PVC profiles. The dual vertical blade system allows for precise and repeatable operations at various angles. The automatic pneumatic tilt significantly reduces setup times and the risk of error.
Sizes
Length: 4,500 mm
Width: 1,300 mm
Height: 1,650 mm
Weight: 1.050 Kg
POWER SUPPLY and Consumption
Installed power: 6 kW
Power Supply: 400 V
Air consumption per cycle: 40 Nl/min
Minimum operating pressure: 7 bar
Performance
Operating Mode: manual / automatic
Operators required: 1
Usable cutting length
Minimum length: 325 mm (including cuts at +45°/-45°)
Maximum length: depending on the base (3,300, 4,300, 5,300 mm)
Supported features and processes
Possible cuts:
- +45° / 90°
- +45° / -45°
- 90° / -45°
- 90° / 90°
Optional available
The machine is customizable with various accessories to meet every production need. The base is available in three lengths and can be equipped with roller conveyors, vacuum systems, and marking systems. Thanks to the Fly Optimizer software, it is possible to reuse leftovers by optimising each bar.
Main options:
- Vacuum cleaner with 2 bags (4-outlet version)
- Manual labeler
- Custom templates
- Short pointed cutting group with pneumatic waste disposal
- Mechanical stops for pointed cuts or short cuts
- Fly Optimizer for waste optimization
- Software for small teams and large cuts
- Fixed and movable roller conveyors
Technology and Automation
The SD 500 S7 ALU combines precision mechanics with intelligent control. The positioning of the moving head is managed through a controlled axis, while the blade cooling system with Venturi effect and the 100 mm diameter suction ports ensure cleanliness and longevity of the components.
The system is compatible with automatic import of cutting lists via USB or LAN, making it easy to integrate with major business management software. This makes the saw ready for Industry 4.0 applications.
Contact us to find out if the SD 500 S7 ALU is the right solution for your production.
