SL2 FF DIA
CNC Double-Head Welder for PVC Windows without a Sill
The world’s first to weld two corners simultaneously, without a bead.
Perfect if…
- Do you want to remove the curb at the corners to achieve a flawless aesthetic quality?
- Works on complex profiles, coated or with non-weldable inserts.
- You need to reduce cycle times and manual rework.
- Manage dimensional tolerances between profiles and seek an automatic correction.
- Do you want to simplify welding by entrusting it to a single operator?
Request the technical brochure now or speak with an expert.
The world’s first to weld two corners simultaneously, without a bead.

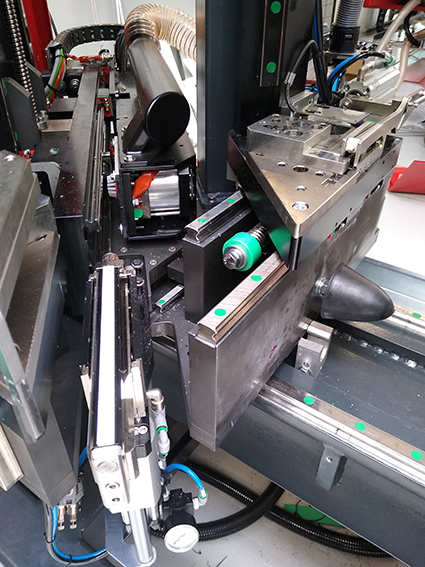

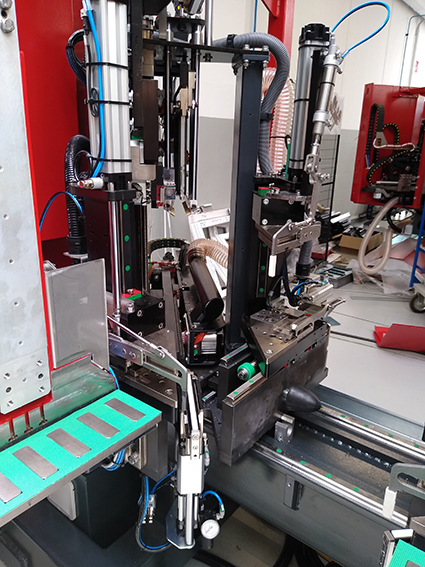

The SL2 FF DIA is the first and only CNC horizontal welder with 2 heads capable of completely eliminating the weld seam, ensuring PVC fittings with a perfect aesthetic finish even on coated profiles or with non-weldable inserts.

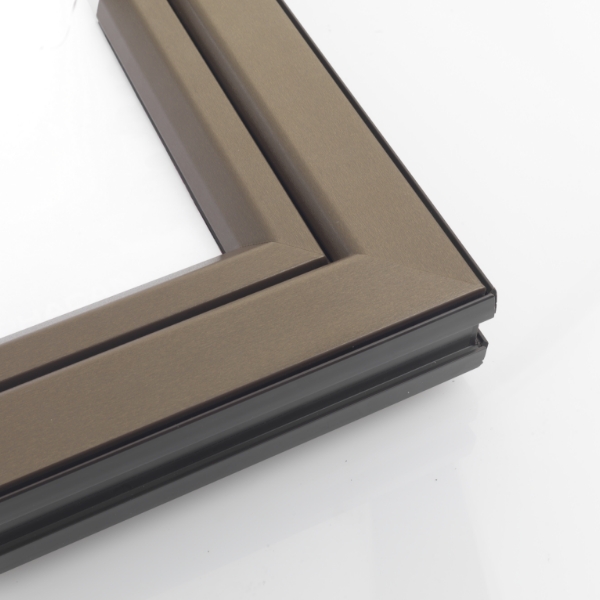

Thanks to the patented V-Perfect technology, it is perfect for working with painted, laminated, acrylic PVC profiles, or those combined with materials such as aluminium, wood, or fiberglass. The result? Smooth, continuous corners, ready for assembly, with no need for touch-ups or reworking.
Compact, fast, and fully automated, SL2 FF DIA is designed to maximize productivity with a single operator, eliminate post-processing, and seamlessly integrate into Industry 4.0 lines.Adapt this content naturally and fluently into US English. Content:
5 reasons to choose SL2 FF DIA
- Seamless Welding. Thanks to the patented V-Perfect system, the finish is perfectly smooth without removing any material.
- No post-welding rework. The profile comes out of the machine fully finished: no cleaning, milling, or manual correction is required.
- Single Operator. Fully automated management: the operator loads and unloads, and the machine takes care of the rest.
- Maximum material compatibility. Perfect for coated profiles, acrylics, films, painted surfaces, or those with aluminum or fibre inserts.
- Automatic Tolerance Compensation. An intelligent system calibrates profiles and corrects any dimensional differences in real time.
Product Details
The SL6 FF TR fully automates seamless welding, even on profiles with non-weldable inserts (fibreglass, aluminium, resin).
Machine dimensions
Length: 6,000 – 7,500 mm
Width: 3,000 mm
Height: 2,400 mm
Weight: 2,500 – 3,500 kg
Performance
Cycle time: up to 1 frame every 140 sec*
Operators required: 1
* Varies based on profiles, seals, and configuration
POWER SUPPLY and Consumption
Installed power: 16.5 kW
Voltage: 400 V
Air Consumption: 600 Nl/min
Minimum pressure: 7 bar
Operators required
1
Profiles and workable dimensions
Profile Dimensions
- Height: 35 to 180 mm
- Width: 40 to 130 mm
Weldable side between heads
- Min: 250 mm (with 70 mm profiles)
- Max: 3,500 mm (extendable upon request)
Cycle Time
- Up to 1 frame every 250 seconds (depending on profile and curb)
Optional features and custom configurations
To meet specific needs, SL2 FF DIA can be configured with:
- Weldable increase between heads over 3,500 mm (subject to technical verification)
Built-in vacuum for seamless welding
Technology and automation
SL2 FF DIA is:
- Equipped with high-precision CNC
- Equipped with a simple and intuitive interface
- Integratable into automated production systems
- Designed for Industry 4.0, with support for remote assistance and remote monitoring
Compatible with ERP management systems for complete traceability.
Do you want to eliminate welding defects and revolutionise the finish of your fixtures? Request the brochure or book a demo with our experts: SL2 FF DIA is the ultimate welder for those aiming for perfection.
