SL4 UNI
Universal 4-Head CNC Welder for Complex Angles and Beams
All geometries, one cycle, maximum productivity
Perfect if:
- Welding complete frames with cross members in a single cycle.
- Achieve maximum productivity for mixed batches and complex configurations.
- Integrate variable angle machining without changing machines.
- Working with just one operator
- Achieve an accurate edge, adjustable between 0.2 and 2 mm, even on laminated surfaces.
Request the technical brochure now or speak with an expert.
All geometries, one cycle, maximum productivity

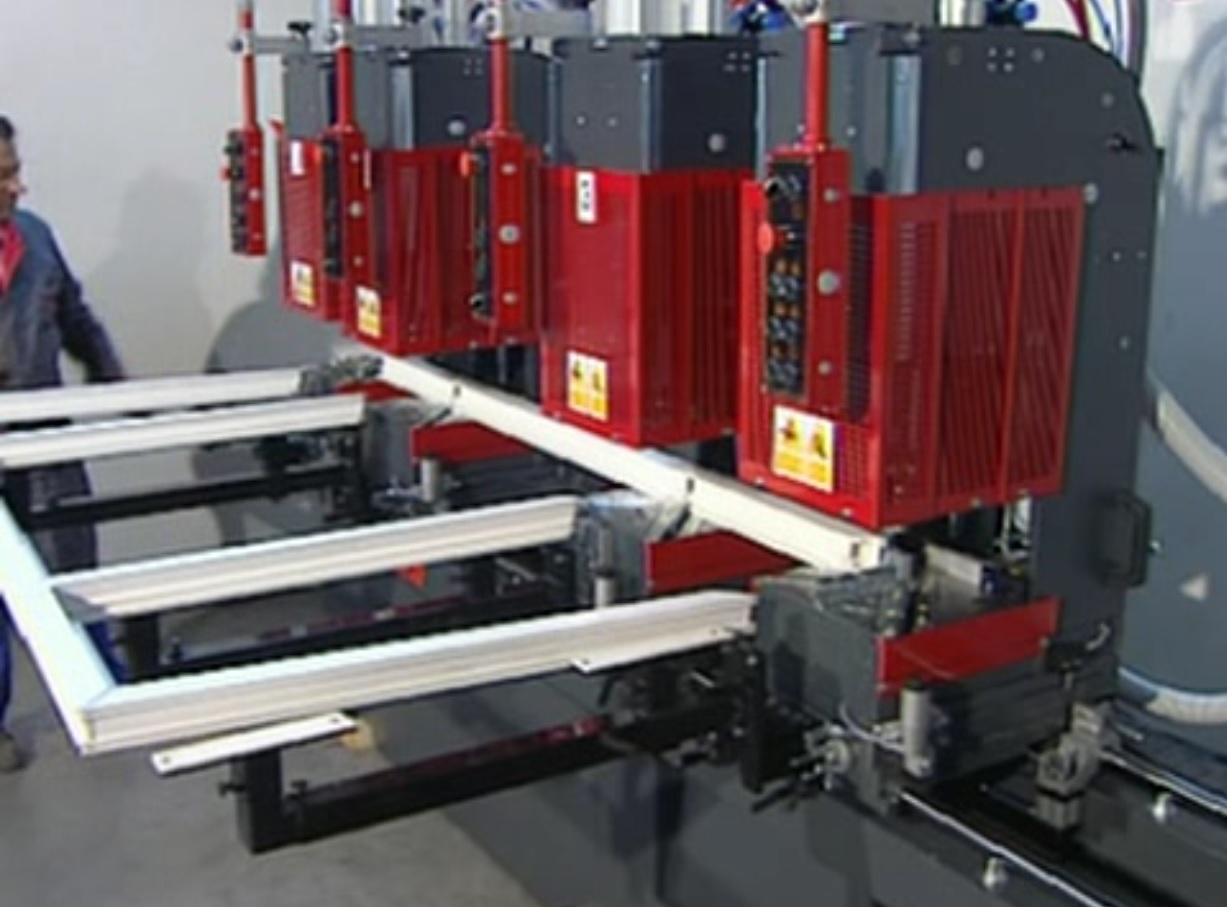

The SL4 UNI is the most comprehensive 4-head CNC welder in the Graf Synergy range. In a single work cycle, it allows for the simultaneous welding of 90° angles and internal cross members in T, Cross, or H shapes, even in combination. Additionally, two of the four heads can rotate 90°, enabling the simultaneous welding of both ends of a cross member.
The system is designed to provide maximum flexibility with weldable angles ranging from 35° to 180°, electronic temperature control, and adjustable limit knives for perfect results on any material.
5 Reasons to Choose SL4 UNI
- A machine for every geometry. Welds at 90°, ‘T’, cross, ‘H’, and variable angles from 35° to 180° in any combination.
- Combined cycles for complete fixtures. In just 2 cycles, you can create a complete window with two crossbars, ready without any further processing.
- Dual Unit Mode. Usable as two independent dual-head welders to optimise time.
- Always Keep the Curb in Check. Electronic system and adjustable blades for a perfect finish on white, painted, and wrapped surfaces.
- Quick Contour Change. Fast attachment/detachment system for setup in just a few seconds.
Product Details
SL4 UNI is the most comprehensive 4-head CNC welder in the Graf Synergy range. In a single work cycle, it allows for the simultaneous welding of 90° angles and internal cross members in ‘T’, cross, or ‘H’ shapes, even in combination. Additionally, two of the four heads can rotate 90°, enabling the simultaneous processing of both ends of a cross member.
Machine dimensions
Length: 4,000 mm
Width: 900 mm
Height: 2,350 mm
Weight: 1.520 kg
POWER SUPPLY and Consumption
Installed power: 13 kW
Voltage: 400 V
Air consumption per cycle: 180 NI/min
Operating pressure: 7 bar
Operational Features

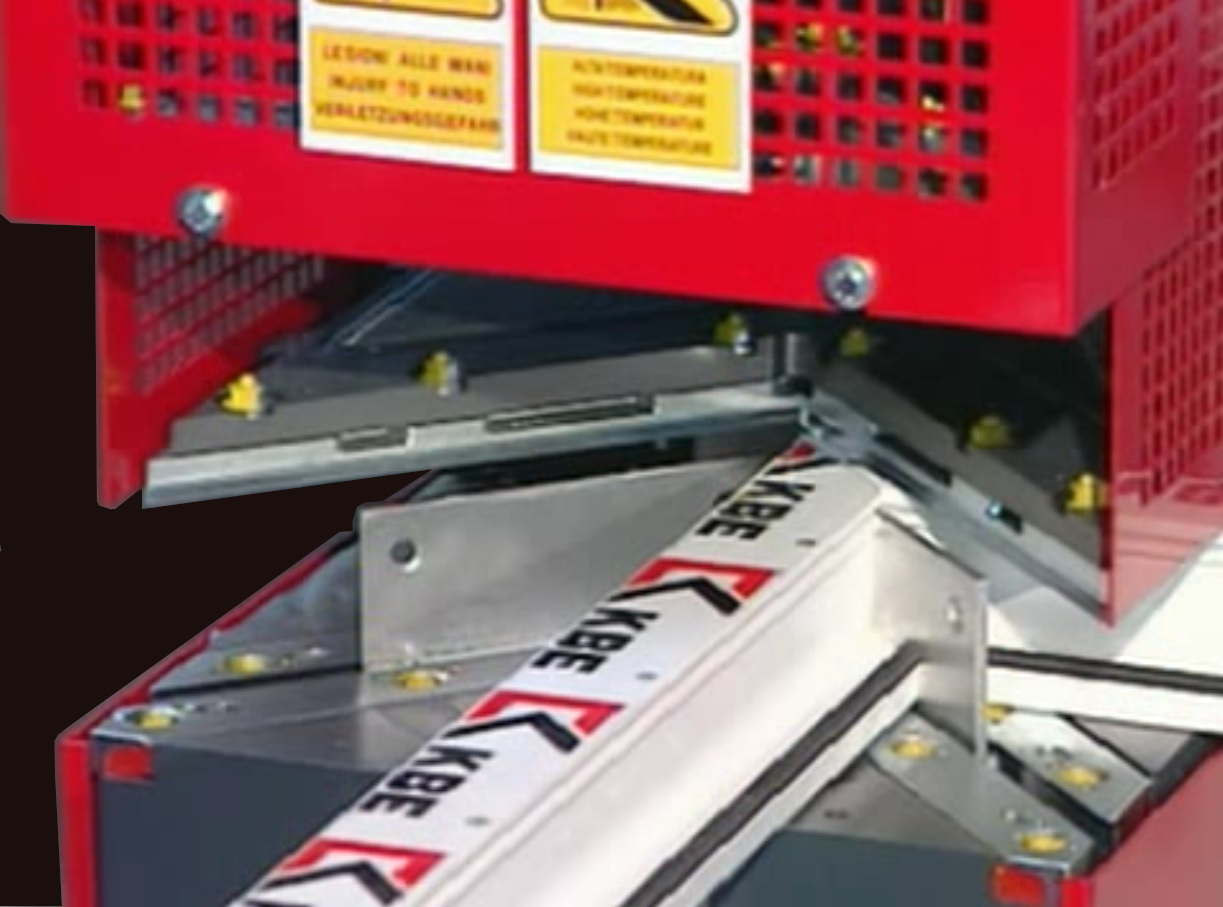

Composition: 4 inline heads (2 can rotate 90°)
Welding Types: 90° corners, T-joints, crosses, H-joints, variable angles from 35° to 180°.
Operating Modes: Multiple and Combined Welds
Operators required: 1
Working dimensions
Weldable profile:
- Height: 40 – 200 mm
- Width: 40 – 130 mm (at 90°)
Optional features and available configurations
- Enhanced base for extra sizes (total weight: 1.680 kg)
- Right head extension (L = 270 mm)
- Supplementary support arm for profile holders (1 per head)
- Custom-shaped counter jaws (Right/Left clamps, horizontal or vertical)
Technology and Automation
SL4 UNI is the benchmark for complex welding in custom productions. The system allows for the welding of mixed geometries and out-of-square angles with speed, precision, and a perfect finish.
The intuitive user interface, centralized CNC management, and quick tool change make it an ideal solution for companies that produce on demand or manage multiple configurations without compromising on quality and efficiency.
Contact us to find out if the SL4 UNI is the right solution for your production.
