SL4FF EVO RS
4-Head CNC Welder with V-Perfect Technology
The aesthetic revolution in PVC welding
Perfect if:
- Create PVC windows with a flawless aesthetic finish, even on coated profiles or mixed materials.
- Completely remove the weld bead from the corners.
- Increase productivity with shorter cycle times
- Working with a single operator
- Reduce occupied space and finishing costs.
Request the technical brochure now or speak with an expert.
The aesthetic revolution in PVC welding

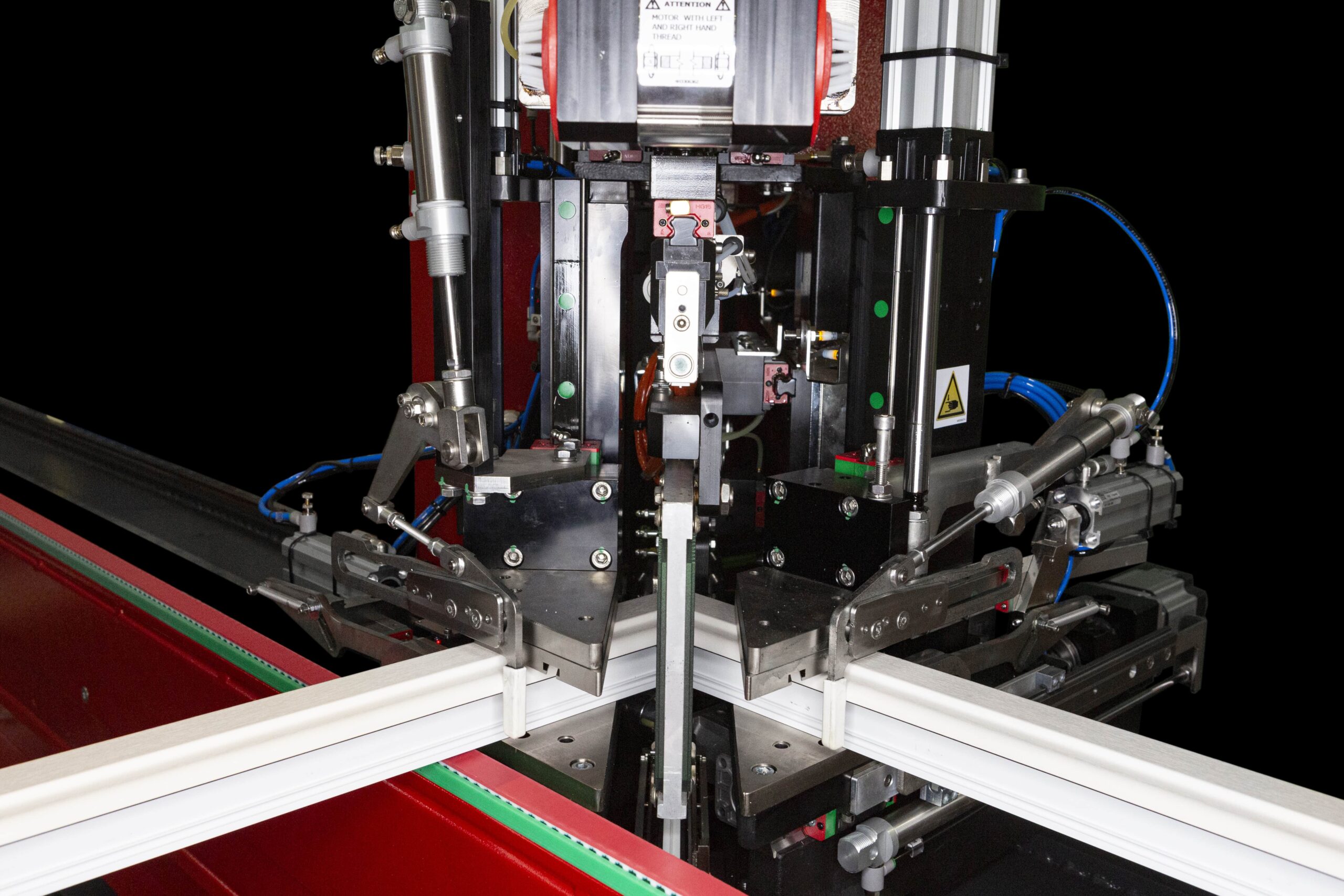

The SL4FF EVO RS is the world’s first and only CNC welder with 4 heads that can completely eliminate the bead from the corner, achieving a perfect, flat, and uniform weld even on difficult or unsolderable profiles.
Equipped with patented V-Perfect technology and an advanced axis control system, it ensures precision, speed, and superior aesthetic quality, all without the need for cleaning or touch-ups. Everything is done automatically, all in a single cycle.
5 Reasons to Choose SL4FF EVO RS

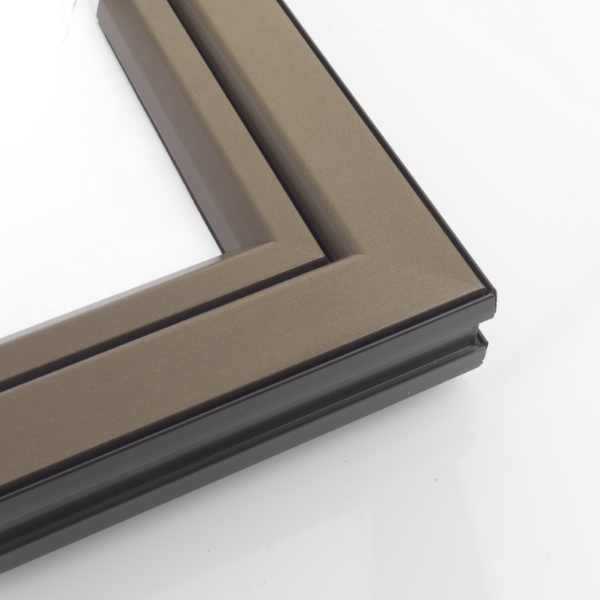

- Perfect on every material. Painted, coated, acrylic, wood or aluminium laminates: it bonds everything without leaving a bead.
- Optimized cycle time. Up to 1 full frame every 80-140 seconds* without additional processing.
- Minimal Labour. Only 1 operator is needed: the welding process is fully automated.
- Compact structure. Reduced layout: starting from just 25 m², even for special configurations.
- Automatic Tolerance Compensation. Integrated system for correcting cutting errors of up to 2 mm and height misalignments of up to 0.5 mm. (*depending on the type of profiles and seals)
Product Details
The SL4FF EVO RS is the world’s first and only 4-head CNC welding machine capable of completely eliminating the bead from the corner, achieving a perfect, flat, and uniform weld even on difficult or unsolderable profiles.
Machine dimensions
Length: 7,000 – 9,500 mm
Width: 6,000 – 7,000 mm
Height: 2,400 mm
Weight: 3,000 – 5,000 kg (depending on configuration)
POWER SUPPLY and Consumption
Installed power: 17 kW
Voltage: 400 V
Air consumption per cycle: 600 NI/min
Operating pressure: 7 bar
Operational Features
Composition: 4 Quad Heads. CNC
Welding Type: horizontal, simultaneous at all 4 corners
Operators required: 1
Seal machined directly during the cycle
Working dimensions
Weldable side:
- Minimum: 300×330 mm
- Maximum: 3,200 mm (up to 6,000 mm upon request)
Weldable profile:
- Height: 35 – 130 mm
- Width: 40 – 130 mm
Optional configurations available
- Additional heads for drilling or cross-screwing
- Electronic Control of Counter Profiles
- Mobile discharge belts with lateral translation
- FF Series Welding Fume Extractor
- C or three-sided frame door U welding
- Data conversion software for imported files
- Data production monitoring (timing, cycles, optimizations)
- Welding height up to 180 mm (upon request)
- Dedicated cooling table
- Special configurations for non-standard formats
- UL/CSA Version for International Markets
TECHNOLOGY AND AUTOMATION
The SL4FF EVO RS integrates high-speed milling, automatic positioning, fusion, compression, cooling, and release in a single continuous cycle. The burn is adjustable (5-6 mm), and the positioning of the upper counter-support is secured with magnetic locking.
The software automatically manages every parameter, while the CNC system corrects angular and dimensional errors in real time. It is the ideal welder for high-quality production, with impeccable aesthetics and maximum efficiency.
Contact us to find out if the SL4FF EVO RS is the right solution for your production.
