SL4FF WD
CNC 4-Head Welder for Wood Effect Profiles and Seamless Welding
The world’s first welder that combines a wood-effect aesthetic with seamless performance.
Perfect if:
- Remove the welding bead from the corners of the frames.
- Reproduce the wood effect accurately with 45°/90° joints.
- Working with profiles that have fiberglass, aluminum, or resin inserts.
- Reduce production time and labour costs
- Achieve flawless finishes without the need for cleaning or touch-ups.
- Integrate the welder into an Industry 4.0 line.
Request the technical brochure now or speak with an expert.
The world’s first welder that combines a wood-effect aesthetic with seamless performance.

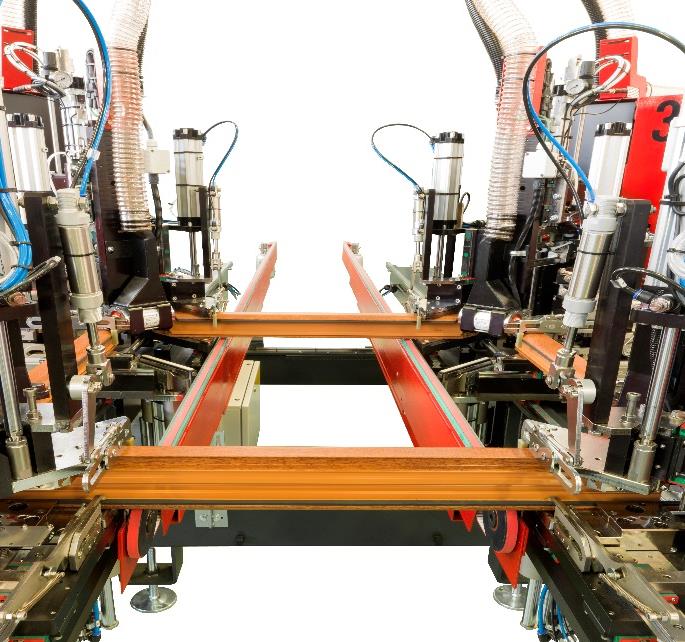

SL4FF WD is the first CNC welder with 4 heads capable of completely eliminating the welding seam from corners, producing PVC frames with superior aesthetic quality, even on complex profiles like wood-effect designs. This revolutionary technology allows for welding on two sides with different geometries (45° + 90°) to faithfully replicate the appearance of wooden windows, without compromising on strength and precision.
Thanks to the patented V-Perfect technology, the machine processes coated, painted, and laminated profiles made of wood or aluminium without the need for post-processing touch-ups. All operations – milling, positioning, melting, compression, and cooling – are fully automated and ensure consistent results even on profiles with non-weldable internal materials.
5 Reasons to Choose SL4FF WD
- Unique wood effect welding. Achieve the ‘timber look’ with the double 45° and 90° joint geometry on opposite faces.
- Seamless welds with no rework. Eliminate the bead with V-Perfect technology: smooth surfaces, no manual cleaning required.
- Maximum compatibility with special materials. Works with profiles that have non-weldable cores such as fibre, aluminium, and resin.
- Active control of the final result. Active welding system with software adjustments for tailored results.
- One operator, maximum efficiency. No need for a cleaner or a rotating table: optimising time and resources.
Product Details
SL4FF WD is the first CNC welding machine with 4 heads capable of completely eliminating the weld seam from corners, producing PVC frames with superior aesthetic quality, even on complex profiles like those with a wood effect. This revolutionary technology allows for welding on two sides with different geometries (45° + 90°) to faithfully replicate the appearance of wooden windows, without compromising on strength and precision.
Sizes
Length: 7,000 – 10,000 mm
Width: 7,000 mm
Height: 2,200 mm
Weight: 5,500 – 8,000 kg (depending on the configuration)
Performance
Installed power: 90-150 seconds per complete frame (variable)
Productivity: up to 1 frame per cycle
Operators required: 1
POWER SUPPLY and Consumption
Installed power: 28 kW
Voltage: 400 V
Air consumption per cycle: 600 NI/min
Operating pressure: 7 bar
Workable profiles
Weldable profile:
- Height: 35 to 180 mm
- Width: 40 to 130 mm
- Weldable dimensions: min. 420 x 370 mm (wood) / max. 3,500 x 6,000 mm
Supported features and processes
SL4FF WD performs simultaneous horizontal welding of the four corners of the frame, with integrated sealing in the cycle. The CNC system ensures absolute precision in operational dimensions and in the thermal management of melting and compression.
Main Processes:
- Seamless welding on 4 corners
- Timber look welding with one side at 45° and the other at 90°.
- Automated pre-welding milling
- Integrated gasket management
Special Modes:
- C Welding
- Welding of three sides for U-frame doors
Optional and configurations
To meet every production requirement, the SL4FF WD is available with a wide range of options:
- Electronic control of counterforms
- Integrated chip vacuum
- Automatic cooling table
- Mobile discharge belts with lateral movement
- Imported file conversion software
- Production data monitoring with advanced traceability
TECHNOLOGY AND AUTOMATION

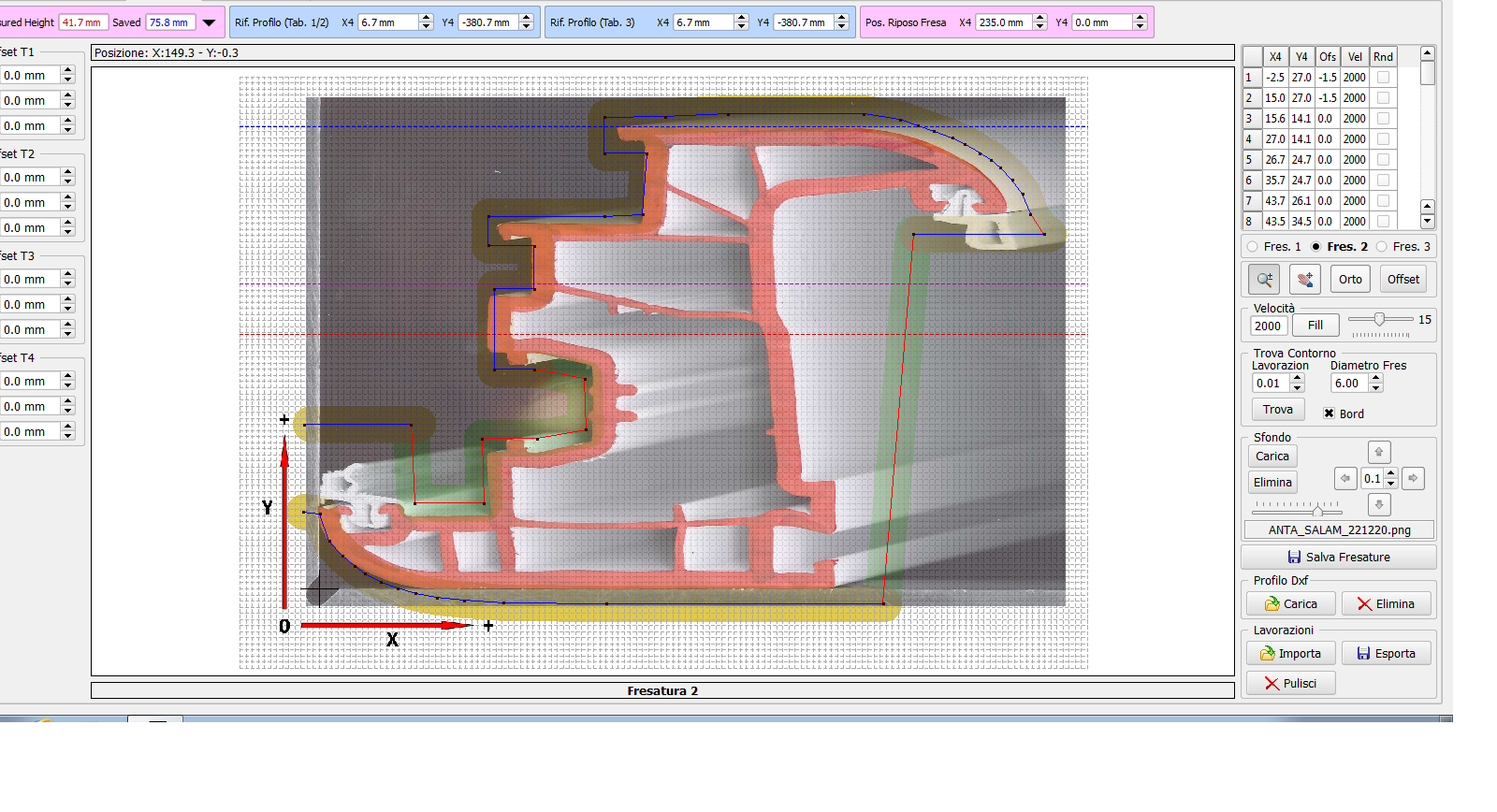

SL4FF WD integrates V-Perfect technology and an advanced CNC system to ensure complete digital control. The operator can define detailed milling parameters, moulds, and casting cycles directly from the software, anticipating the final outcome.
The machine is designed for integration into Industry 4.0 ecosystems, featuring:
- Remote control and monitoring
- Compatibility with business management systems
- Automatic backup of parameters via TAG Application
Contact us to find out if the SL4FF WD is the right solution for your production.
