SL5 UNI

Universal 5-Head CNC Welder for Variable Angles and Multiple Joints

Maximum flexibility: one machine for all window frame welding configurations

Perfect if:

Produce complex frames with multiple welded crossbars at the same time.
You need variable configurations (angles, crosses, “T”, “H”) with a single machine.
Do you want to reduce cycle times with combined multi-welding?
Are you looking for a modular and reconfigurable welder depending on the job?
You work with film-coated or painted profiles, even with irregular tolerances.
Do you want to automate the process without sacrificing operational flexibility?

Request the technical brochure now or speak with an expert.

Request information

Maximum flexibility: a single machine for all window frame welding configurations

The SL5 UNI is an extremely versatile 5-head CNC welder designed for complex machining and special configurations. It can simultaneously weld 90° angles, T-joints, cross joints, or H-joints, as well as variable angles between 35° and 180°. A dedicated selector allows it to be used as two distinct machines: a dual-head and an independent triple-head, optimising combined cycles. The cycle is fully automated, and the management technology ensures precision, stability, and repeatable quality across all types of profiles.

5 Reasons to Choose the SL5 UNI Sliding Horizontal Table

One machine, endless possibilities. Simultaneous welding of corners, cross members, and variable joints in any possible combination.
Selectable dual/triple head mode. It can operate as two distinct units: dual head + triple head, enhancing versatility and reducing time.
Precision on every type of profile. Advanced electronic system for temperature and cycle control, with knife adjustment from 0.2 to 2 mm.
Quick Change of Templates. Smart mechanical system with quick connect/disconnect feature to speed up setup and reduce machine downtime.
Suitable for critical or coated profiles. Supports large or decorative profiles, always ensuring aesthetically pleasing and dimensionally accurate welds.

Product Details

The SL5 UNI allows for the simultaneous welding of multiple points on the frame in a single phase. It’s perfect for those creating custom windows, complex fixtures, or bespoke orders with high aesthetic and structural demands.

Sizes

Length: 5,700 mm

Width: 900 mm

Height: 2,350 mm

Weight: 2.100 kg

Performance

Combined multiple welds in 2 cycles for a complete window

Manual operating mode + automated cycle

Required operators: 1

POWER SUPPLY and Consumption

Installed power: 14 kW

Voltage: 400 V

Air consumption per cycle: 225 NI/min

Operating pressure: 7 bar

Weldable profiles

Profile height: 40 to 200 mm

Profile width (at 90°): 40 ÷ 130 mm

Supported features and processes

90-degree angles and variable angles (35°-180°)

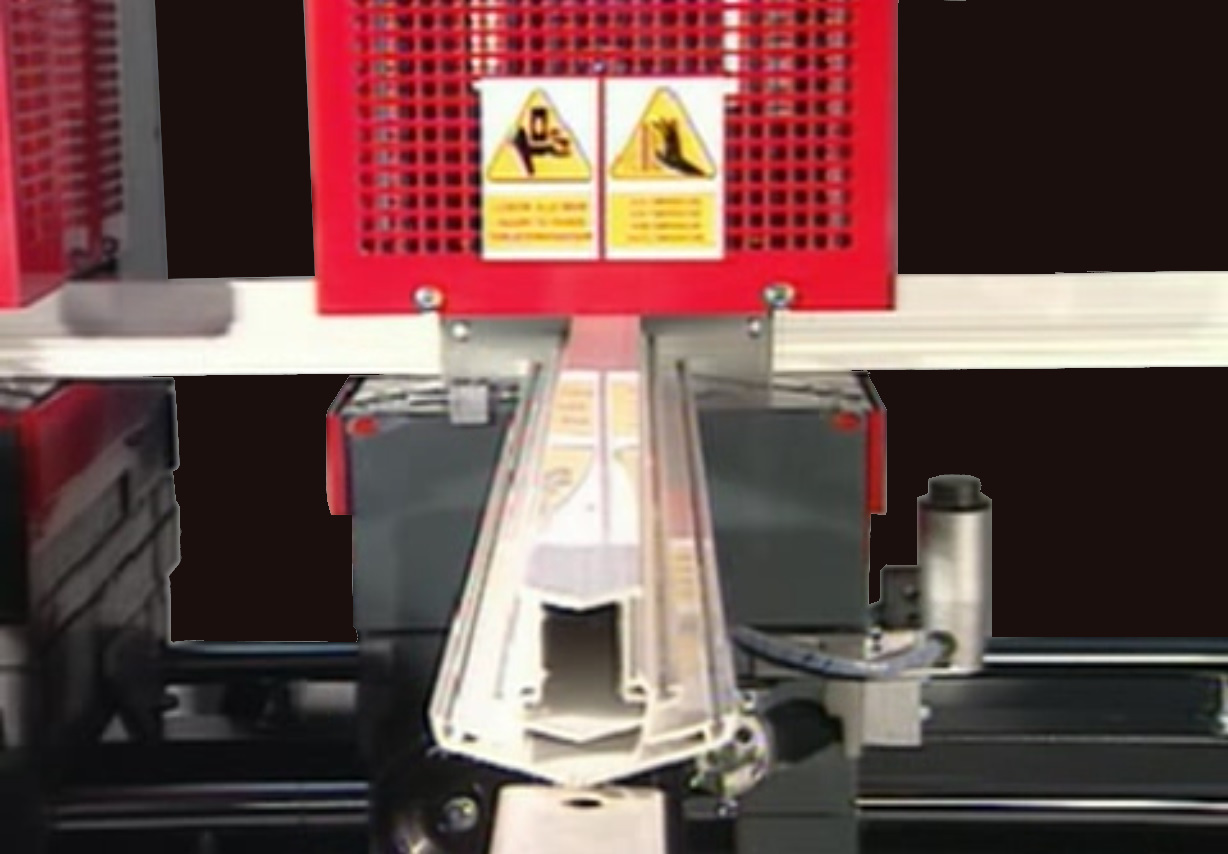

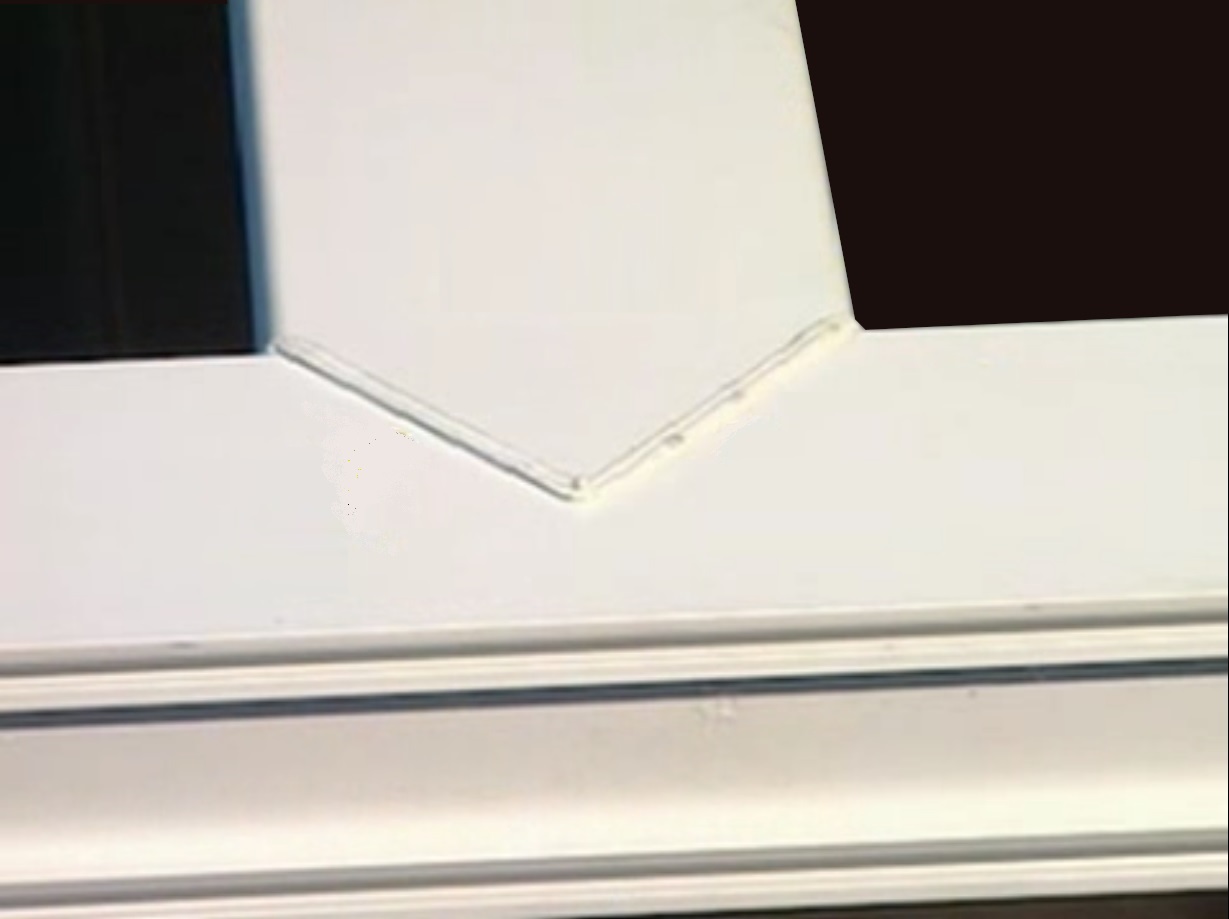

T-junctions, Cross junctions, and H-junctions
Double-ended crossbar simultaneously
Combined sequential welds
Processing of decorated and laminated profiles

Optional and configurations

To enhance its operational capabilities, the SL5 UNI can be equipped with:

Automatic cross stroke adjustment
Additional support arms for each head
Custom templates by design (left/right, horizontal/vertical)

Technology and Automation

Equipped with an advanced electronic control system, the SL5 UNI manages the entire process: from controlling the welding plates to adjusting the limit knives, adapting to every type of profile or material.
