SL8 FF TR
8-Head CNC Welder for Seamless PVC Windows
The world’s first 8-head welder that combines high productivity with a flawless finish.
Perfect if you want:
- Automate the complete welding of frames with 2 crossbars.
- Remove any cleaning or touch-up operations on the corners.
- Work with profiles coated with all types of film, acrylic, wood, or aluminum.
- Automatically compensate for the dimensional tolerances of profiles
- Reduce production times and operational staff
Request the technical brochure now or speak with an expert.
Perfect horizontal welding without a bead, even on complex profiles.

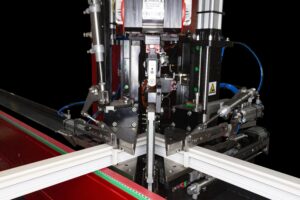

The SL8 FF TR is the world’s first 8-head CNC welder capable of performing simultaneous welding of the 4 corners at 45° and the 2 cross members at 90° in a single cycle, completely eliminating the weld seam.
The result? PVC frames with an impeccable aesthetic finish, perfectly flat and even, even on profiles with non-weldable inserts such as fiberglass, aluminum, or resin.
The automated evolution of the SL4 FF EVO, the SL8 FF TR integrates patented V-Perfect technology, allowing for a significant reduction in cycle times, labour, and footprint. It is ideal for high-productivity companies looking to eliminate any post-welding rework and automate the entire process.
5 Reasons to Choose SL8 FF TR
- One cycle for the complete frame. Simultaneous welding of the 4 corners and the 2 cross members at 90° in less than 140 seconds with just one operator.
- No rework. The Patented Seamless Welding technology eliminates the need for edge finishing: no cleaners, touch-ups, or piece-turning tables are required.
- Compatible with any coating. Painted PVC, acrylic films, wood laminates, or aluminium: a perfect finish on every surface.
- Automatic Tolerance Compensation. An intelligent system automatically corrects variations in cutting, geometry, and profile height.
- Maximum automation, minimal labour. The entire process is managed by CNC and proprietary software: you load the profile, and the machine takes care of the rest.
Product Details
The SL8 FF TR automates the entire welding process for complete PVC frames, ensuring simultaneous operations and perfect flatness of joints even on complex profiles.
Sizes
Length: 7,000 ÷ 9,500 mm
Width: 6,000 ÷ 7,000 mm
Height: 2,200 mm
Weight: 5,500 to 8,000 kg (depending on the configuration and frame size)
Performance
Cycle time: up to 1 frame every 140 seconds*
Operators required: 1
* Depends on the type of profile, seal, and curb
POWER SUPPLY and Consumption
Installed power: 22 kW
Power Supply Voltage: 400 V
Air consumption: 800 Nl/min
Minimum operating pressure: 7 bar
Workable profiles
Weldable dimensions: min. 350 x 435 mm | max. 4,000 x 6,000 mm (up to 6,000 mm upon request)
Frame: Height 35 to 180 mm | Width 40 to 130 mm
Crossbar: Height 60 to 100 mm | Width 50 to 120 mm
Supported features and processes
- Horizontal welding of the 4 corners at 45°
- Front welding of the two cross members at 90°
- C Welds
- Welding thresholds (optional)
- Integrated gasket processing in the cycle

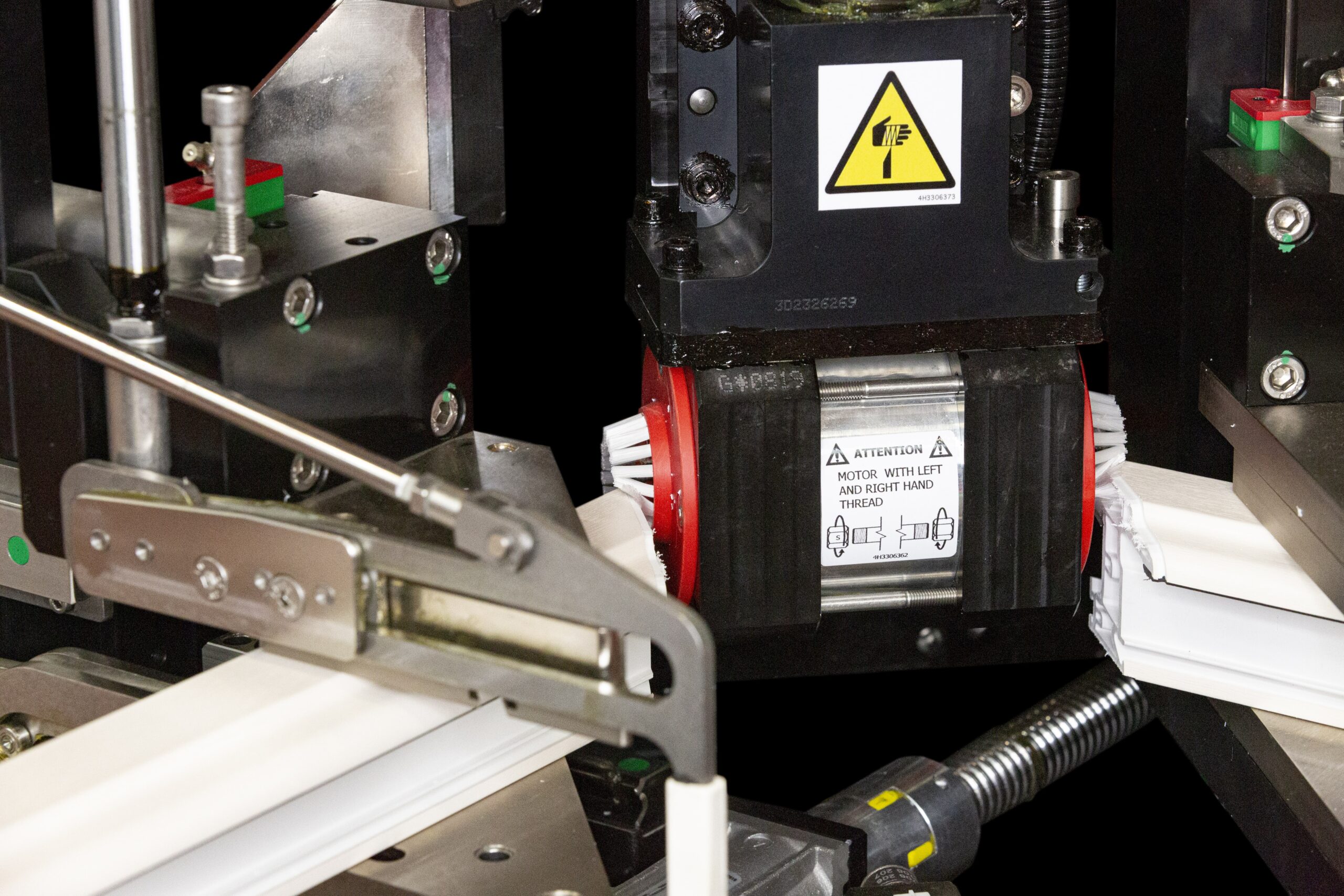

All stages are automated: High Speed milling, positioning, melting, compression, and cooling.
Optional features and custom configurations
The SL8 FF TR can be configured to meet the specific needs of each installation:
- Enhanced Cooling Table (3628, 4028, 4528, 5028)
- RS Option – Rapid Speed for accelerated cycles
- TAG Mode for remote control and tracking of templates
Processing of ‘dormant large’ profiles (French standard)
Technology and automation
Each stage is managed by CNC with proprietary software, ensuring precise, traceable, and repeatable machining. The High Speed system ensures efficient milling, while the Industry 4.0 logic enables:
- Remote Monitoring
- Predictive diagnostics
- Automatic data backup
With the integration of the TAG Application, you have full control over production and minimise machine downtime.
Download the full brochure or request a personalised consultation: our experts are ready to help you transform your production with SL8 FF TR.
