SLTV

Universal single-head welder for T-joints, crosses, and variable angles

Maximum flexibility, absolute precision: the ideal choice for complex PVC joints

Perfect if:

We create complex frames or special shapes such as cross joints, “T” joints, or “H” joints.
You need variable angles, even pushed beyond 90°, while maintaining tight tolerances.
Do you want to reduce operator intervention with an automated cycle?
Are you looking for a compact yet professional machine that’s also suitable for specialized productions?
You need a quick change of templates for various processing tasks.
Produce custom pieces for unconventional architectures or non-standard windows.

Request the technical brochure now or speak with an expert.

Request information

Maximum flexibility, absolute precision: the ideal choice for complex PVC joints

The SLTV from Graf Synergy is a single-head welding machine designed to provide maximum versatility for the most technical and complex operations. With its variable angle head, it allows for angle welds ranging from 35° to 180°, including ‘T’, cross, or ‘H’ configurations (notch welding). The fully automated cycle ensures consistency, repeatability, and a reduction in errors, even with pointed cut profiles and V-grooved counterpieces. It is ideal for manufacturers looking to expand their range of fixtures while offering a highly customised service.

5 Reasons to Choose the SLTV Horizontal Sliding Table

Weld every geometry, without compromise. The only single-head welder capable of welding at variable angles from 35° to 180°, including cross, ‘T’, and ‘H’ joints. Perfect for special or architectural productions.
Guaranteed dimensional accuracy. Every corner maintains precise settings: consistent quality, with no rework or waste.
Fully Automated Cycle. Integrated electronic control that regulates temperatures, times, and alerts for any operational anomalies.
Quick-release welding fixtures. An intelligent mechanical system for quickly replacing welding fixtures, reducing setup time.
Integrated display for intuitive control. Easy and immediate management thanks to the onboard electronic interface: less margin for error, more efficiency.

Product Details

Designed to meet even the most specific needs, the SLTV is a versatile welder that expands the range of products you can create in your facility. Its ability to weld special angles and complex joints makes it a valuable asset for workshops offering customised fixtures or for those looking to enhance the perceived value of their catalogue.

Sizes

Length: 1,250 mm

Width: 920 mm

Height: 2,300 mm

Weight: 350 kg

POWER SUPPLY and Consumption

Installed power: 3.6 kW

Voltage: 230 V single-phase

Air consumption per cycle: 45 NI/min

Operating pressure: 7 bar

Performance

Automated cycle with electronic management

Operator Manual Mode for Initial Settings

Operators required: 1

Weldable profiles

Profile height: 40 to 200 mm

Profile width (at 90°): 40 ÷ 130 mm

Variable values depending on profile type, speed, and curb size.

Supported features and processes

Variable angle welding (35°-180°)
T-joints
Cross welds
Notch welding (“H”)

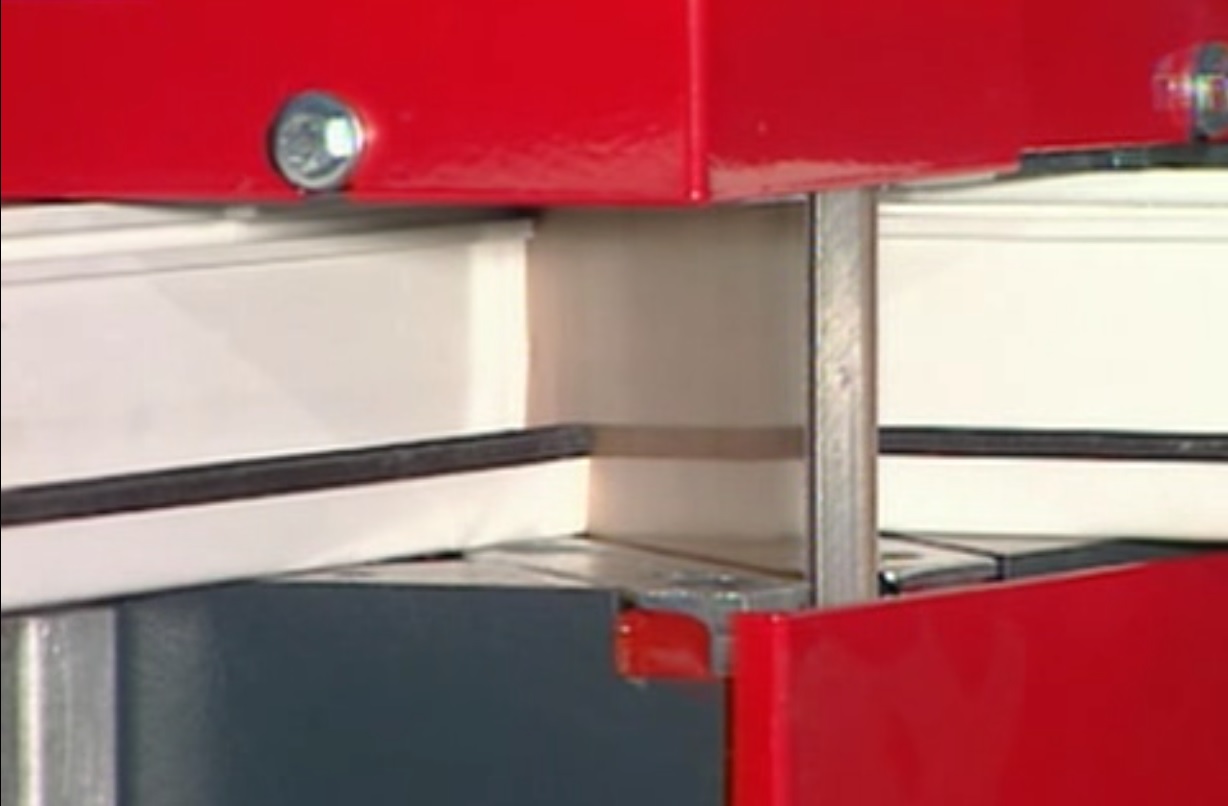

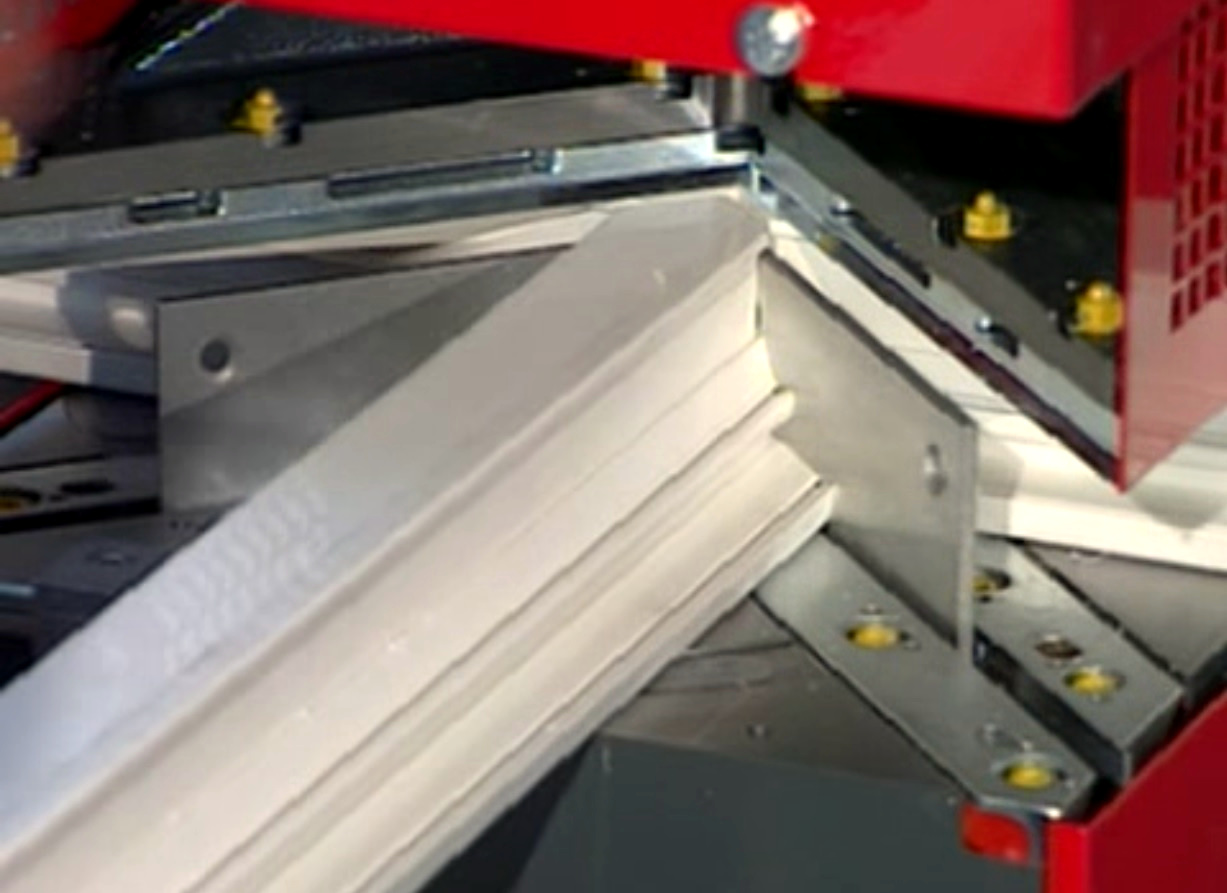

Welding pointed cross members with a backing piece and a “V” groove.

Available options

To expand operational possibilities, the SLTV can be customized with:

Custom contoured shapes based on customer designs (e.g., for two-piece joints)
Interface with measurement or pre-cutting systems (upon request)
Dedicated configurations for special profiles

The machine is also designed to be integrated into modular lines or dedicated work cells.

Technology and Automation

The technological heart of the SLTV is the integrated control system that measures welding parameters in real-time, checks for any anomalies, and promptly signals any need for intervention. This ensures continuous production, reduces waste, and enhances operational safety.
