STEEL CONNECT

CNC cutting centre for PVC metal reinforcements

Maximum efficiency in cutting and recovering metal reinforcements: less waste, more sustainability, perfect synergy with PVC

Perfect if you want…

Automating the cutting of metal reinforcements for PVC profiles
Recover metal scraps and reduce raw material costs.
Synchronize the cutting of the reinforcements with that of the profiles.
Ensure precise and continuous cuts with blade wear monitoring.
Minimise downtime and manual intervention.

Request the technical brochure now or speak with an expert.

Maximum efficiency in cutting and recovering metal reinforcements: less waste, more sustainability, perfect synergy with PVC

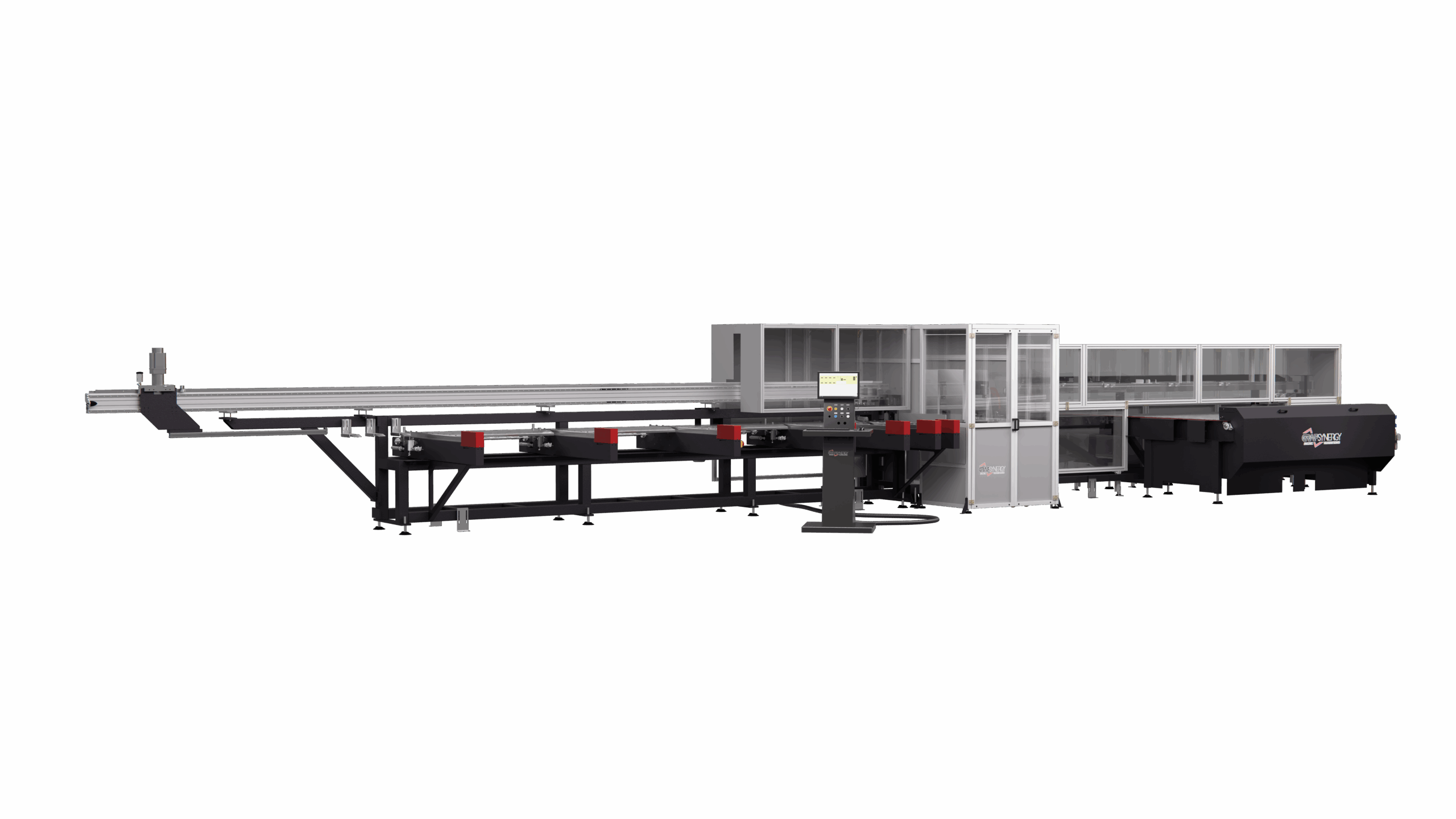

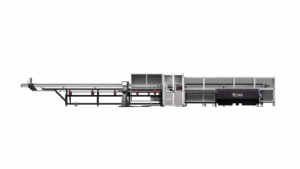

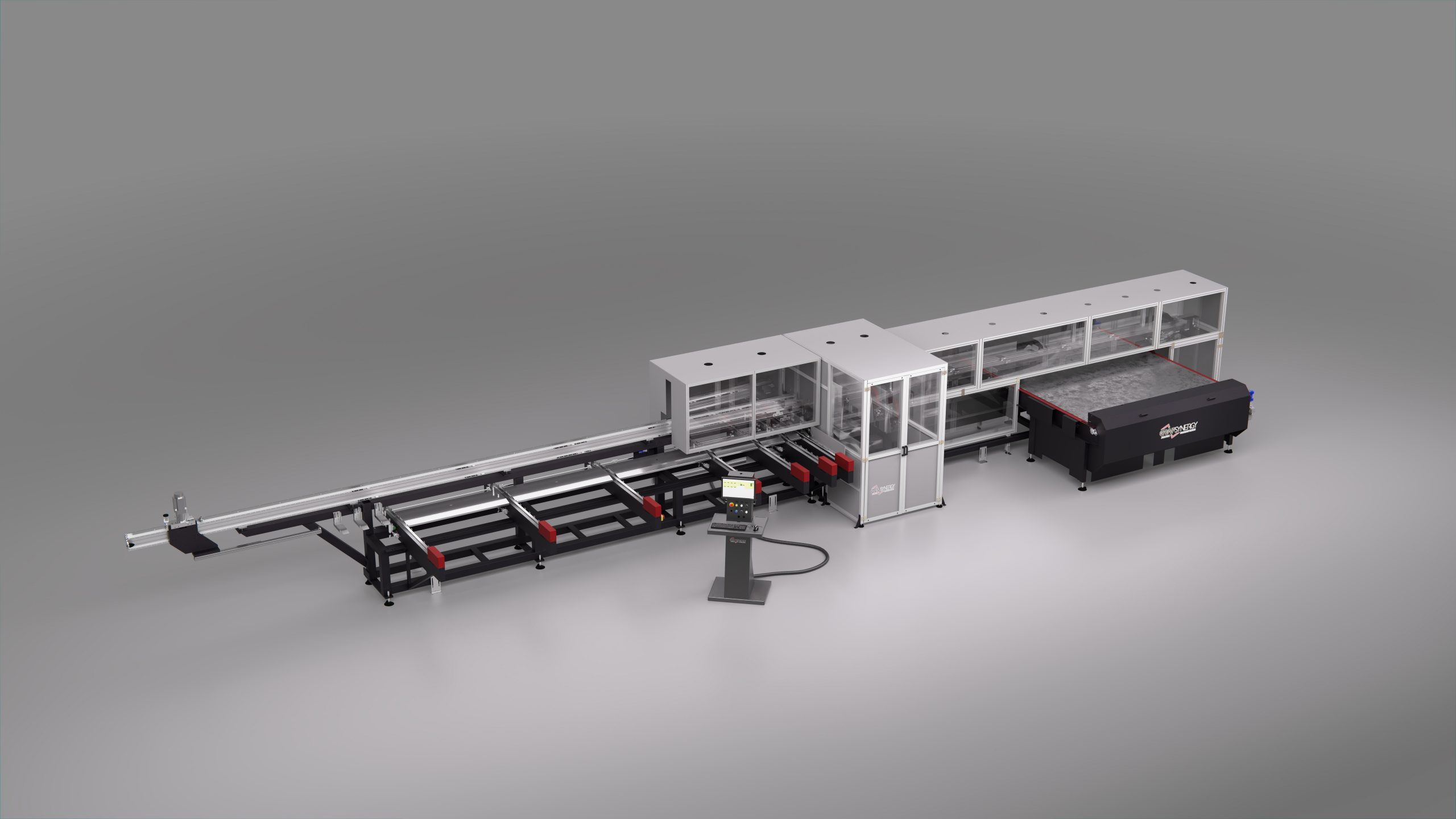

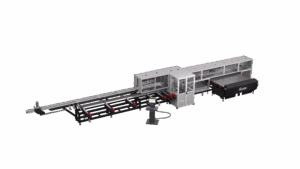

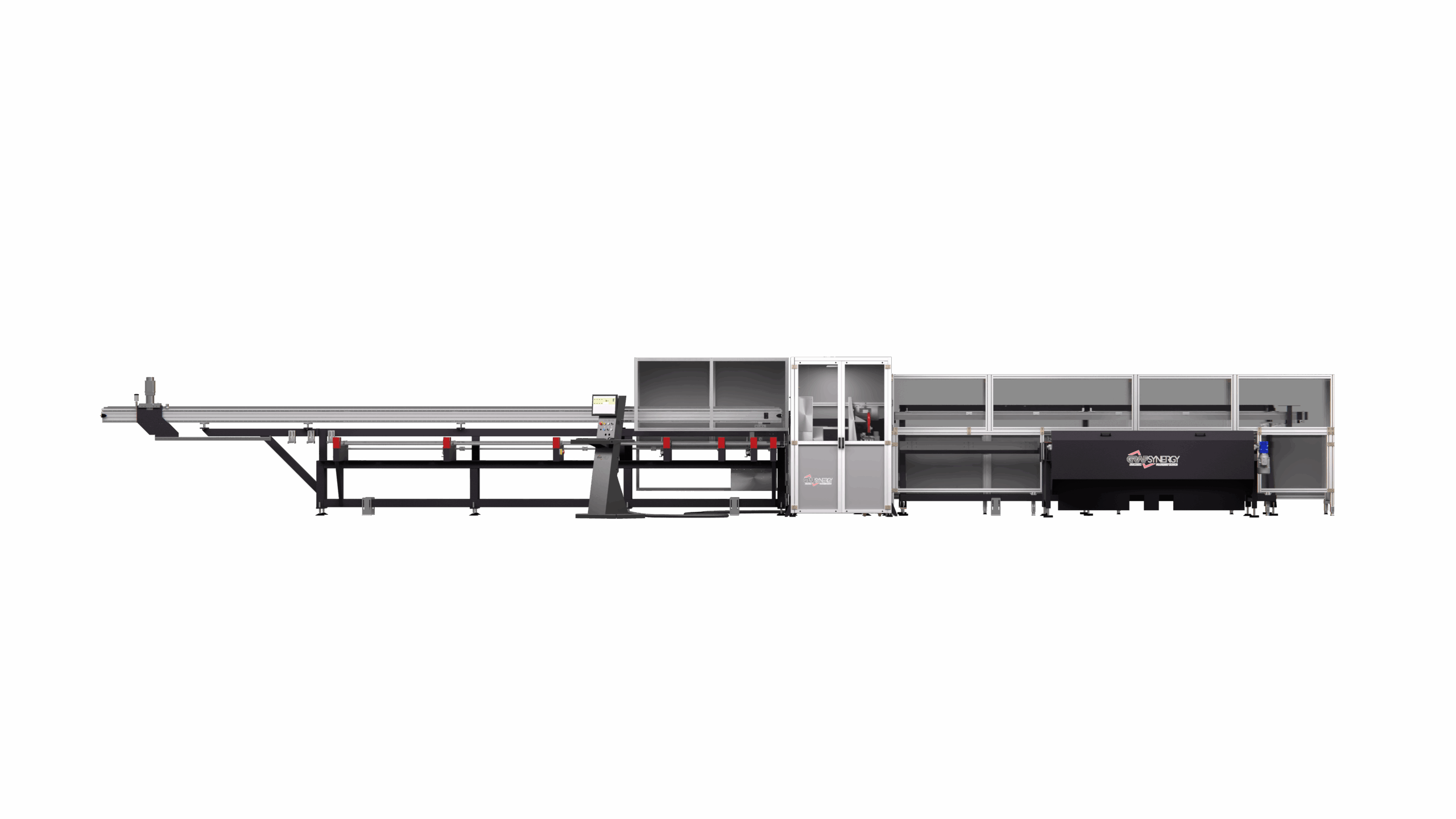

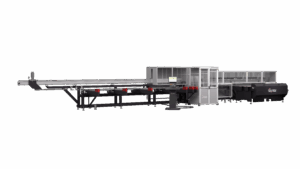

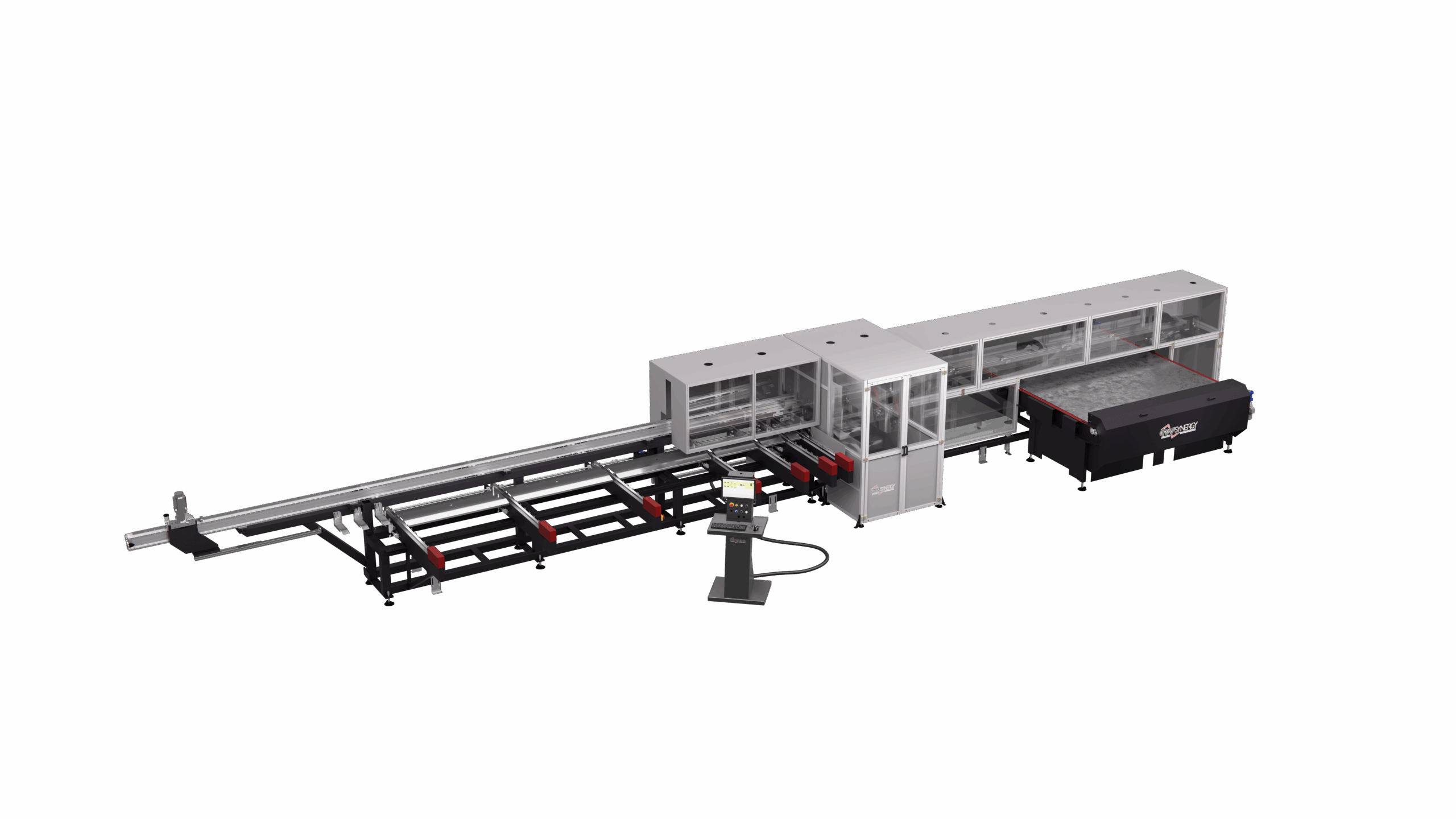

STEEL CONNECT is the high-performance CNC cutting centre designed to automate and optimise the production of internal steel reinforcements in PVC profiles. Equipped with a Ø350 mm descending blade controlled for precision, it combines accuracy, continuous production, and electronic wear monitoring to ensure perfect cuts every time.

Thanks to its compatibility with GRAF Synergy PVC cutting centres, STEEL CONNECT enables synchronized and centralised production, managed through advanced software for importing and optimising cutting lists.

With the addition of the optional CONNIE module, it transforms into an automated welding centre for metal sections, drastically reducing waste and making it economically viable to recover materials that have previously gone unused.

5 Reasons to Choose STEEL CONNECT

Fast and Reliable Cutting. Reduces execution times thanks to controlled downward movement and integrated software.
Synchronized production. Seamless processing that integrates perfectly with GRAF Synergy cutting and working centres for PVC.
Smart Waste Recovery. With the CONNIE module, you can weld metal scraps while optimising material usage.
Advanced electronic control. Speed and blade wear are electronically managed for consistent results and increased tool longevity.
Intuitive interface and flexible configurations. User-friendly software that is suitable for non-expert operators, with a wide range of available options.

Product Details

STEEL CONNECT is a fully automated CNC cutting centre, consisting of:

Loading Module:
Automated warehouse for 10 bars, loading via chains, rack pusher with brushless motor.
Cutting Module:
1 blade Ø350 mm with a constant and controlled downward motion, designed for high-precision 90° cuts.

Discharge Module:
Pneumatic extractor on a steel table with photoelectric sensors, configurable on both sides. Capacity of up to 10 pieces.

Sizes

Length: 14,900 mm

Width: 3,400 mm

Height: 2,800 mm

Weight: 2.500 kg

Performance

Up to 1,800 cuts/8h* (*depending on the type of metal and machine configuration)

Operators needed: 1

POWER SUPPLY and Consumption

Installed power: 10 kW

Voltage: 400 V

Minimum pressure: 7 bar

Air consumption per cycle: 200 Nl/min

Workable profiles (automatically)

Length: 700 – 6,000 mm

Width: 20 – 80 mm

Height: 20 – 60 mm

Possible processes

90° cut on metal reinforcements

Alignment of segments for automated welding (with CONNIE module)

Optional available

STEEL CONNECT can be equipped with a range of options to further enhance productivity, flexibility, and sustainability:
Fly Optimizer: automatic detection of leftover bars and list optimization
Blade Ø550 mm with pressure kit for profiles up to 180 mm
Electronic speed control on the controlled axis
Extended discharge table (up to 5,000 mm)
Labeling machine for automatic part identification
Extension of the cutting-discharge axis to reduce downtime
Soundproof booth
CONNIE module for welding metal sections
Laser for marking or tool inspection
