2-Axis CNC Polisher for the Automatic Finishing of PVC Frames
Impeccable cleaning of welding seams with maximum automated precision
Perfect if…
- Do you want to automate the cleaning of curbs on PVC profiles?
- You need to work with frames of different geometries and heights.
- You work in tight spaces but want maximum efficiency.
- Looking for quick programming through DXF files.
- Do you want a flexible, configurable, and connected car?
Request the technical brochure now or speak with an expert.
Impeccable cleaning of welding seams with maximum automated precision
The WP CNC 2 is a compact 2-axis CNC cleaning machine, powered by high-performance linear motors, designed to automatically carry out all external finishing operations on the weld bead of PVC profiles.
From centring to complete cleaning, all the way to the release of the finished frame, every stage is automated to ensure consistent quality, speed, and repeatability.
Available in a stand-alone version or inline integration with 4-head welding machines via an automatic rotating table, the WP CNC 2 is the ideal solution for boosting productivity without compromising the aesthetics of the frames.
5 Reasons to Choose WP CNC 2
- High-Performance Handling. The axes with linear motors ensure speed, no mechanical wear, and consistent precision.
- Flexibility for Every Profile. Configurable with numerous accessories to fit any geometry and frame combination.
- Intuitive Programming. Software with .DXF file loading: each tool has its own dedicated position, speed, and path.
- Full Connectivity. Load programs via USB or TCP-IP network; a barcode reader is available for frame recognition.
- Smart Integration. Perfectly compatible with 4-head welding machines thanks to an automatic rotating table.
Product Details
The WP CNC 2 automatically performs all external machining of the welded joint, delivering high-quality finishes and repeatability.
Sizes
Length: 2,300 mm
Width: 1,350 mm
Height: 2,350 mm
Weight: 1.200 kg
Performance
Productivity: up to 240 square meters / 8 hours (standard version)*
Operators required: 1
* Indicative data, varies based on profile type and configuration
POWER SUPPLY and Consumption
Installed power: 5.6 kW
Power Supply: 400 V
Air consumption: 440 Nl/min
Minimum operating pressure: 7 bar
Workable profiles
Profile height: 40 to 180 mm
Profile Width: 40 to 130 mm
Minimum frame dimensions (without table): 340 x 400 mm
Supported features and processes
The operations include:
- Cleaning the outside corner with a blade
- Upper/lower extraction and curves with nails
- Milling of internal and external gaskets
- Cleaning of external and internal grooved surfaces (for white profiles)
- Internal corner processing on glass stops and rebates.
- Slot milling on a reduced node

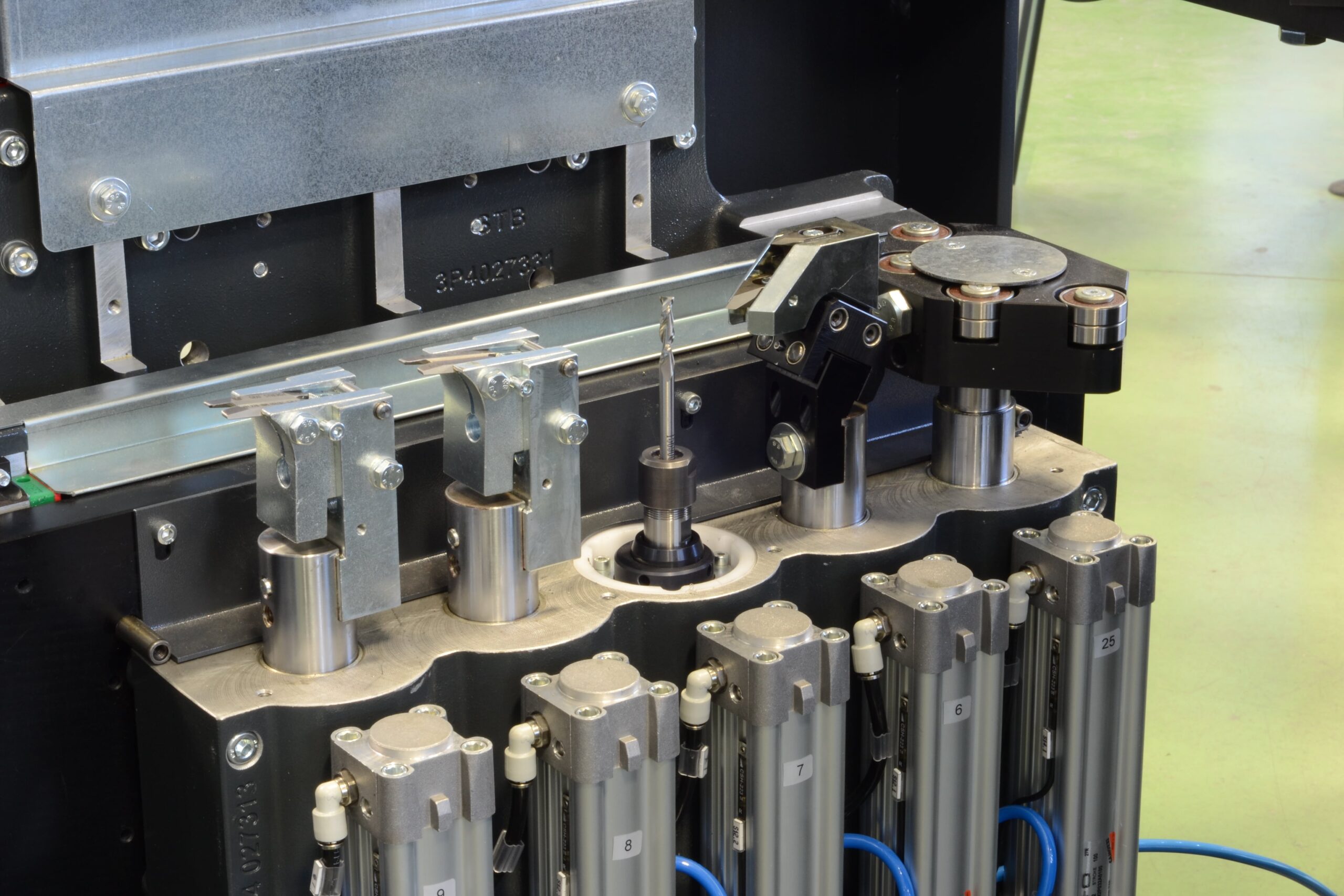

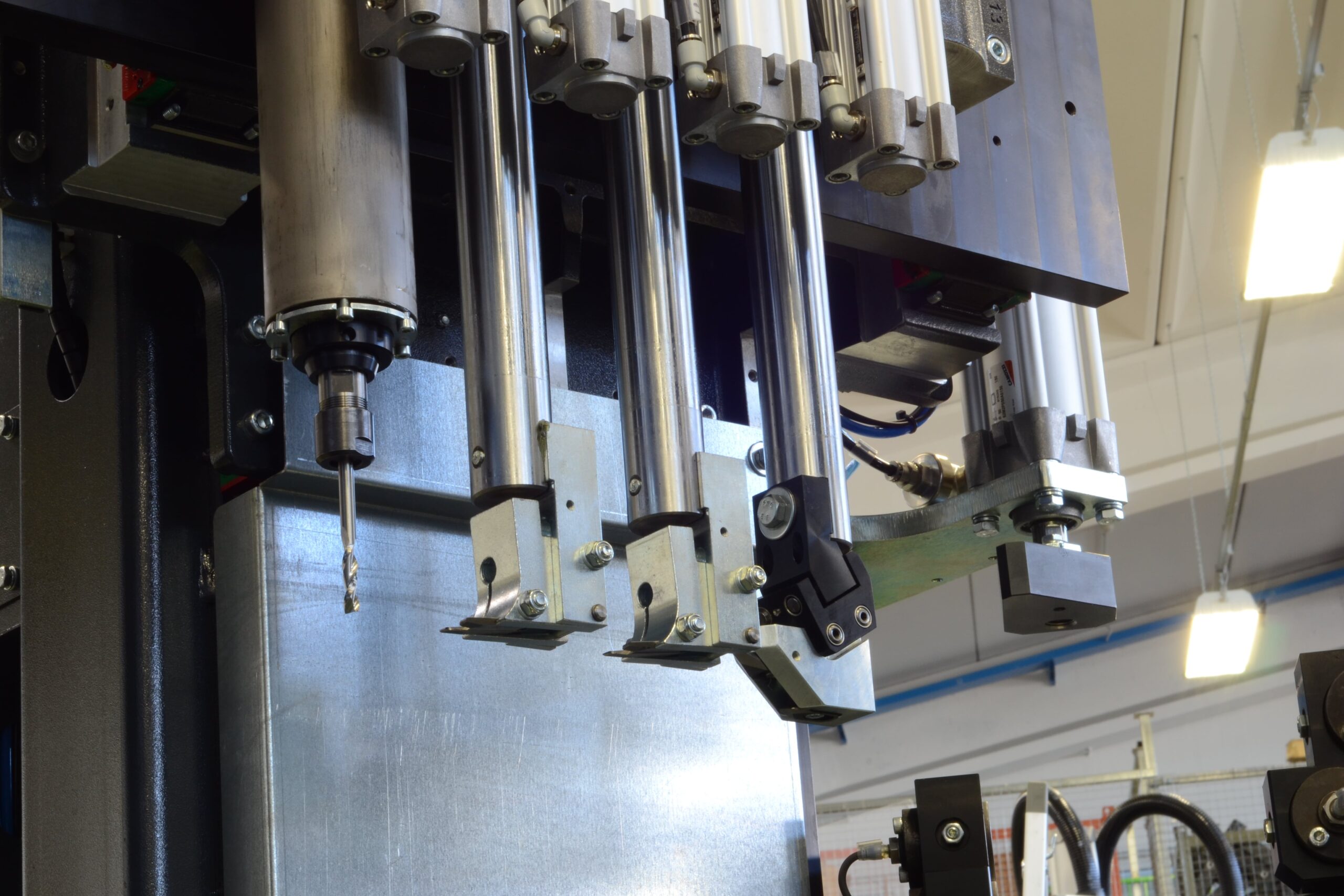

The structure is equipped with a milling disc, localized milling cutters, and dedicated tools, mounted on a centralized tool group.
Optional features and available configurations
The WP CNC 2 can be customised with:

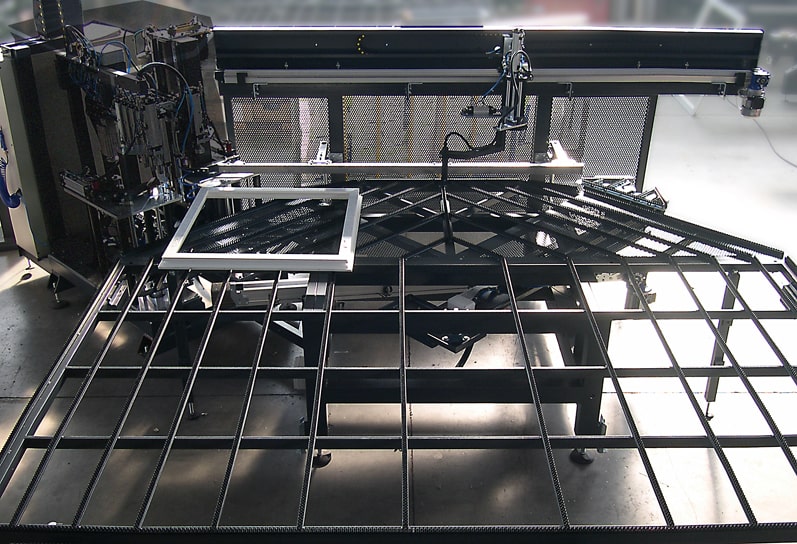

- Rotating table (top or bottom mount) up to 2,500 x 2,500 mm
- Stand-alone kit with manual table and integrated protections
- Self-centering tool sets for classic, rounded, or 90° push angles.
- Dual-tilt drilling group with automatic movement
- Flat surface kit (white/color)
- Barcode reader for frame recognition
Recognition of welded frames up to 85 combinations, further enhancing operational efficiency and customising the production flow.
Available variant:
- WP CNC 4 Axis: with an installed power of 8.0 kW and air consumption of 500 Nl/min
➝ Increased productivity of up to 320 squares / 8h (depending on the profiles)
Technology and automation
The GRAF Synergy software enables the quick creation of cleaning programmes by assigning each tool its position, speed, and trajectory. The interface is user-friendly, making it suitable for inexperienced operators.
WP CNC 2 is compatible with Industry 4.0 and is designed for:
- TCP-IP Connection
- Traceability and remote management of programs
- Integration into digital production workflows
Request your personalised consultation now
Book a demo or request the full brochure: with WP CNC 2, you can revolutionize your cleaning department, enhancing quality, speed, and automation.
