SL4-FS Double stack
CNC 4-Head Welder
An extremely fast CNC 4-head 7-axis welding machine that guarantees window manufacturers consistent operating quality and is capable of welding two squares at the same time.
Perfect for:
- Maximising productivity to meet high-volume production demands.
- Exceptional welding stability and quality, even for large and challenging profiles.
- Reduced setup times and enhanced operational efficiency thanks to the quick-change system.
- Specifically designed for welding sloped sill frames, ensuring maximum precision and ease of operation.
Request the technical brochure now or talk to an expert.
Constant Quality Over Time

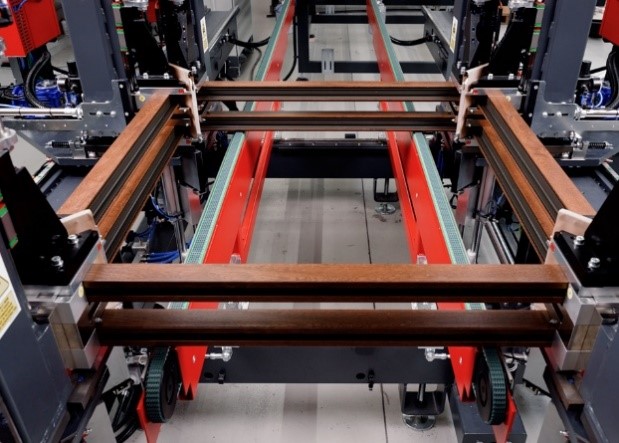

The machine automatically carries out all operations, including positioning, melting, and joining the PVC bars to their final position. Once completed, it automatically releases the welded squares onto conveyor belts that transport them to the cooling and cleaning area.
The accuracy of the positioning of the welding heads is guaranteed by servo-driven positioning axes, a robust machinery structure, and high-precision linear guides.
5 Reasons to Choose SL4-FS
- High-speed welding cycle: production increase of up to 50% due to the controlled axis.
- Robust clamping with extra tall capacity for up to 420 mm / 16.54 in (including fixtures).
- Quick-change system for welding fixtures and heat plates.
- Ergonomic loading with adjustable front heads.
- Designed for welding sloped sill frames.
Product Details
The software is highly intuitive and features straightforward menus, providing operators with all the necessary information for correctly configuring the welding parameters. The machine is equipped with a PC-based user interface and can be operated using production batch files, scanner information, or even in manual mode.
Machine dimensions
Length: 5,800 mm
Width: 5,300 mm
Height: 84.65 inches
Weight: 6,393 lbs
Power Supply and Consumption
Installed power: 20 kW
Voltage: 400 V
Air consumption per cycle: 140 NI/min
Operating pressure: 7 bar
Operational Features
Composition: 4 CNC heads Quad

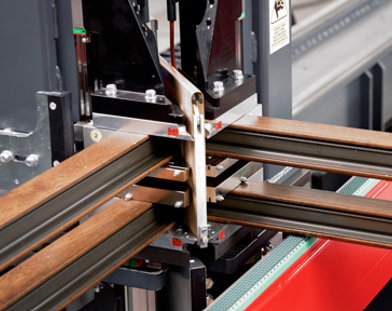

Welding Types: Double Stack Welding Heads.
Operating Modes: Horizontal and simultaneous welding of all four corners
Operators needed: 1
Working dimensions
Weldable profile:
- Height: 1.4 – 8.7 inches
- Width: 35 – 120 mm (at 90°)
Weldable External Dimensions:
- Maximum: 3,200 x 2,800 mm
- Minimum: 11 x 11 inches
Optional
Upon request, the machine can be equipped with:
- Sloped Sill Welding Capability for welding mismatched or equal-offset sash systems.
- Outfeed cooling table.
- In-line connection with GRAF Synergy corner cleaners for air conditioning in electrical cabinets.
- Barcode Scanner
Get in touch with us to see if the SL4-FS is the right solution for your production.
